980 HDMI Protocol Analyzer User Guide

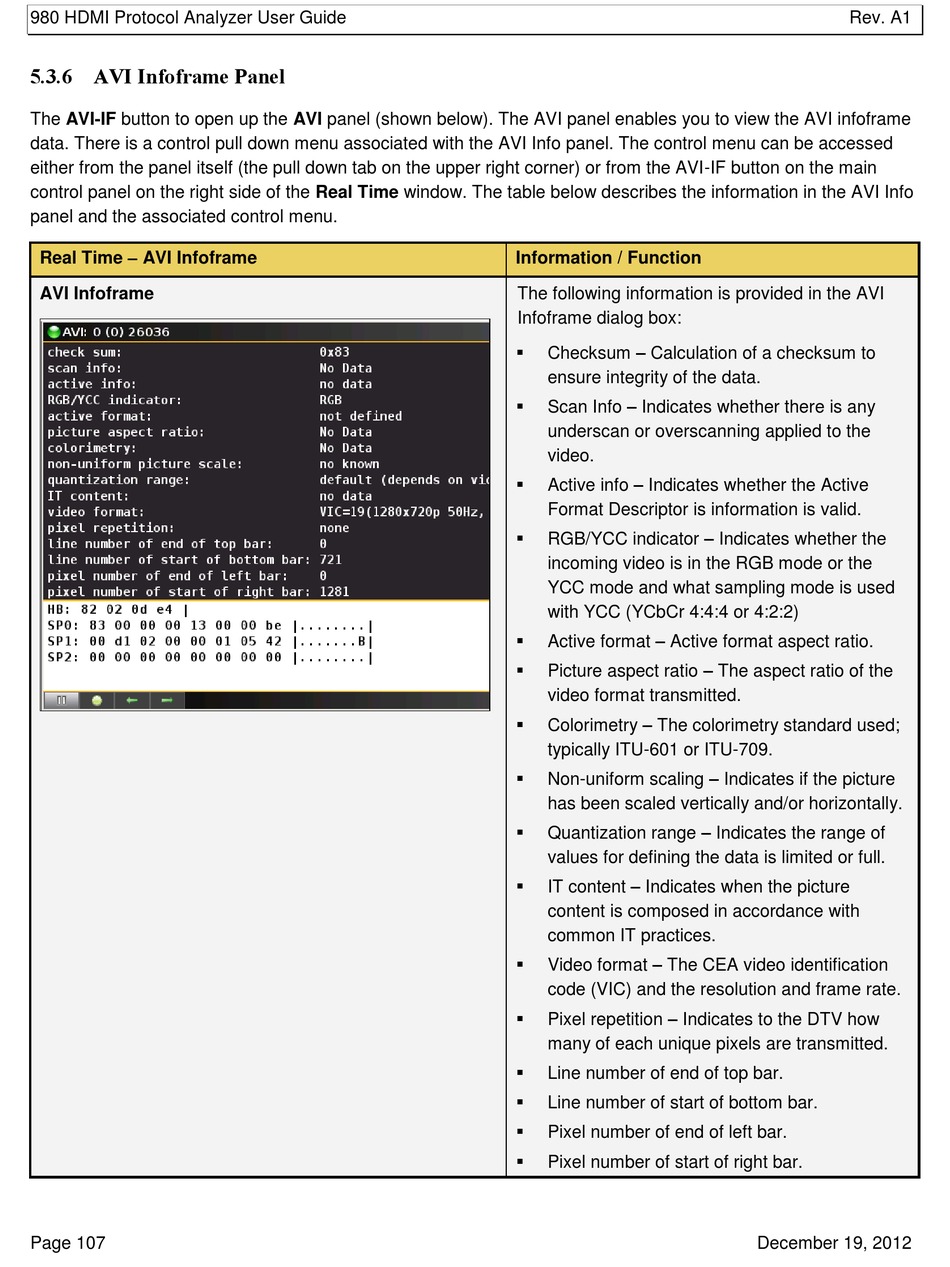

5.3.6 AVI Infoframe Panel
The AVI-IF button to open up the AVI panel (shown below). The AVI panel enables you to view the AVI infoframe
data. There is a control pull down menu associated with the AVI Info panel. The control menu can be accessed
either from the panel itself (the pull down tab on the upper right corner) or from the AVI-IF button on the main
control panel on the right side of the Real Time window. The table below describes the information in the AVI Info
panel and the associated control menu.
Real Time – AVI Infoframe
AVI Infoframe
Page 107
Information / Function
The following information is provided in the AVI
Infoframe dialog box:
 Checksum – Calculation of a checksum to
ensure integrity of the data.
 Scan Info – Indicates whether there is any
underscan or overscanning applied to the
video.
 Active info – Indicates whether the Active
Format Descriptor is information is valid.
 RGB/YCC indicator – Indicates whether the
incoming video is in the RGB mode or the
YCC mode and what sampling mode is used
with YCC (YCbCr 4:4:4 or 4:2:2)
 Active format – Active format aspect ratio.
 Picture aspect ratio – The aspect ratio of the
video format transmitted.
 Colorimetry – The colorimetry standard used;
typically ITU-601 or ITU-709.
 Non-uniform scaling – Indicates if the picture
has been scaled vertically and/or horizontally.
 Quantization range – Indicates the range of
values for defining the data is limited or full.
 IT content – Indicates when the picture
content is composed in accordance with
common IT practices.
 Video format – The CEA video identification
code (VIC) and the resolution and frame rate.
 Pixel repetition – Indicates to the DTV how
many of each unique pixels are transmitted.

Line number of end of top bar.

Line number of start of bottom bar.

Pixel number of end of left bar.

Pixel number of start of right bar.
