980 HDMI Protocol Analyzer User Guide

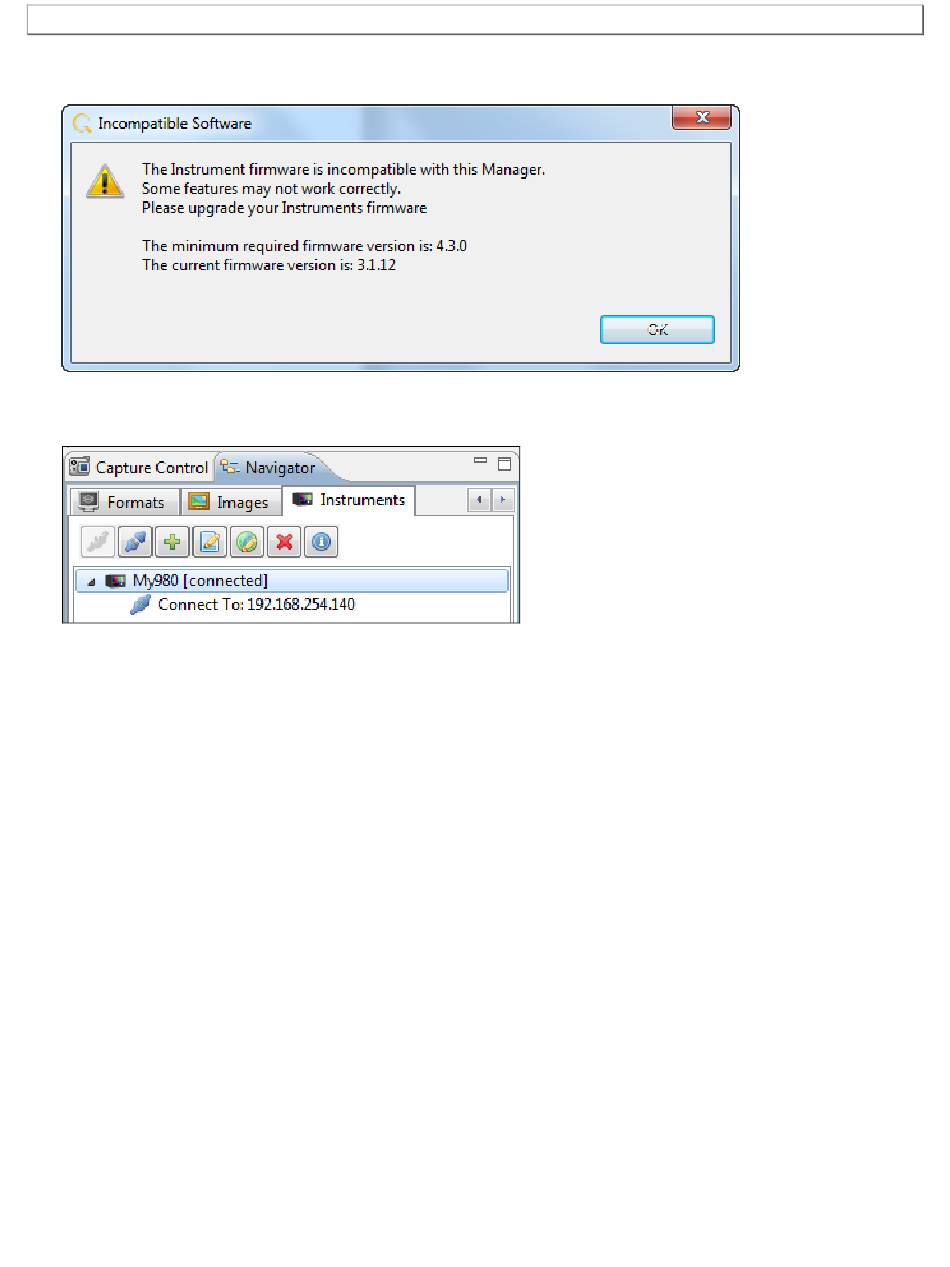

Note: If you receive an "Incompatible Software" error dialog (below); this means that you should upgrade your
980 with the lastest firmware.
The 980 with the IP address you entered appears on the list in the 980 Navigator panel (below). The 980 GUI
Manager application will automatically connect to the 980 once you add the 980 to the application.
3. (If not already connected) Connect to the 980 using either the Connect icon or the Connect item on the right
click menu as shown in the screen below. Note that you can also double click on the 980 in the Instrument
dialog box in order to initiate a connection.
