980 HDMI Protocol Analyzer User Guide

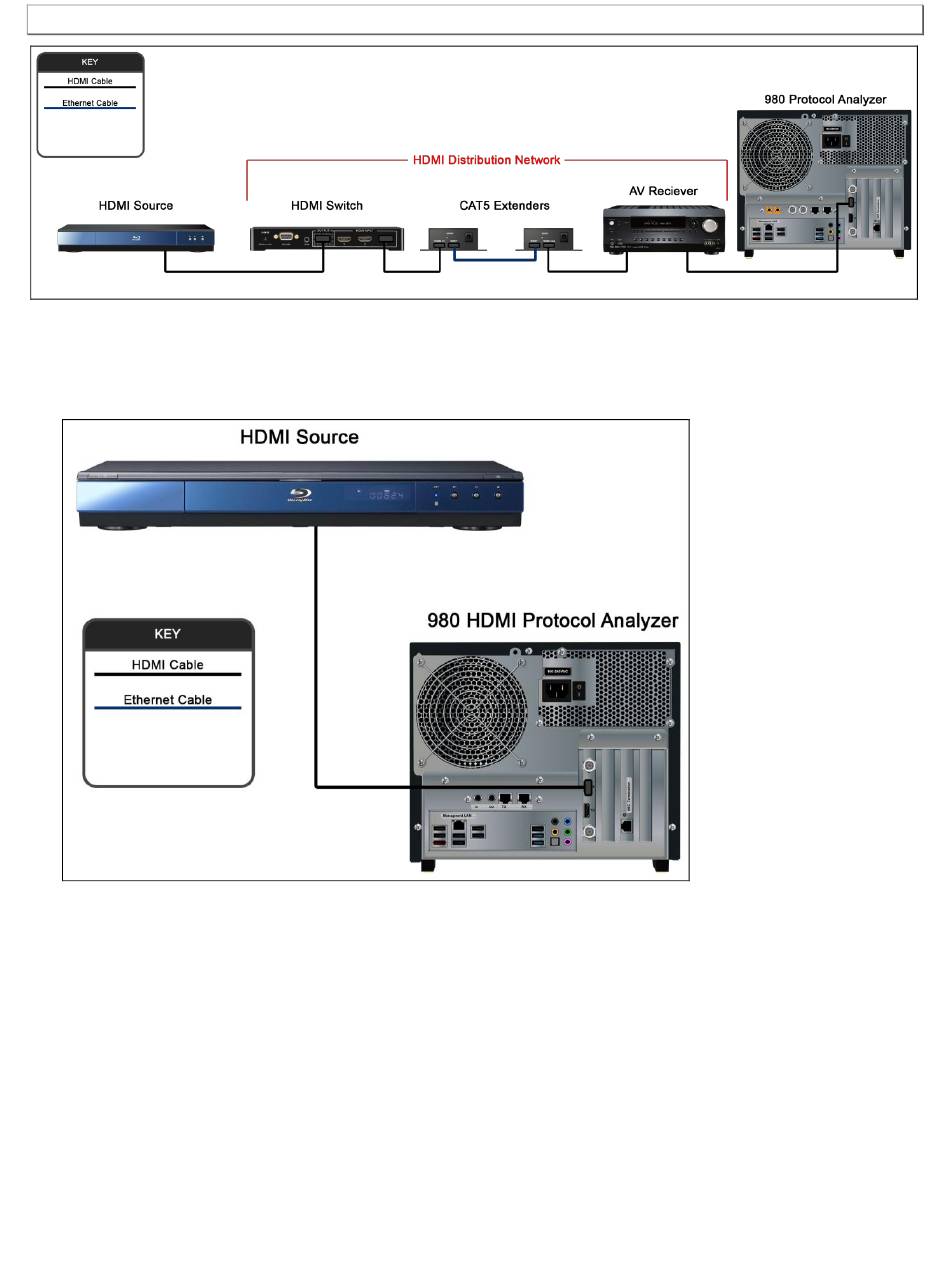

Connection for running pixel error test on HDMI distribution network
Note: If you are testing the source or cable the test setup is shown below:
Connection for HDMI source analysis
From the Real Time window select the Tools menu as shown below:
Page 146
Rev. A1
December 19, 2012
