Quantum Data Gen 2 980 User Manual page 139

980 HDMI Protocol Analyzer User Guide
1. Make sure the 980 GUI Manager is installed on your PC. Use the procedures at
980 GUI Manager.

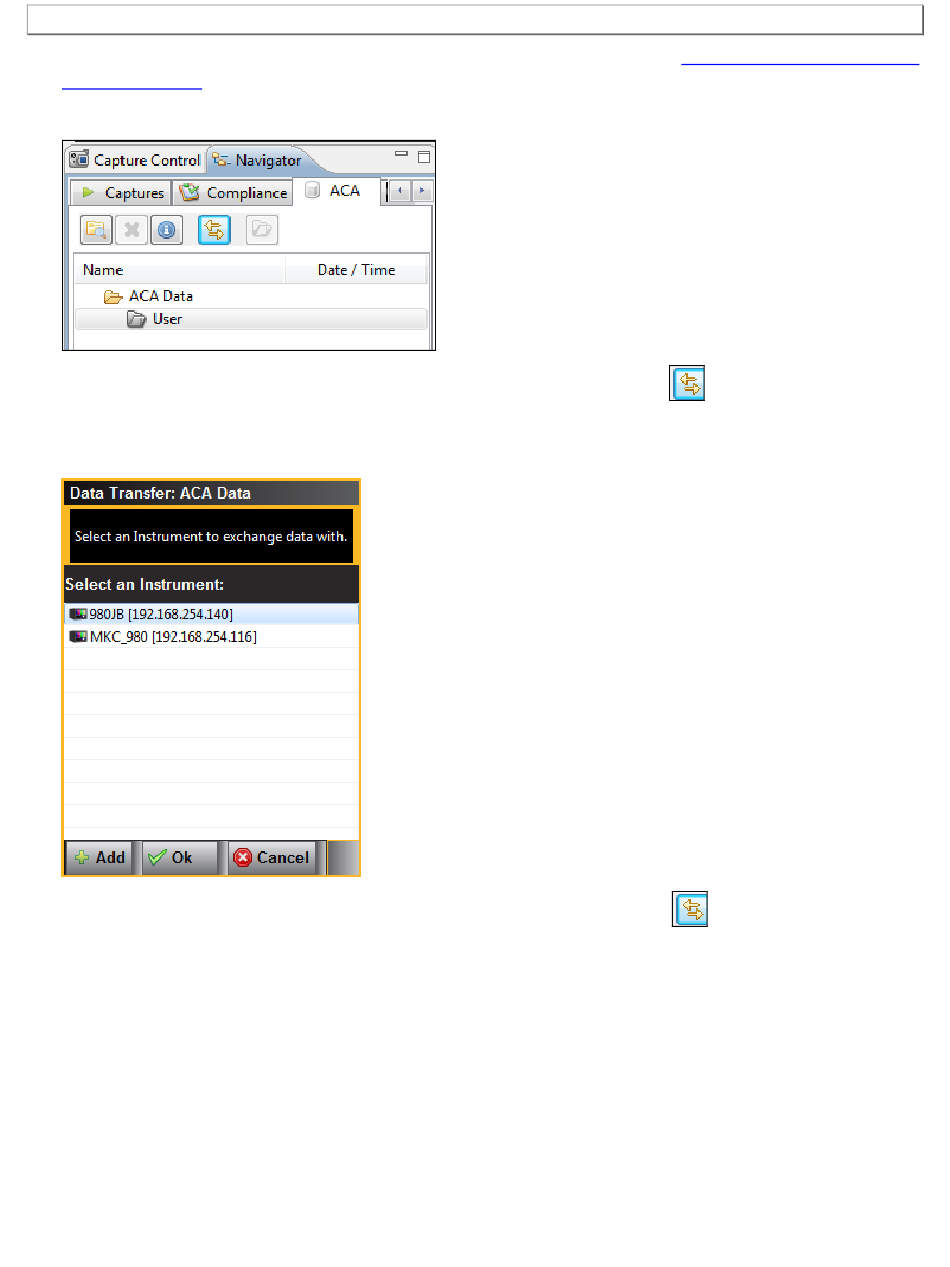

2. Access the ACA data from the Navigator panel and highlight a directory as shown below.
3. Access the Data Transfer utility by double clicking on the Transfer Data icon
The Data Transfer: ACA Data dialog box appears (below) enabling you to select the 980 that you want to
transfer data from. Select the desired 980 and click OK. The Data Transfer: ACA Data panel will appear.
4. Access the Data Transfer panel by double clicking on the Transfer Data icon
5. The Data Transfer panel appears in context with the ACA files on the 980 (Instrument) under the Instrument
Files available as shown below.
