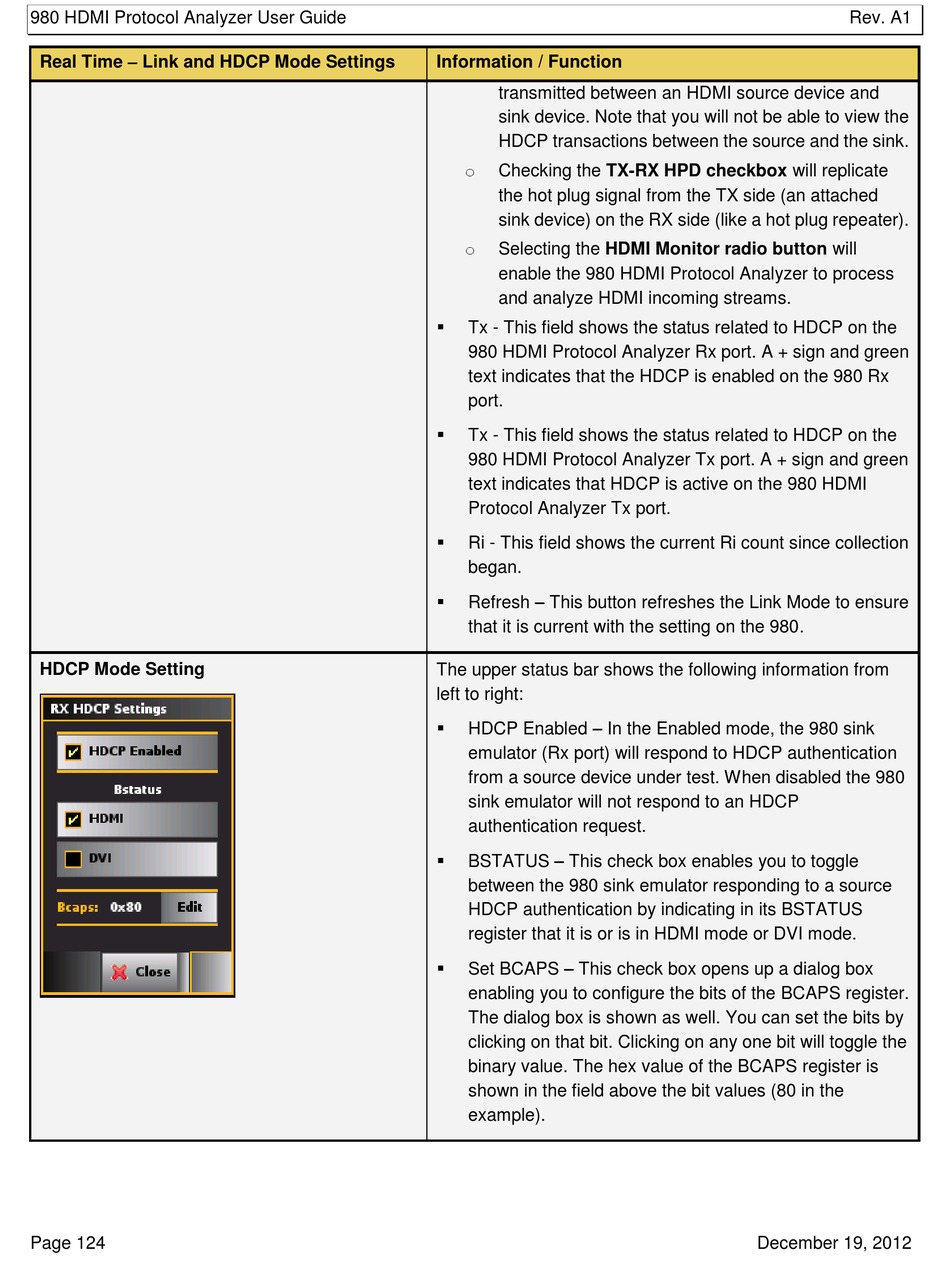

980 HDMI Protocol Analyzer User Guide
Real Time – Link and HDCP Mode Settings
HDCP Mode Setting
Page 124
Information / Function
transmitted between an HDMI source device and
sink device. Note that you will not be able to view the
HDCP transactions between the source and the sink.
o
Checking the TX-RX HPD checkbox will replicate
the hot plug signal from the TX side (an attached
sink device) on the RX side (like a hot plug repeater).
o
Selecting the HDMI Monitor radio button will
enable the 980 HDMI Protocol Analyzer to process
and analyze HDMI incoming streams.

Tx - This field shows the status related to HDCP on the
980 HDMI Protocol Analyzer Rx port. A + sign and green
text indicates that the HDCP is enabled on the 980 Rx
port.

Tx - This field shows the status related to HDCP on the
980 HDMI Protocol Analyzer Tx port. A + sign and green
text indicates that HDCP is active on the 980 HDMI
Protocol Analyzer Tx port.

Ri - This field shows the current Ri count since collection
began.
Refresh – This button refreshes the Link Mode to ensure

that it is current with the setting on the 980.
The upper status bar shows the following information from
left to right:
 HDCP Enabled – In the Enabled mode, the 980 sink
emulator (Rx port) will respond to HDCP authentication
from a source device under test. When disabled the 980
sink emulator will not respond to an HDCP
authentication request.
 BSTATUS – This check box enables you to toggle
between the 980 sink emulator responding to a source
HDCP authentication by indicating in its BSTATUS
register that it is or is in HDMI mode or DVI mode.
 Set BCAPS – This check box opens up a dialog box
enabling you to configure the bits of the BCAPS register.
The dialog box is shown as well. You can set the bits by
clicking on that bit. Clicking on any one bit will toggle the
binary value. The hex value of the BCAPS register is
shown in the field above the bit values (80 in the
example).
