980 HDMI Protocol Analyzer User Guide
Rev. A1

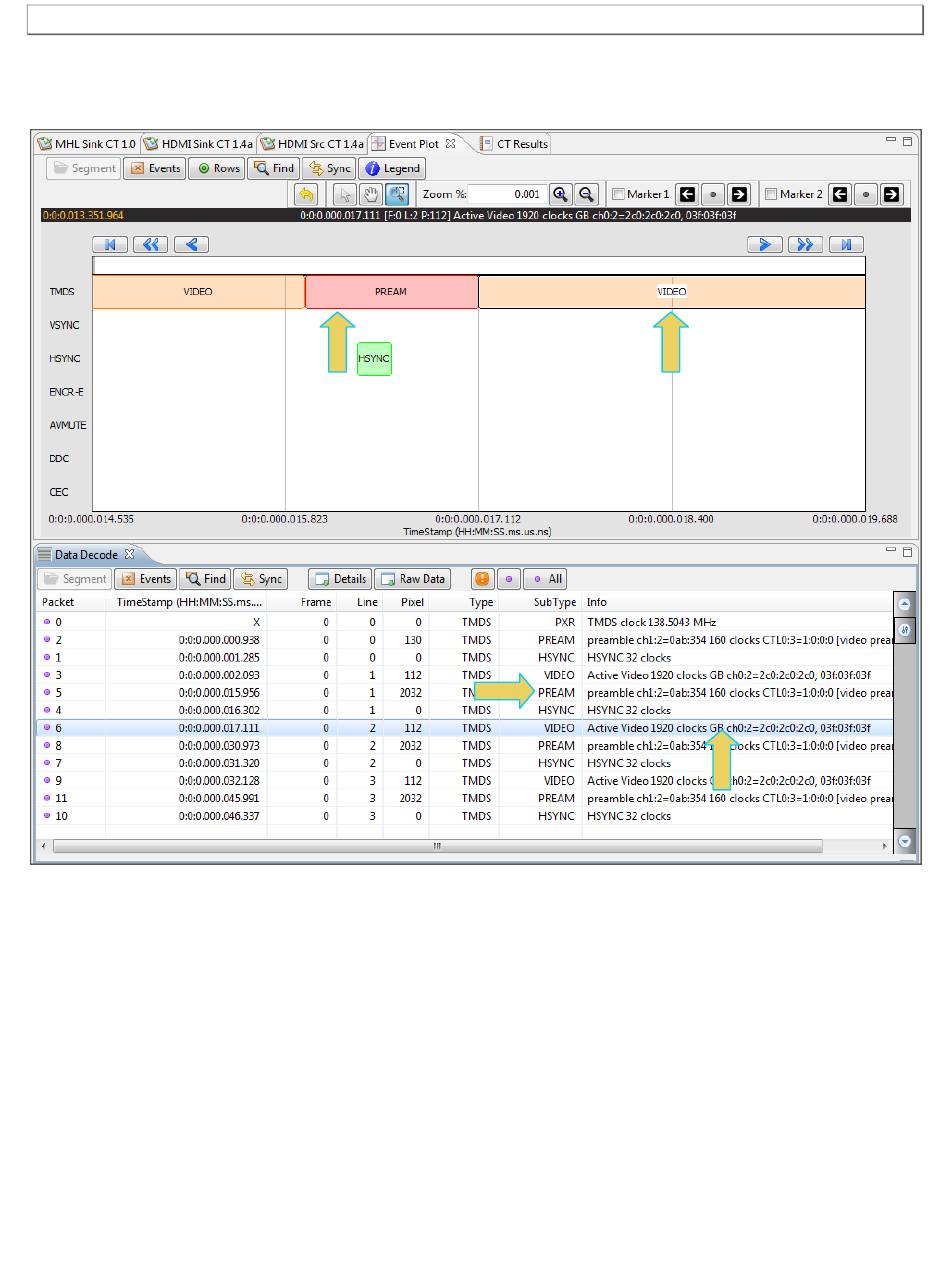

The screen example below shows data captured using the Protocol Analysis mode. The preamble data is shown
as a distinct data type in both the Event Plot and the Data Decode. The guard band data is shown as part of the
Video data period in the example.
