980 HDMI Protocol Analyzer User Guide

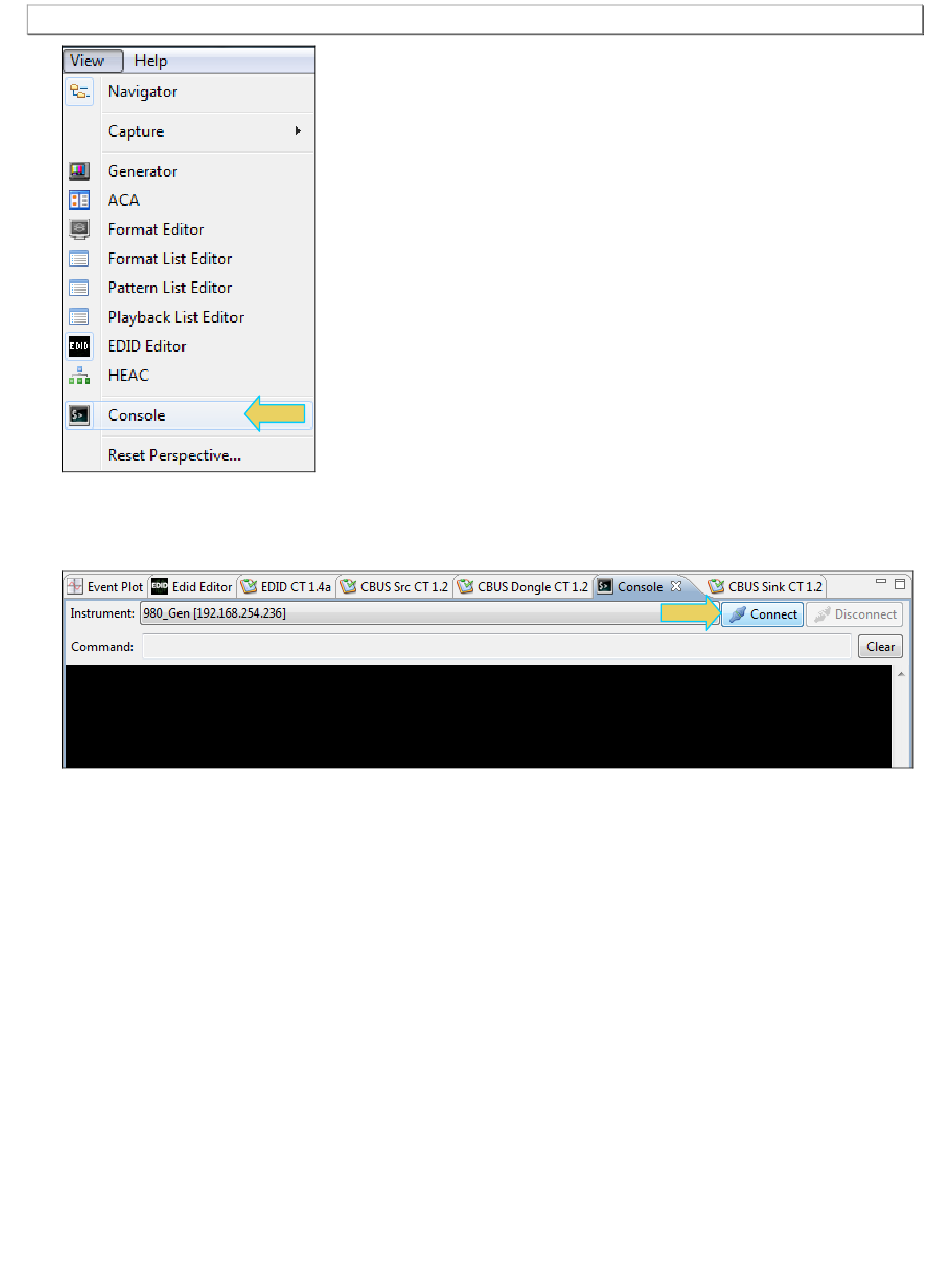

2. You will first have to connect to the 980 HDMI Protocol Analyzer that you are using. You do this through the
Connect button on the top right of the Console panel as shown below. Note that the IP address of the device is
shown on the left.
3. You will first have to connect to the 980 HDMI Protocol Analyzer that you are using. You do this through the
Connect button on the top right of the Console panel as shown below. Note that the IP address of the device is
shown on the left. When you click on the Connect button you will see an indication that you are connected
along with the pscope prompt as shown below.
