980 HDMI Protocol Analyzer User Guide

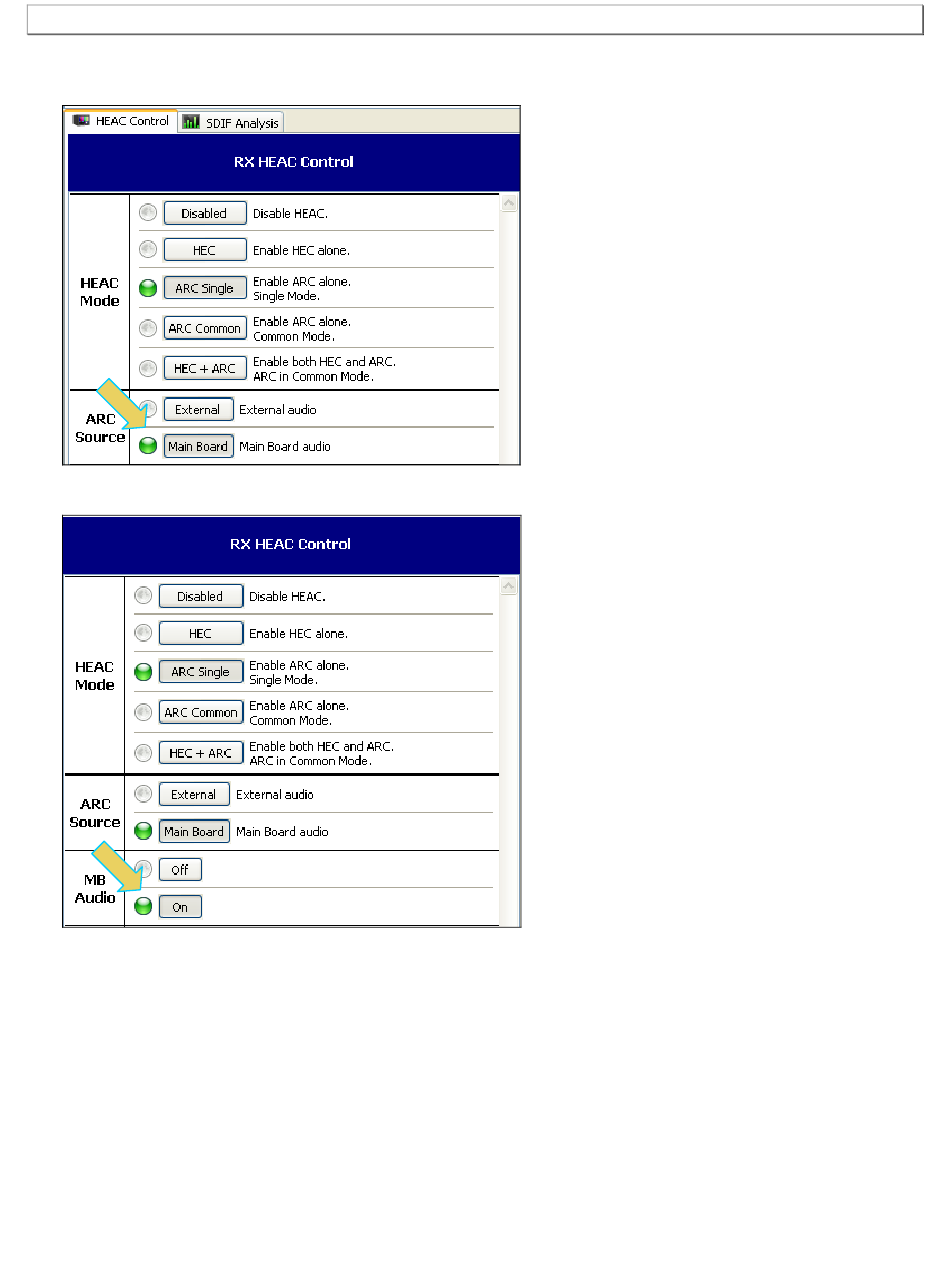

4. When using the 980 HDMI Protocol Analyzer's internal SPDIF source, select the appropriate button in the RX
HEAC Control – ARC Source subpanel as shown below.
You will also have to enable audio on the 980 Main Board as shown below:
5. When using an external SPDIF source, select the appropriate button in the RX HEAC Control – ARC Source
subpanel as shown below.
Page 261
Rev. A1
December 19, 2012
