980 HDMI Protocol Analyzer User Guide
8.13.2 Viewing Protocol Analysis captures through the Data Decode panel
This subsection provides procedures for viewing the captured data taken using the Protocol Analysis capture mode
through the Data Decode and Event Plot panels in the 980 GUI Manager.
To view captured data through the Data Decode panel:
1. To view the Protocol Analysis data transactions on the Data Decode and Event Plot panels, activate the Data
Decode and Event Plot tabs.

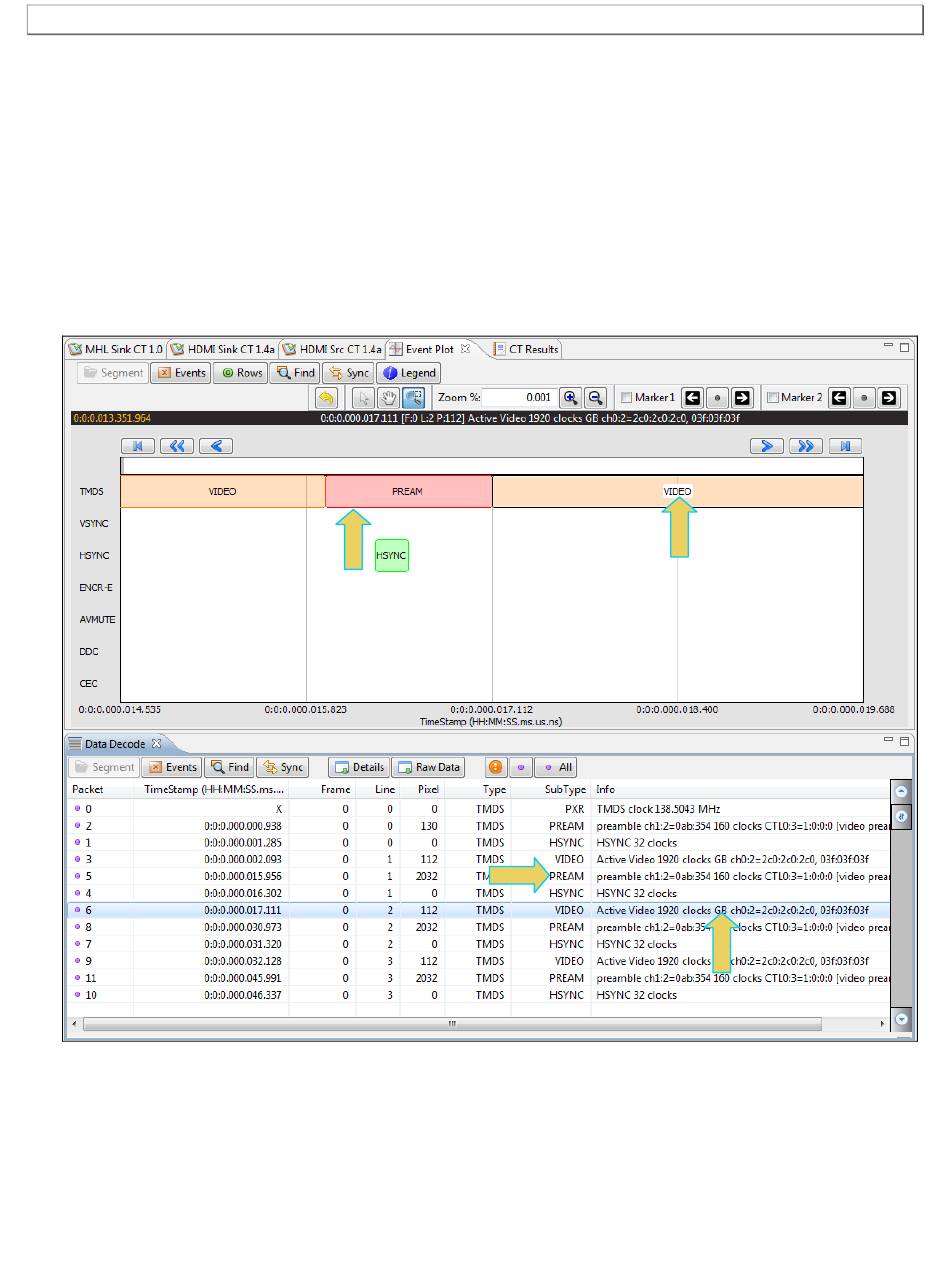

The screen example below shows data captured using the Protocol Analysis mode. The preamble data is
shown as a distinct data type in both the Event Plot and the Data Decode. The guard band data is shown as
part of the Video data period in the example.
8.13.3 Filtering the data in the Data Decode panel
The procedures below describe how to filter the data in the Data Decode panel. You use the panel on the right that
is adjacent to the Data Decode panel to apply filtering on the data displayed on the Data Decode panel.
To apply filters to the data:
