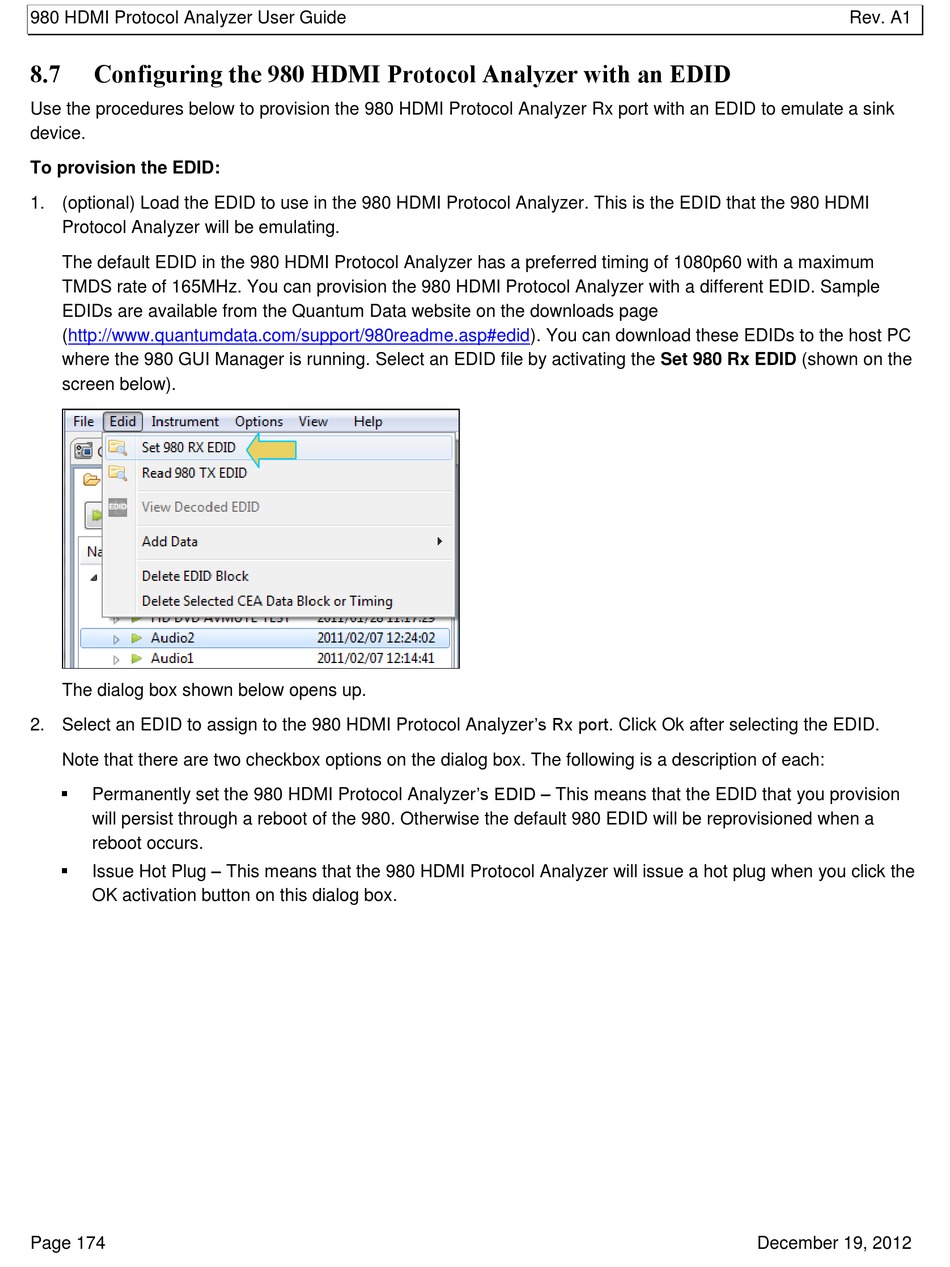

Configuring the 980 HDMI Protocol Analyzer with an EDID
Use the procedures below to provision the 980 HDMI Protocol Analyzer Rx port with an EDID to emulate a sink
device.
To provision the EDID:
1. (optional) Load the EDID to use in the 980 HDMI Protocol Analyzer. This is the EDID that the 980 HDMI
Protocol Analyzer will be emulating.
The default EDID in the 980 HDMI Protocol Analyzer has a preferred timing of 1080p60 with a maximum
TMDS rate of 165MHz. You can provision the 980 HDMI Protocol Analyzer with a different EDID. Sample
EDIDs are available from the Quantum Data website on the downloads page
(http://www.quantumdata.com/support/980readme.asp#edid). You can download these EDIDs to the host PC
where the 980 GUI Manager is running. Select an EDID file by activating the Set 980 Rx EDID (shown on the
screen below).
The dialog box shown below opens up.
2. Select an EDID to assign to the 980 HDMI Protocol Analyzer's Rx port. Click Ok after selecting the EDID.
Note that there are two checkbox options on the dialog box. The following is a description of each:
Permanently set the 980 HDMI Protocol Analyzer's EDID – This means that the EDID that you provision
will persist through a reboot of the 980. Otherwise the default 980 EDID will be reprovisioned when a
reboot occurs.
Issue Hot Plug – This means that the 980 HDMI Protocol Analyzer will issue a hot plug when you click the
OK activation button on this dialog box.
