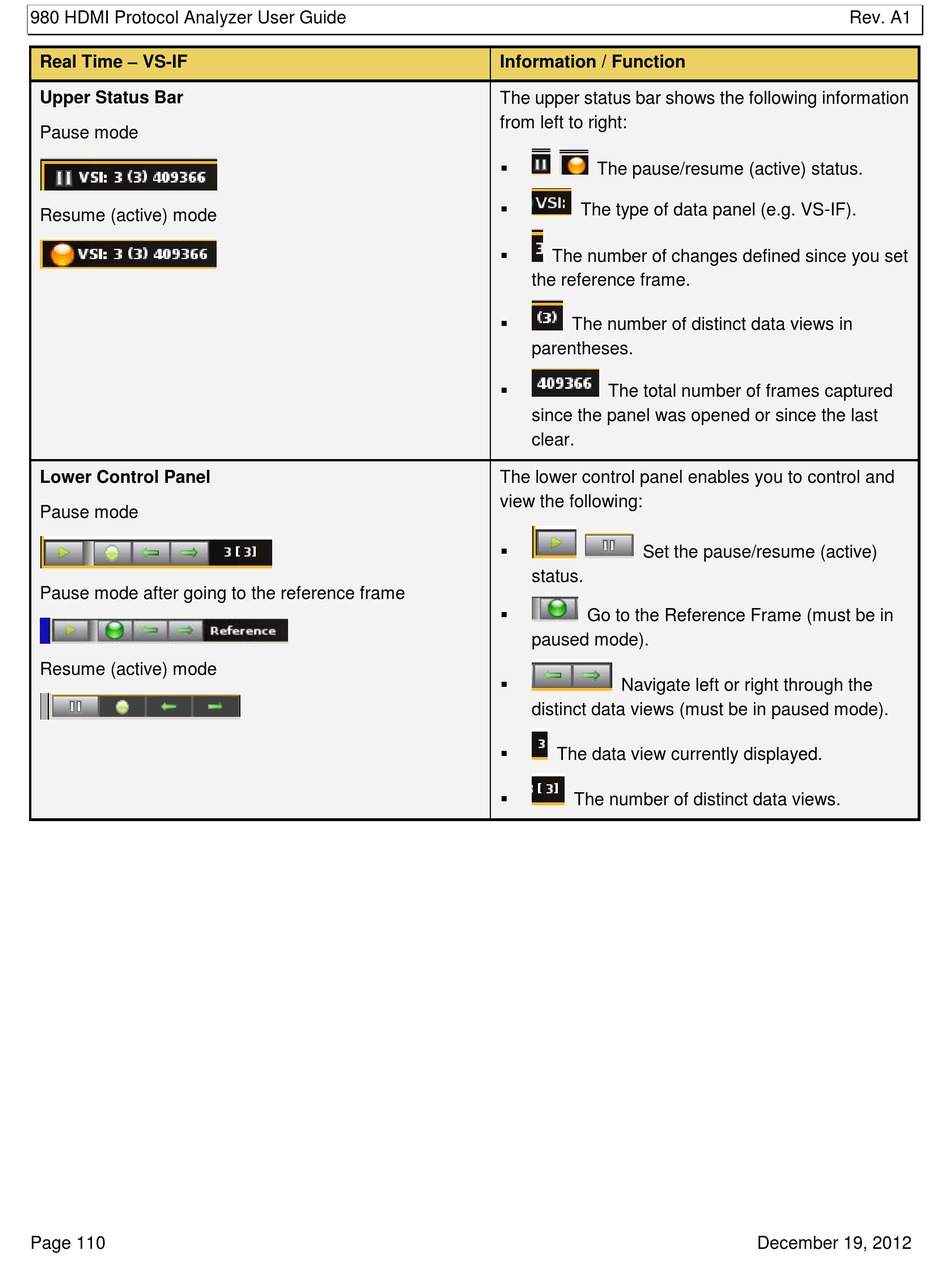

Real Time – VS-IF
Upper Status Bar
Pause mode
Resume (active) mode
Lower Control Panel
Pause mode
Pause mode after going to the reference frame
Resume (active) mode
Page 110
Information / Function
The upper status bar shows the following information
from left to right:

The pause/resume (active) status.

The type of data panel (e.g. VS-IF).

The number of changes defined since you set
the reference frame.

The number of distinct data views in
parentheses.

The total number of frames captured
since the panel was opened or since the last
clear.
The lower control panel enables you to control and
view the following:

Set the pause/resume (active)
status.

Go to the Reference Frame (must be in
paused mode).

Navigate left or right through the
distinct data views (must be in paused mode).

The data view currently displayed.

The number of distinct data views.
