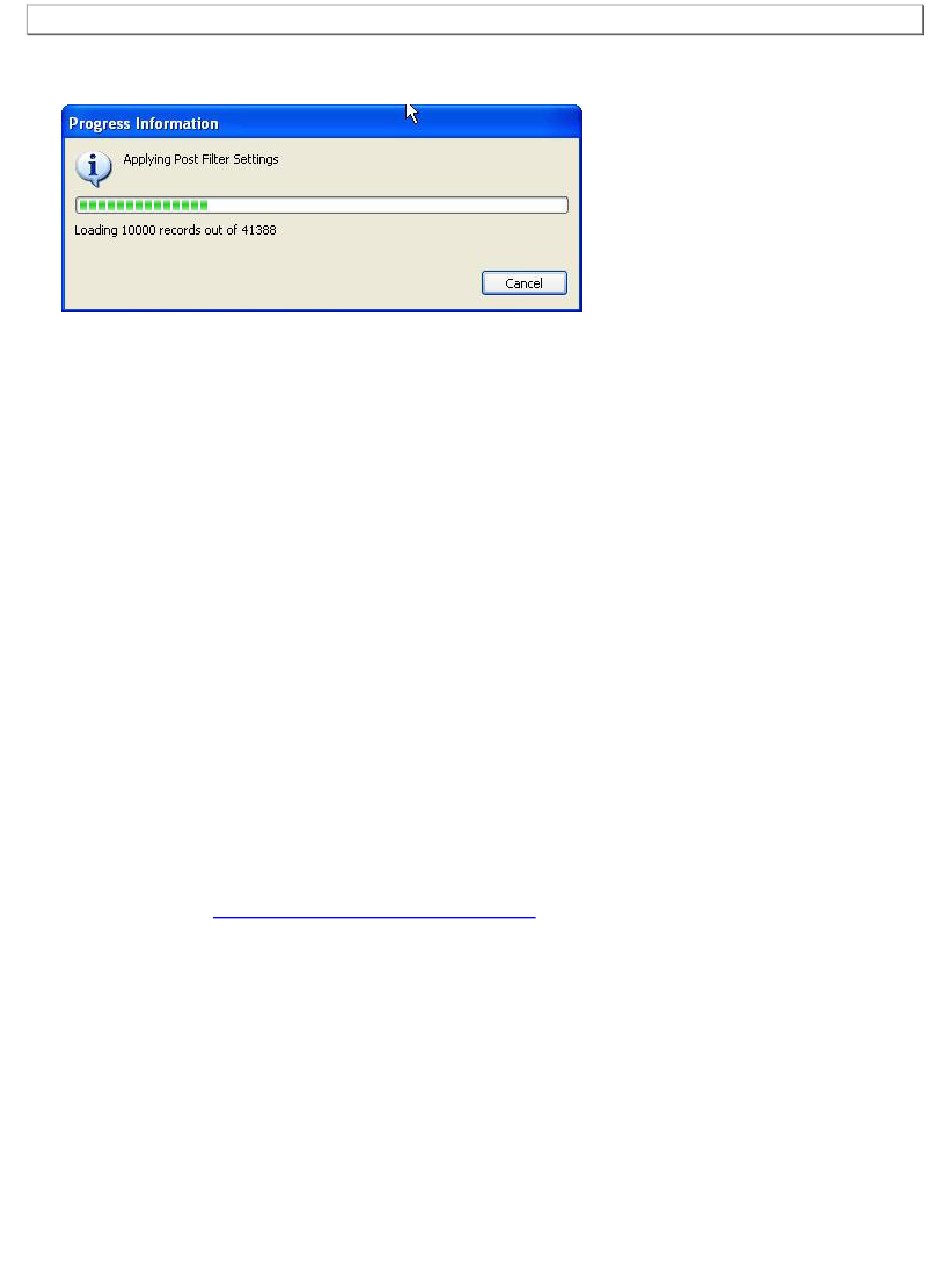

A dialog box will display indicating the progress in loading the capture (sample shown below). Once the data is
fully loaded it is displayed through the 980 GUI Manager in both the Event Plot and Data Decode panels.

11.2 Importing Capture Files from other 980 Systems

This subsection provides procedures on loading a previously captured file and also procedures for importing
captured files taken from another 980 HDMI Protocol Analyzer.
The captured data from the 980 HDMI Protocol Analyzer is portable. You can open up captured files that have
been taken by any other 980 HDMI Protocol Analyzer at any other location. You do not need a 980 HDMI Protocol
Analyzer to examine captured files taken elsewhere; you just need the 980 GUI Manager. For example, you may
wish to send a set of captured files to a colleague at a different location and this colleague may not have a 980
Protocol Analyzer. In that case, the colleague can simply download the 980 GUI Manager from the Quantum Data
website to view the captured files that you sent them. Of course it may be the case that your colleague is sending
you a set of captured files as well. Typically, the file would be posted on an FTP site as a zip file. You would then
need to download the file, unzip it and then access it by browsing utilities provided in the 980 GUI Manager.
In some cases you may wish to put a series of captured files in a 980 GUI Manager local directory for easy access.
In this case move these files to the proper 980 GUI Manager directory. Procedures for this are provided below as
well.
11.2.1 Importing Capture files
Use the following procedures to import a capture. The first procedure describes how to install the 980 GUI
Manager on your PC. The second procedure describes how to import the capture.
To Install the 980 GUI Manager on your PC:
1. Download the 980 GUI Manager from the Quantum Data downloads page to your PC. The link to the
downloads page is: http://www.quantumdata.com/downloads.
2. Start the installation by double-clicking on your downloaded *.msi file.
The Setup Wizard will launch.
