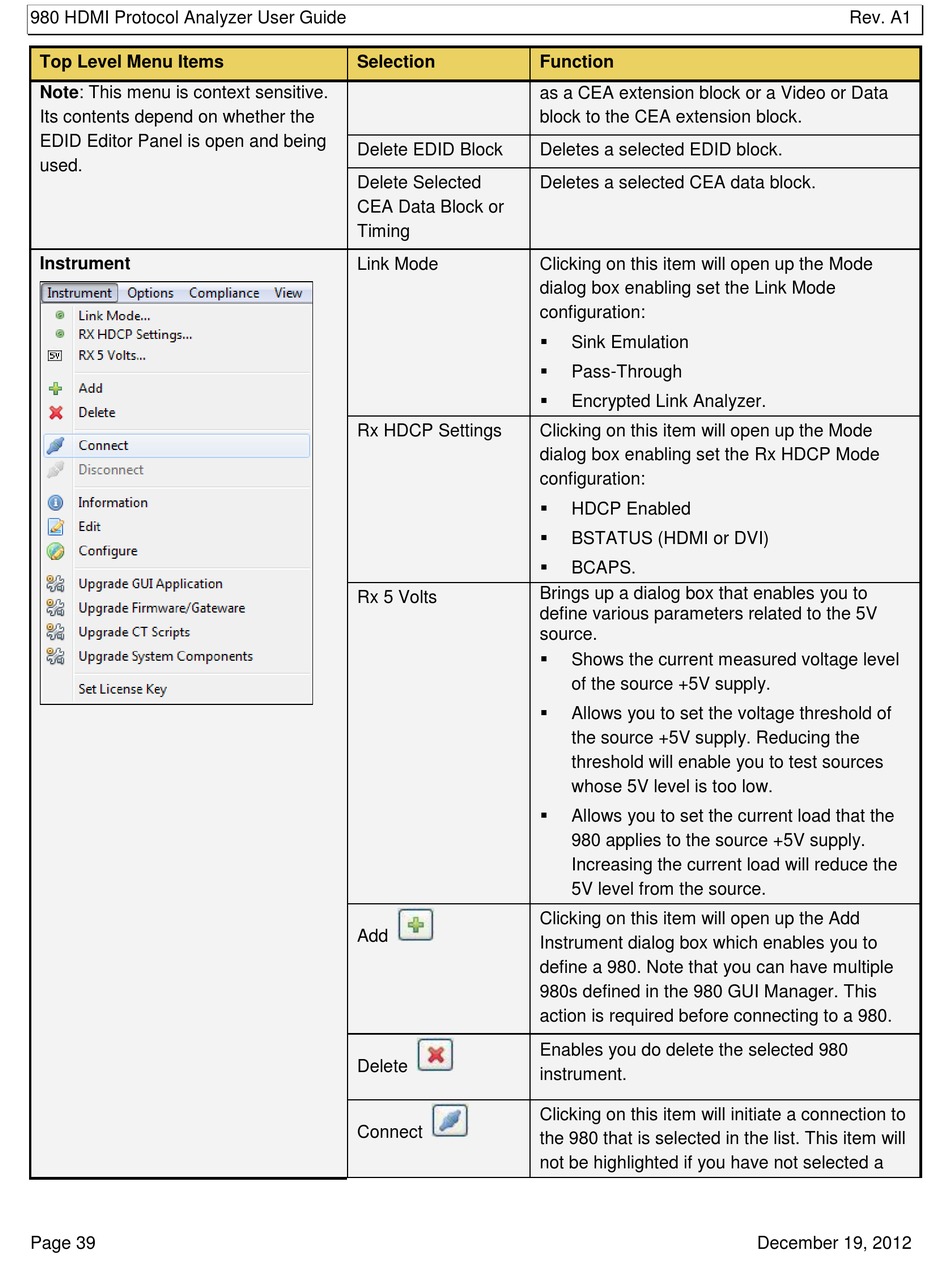

980 HDMI Protocol Analyzer User Guide
Top Level Menu Items
Note: This menu is context sensitive.
Its contents depend on whether the
EDID Editor Panel is open and being
used.
Instrument
Page 39
Selection
Delete EDID Block
Delete Selected
CEA Data Block or
Timing
Link Mode
Rx HDCP Settings
Rx 5 Volts
Add
Delete
Connect
Function
as a CEA extension block or a Video or Data
block to the CEA extension block.
Deletes a selected EDID block.
Deletes a selected CEA data block.
Clicking on this item will open up the Mode
dialog box enabling set the Link Mode
configuration:

Sink Emulation

Pass-Through

Encrypted Link Analyzer.
Clicking on this item will open up the Mode
dialog box enabling set the Rx HDCP Mode
configuration:

HDCP Enabled

BSTATUS (HDMI or DVI)

BCAPS.
Brings up a dialog box that enables you to
define various parameters related to the 5V
source.

Shows the current measured voltage level
of the source +5V supply.

Allows you to set the voltage threshold of
the source +5V supply. Reducing the
threshold will enable you to test sources
whose 5V level is too low.

Allows you to set the current load that the
980 applies to the source +5V supply.
Increasing the current load will reduce the
5V level from the source.
Clicking on this item will open up the Add
Instrument dialog box which enables you to
define a 980. Note that you can have multiple
980s defined in the 980 GUI Manager. This
action is required before connecting to a 980.
Enables you do delete the selected 980
instrument.
Clicking on this item will initiate a connection to
the 980 that is selected in the list. This item will
not be highlighted if you have not selected a
