980 HDMI Protocol Analyzer User Guide

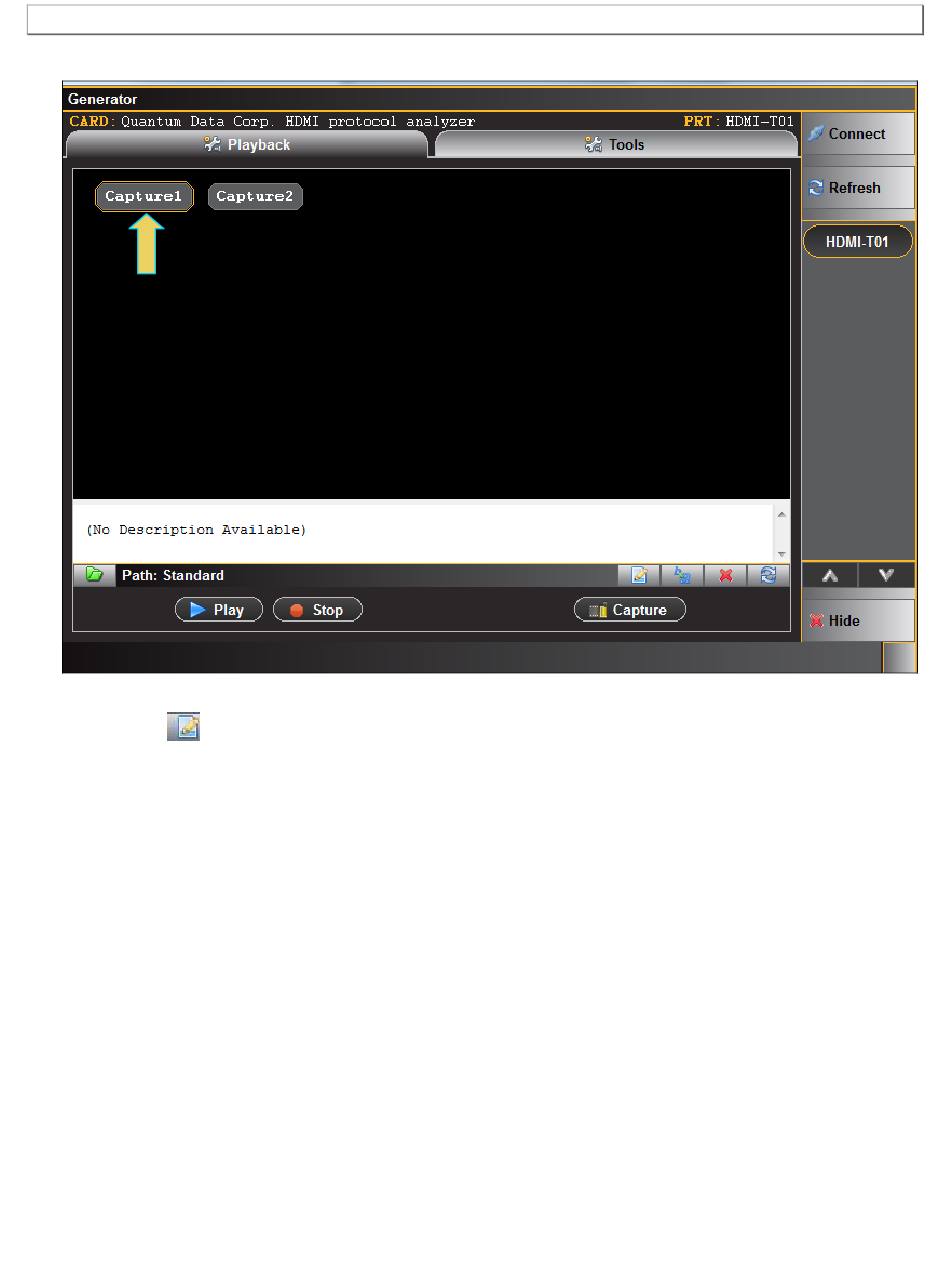

The captured file appears in the Playback window as shown below.
7. Enter a description of the capture in the Playback Description Editor window. You access this window using
the Edit icon
on the lower right of the Generator dialog box (indicated above).
A dialog box appears enabling you to enter a description of the capture. Refer to the screen example below.
You can import a description from a file stored on your PC using the Import button.
Page 283
Rev. A1
December 19, 2012
