980 HDMI Protocol Analyzer User Guide Rev. A1

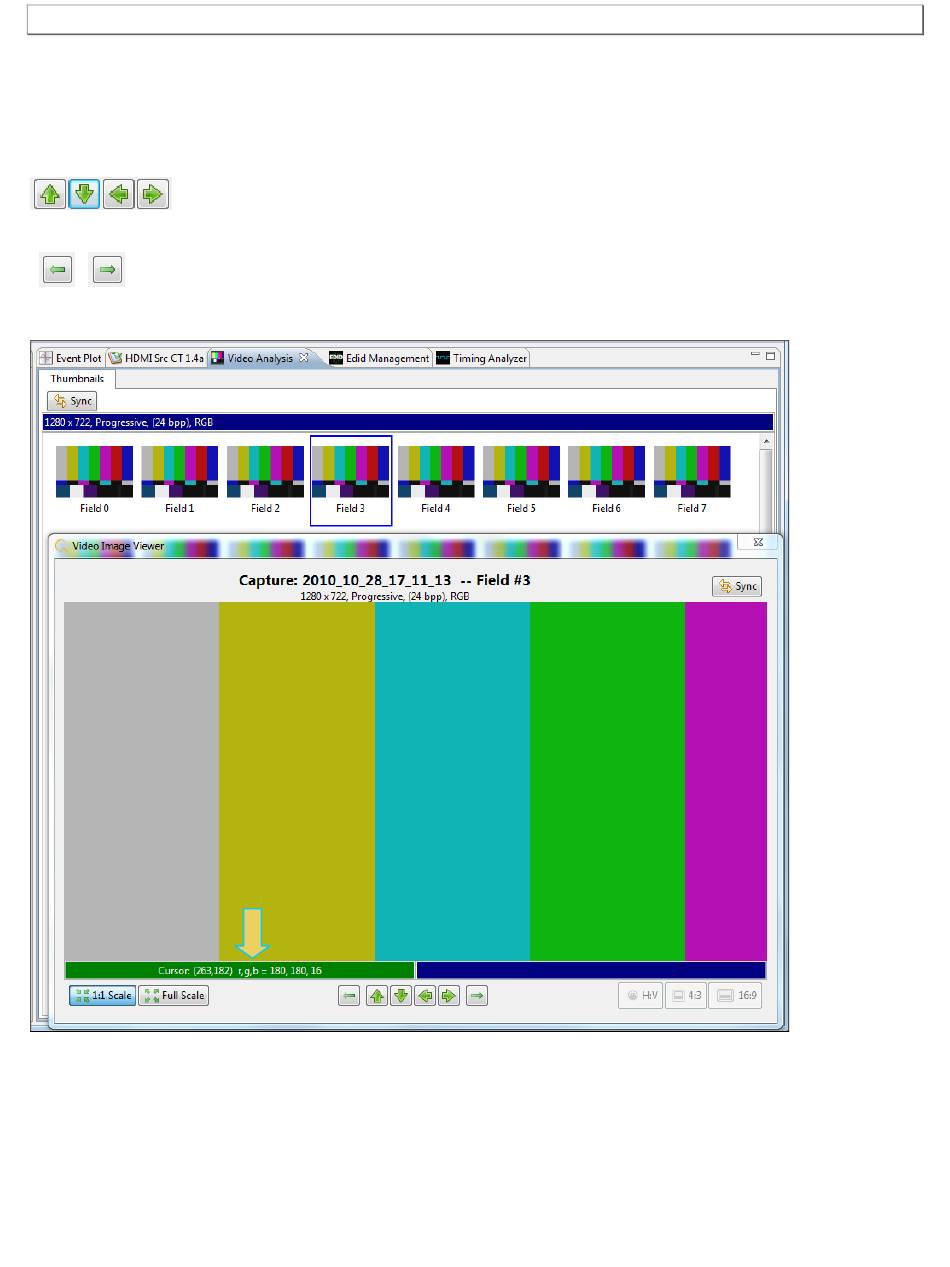

Once you have activated the full view of a frame in the Video Image Viewer panel you can view the pixel values
for any pixel by moving your mouse over the pattern. In the example below pixel (x=537, y=184) is selected. Its
RGB color values are (R=180, G=16, B=16). If the color space is YCbCr the Video Image Viewer will show these
values and indicate the color space. Deep color values are also shown in either YCbCr or RGB color space.
You can advance to an adjacent pixel (up/down or left/right) using the thick green arrow buttons
on the bottom of the Video Image Viewer panel.
You can advance to the image of an adjacent frame (earlier or later) using the thin green arrow buttons
/ on the bottom of the Video Image Viewer panel.
These are shown in the screen image below.
