980 HDMI Protocol Analyzer User Guide

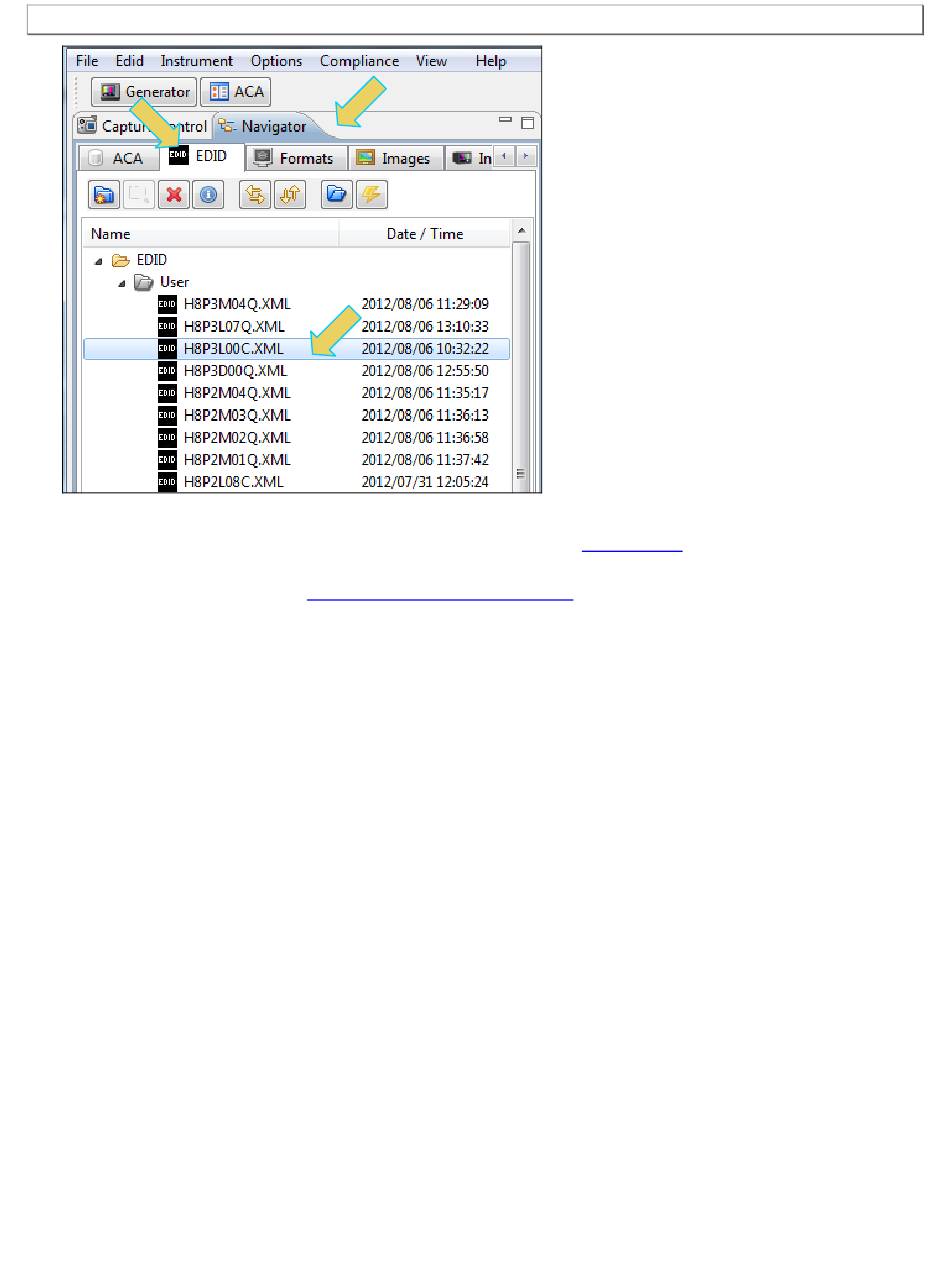

Note: You must have downloaded EDIDs or saved EDIDs into the EDID directory in order to see them in the
EDID navigator tab shown above. You can use the Quantum Data
EDID Library which uses a naming convention for all its EDIDs; these are represented in the screen shot
above. Also note that there is a
describes how to use the EDID Library with the 980 HDMI Protocol Analyzer.
Once you load an EDID the name appears on the status strip on the top of the panel as shown below.
Page 88
980 EDID Library Application Note
EDID Library to obtain these EDIDs. The
available on the EDID Library website which
