980 HDMI Protocol Analyzer User Guide

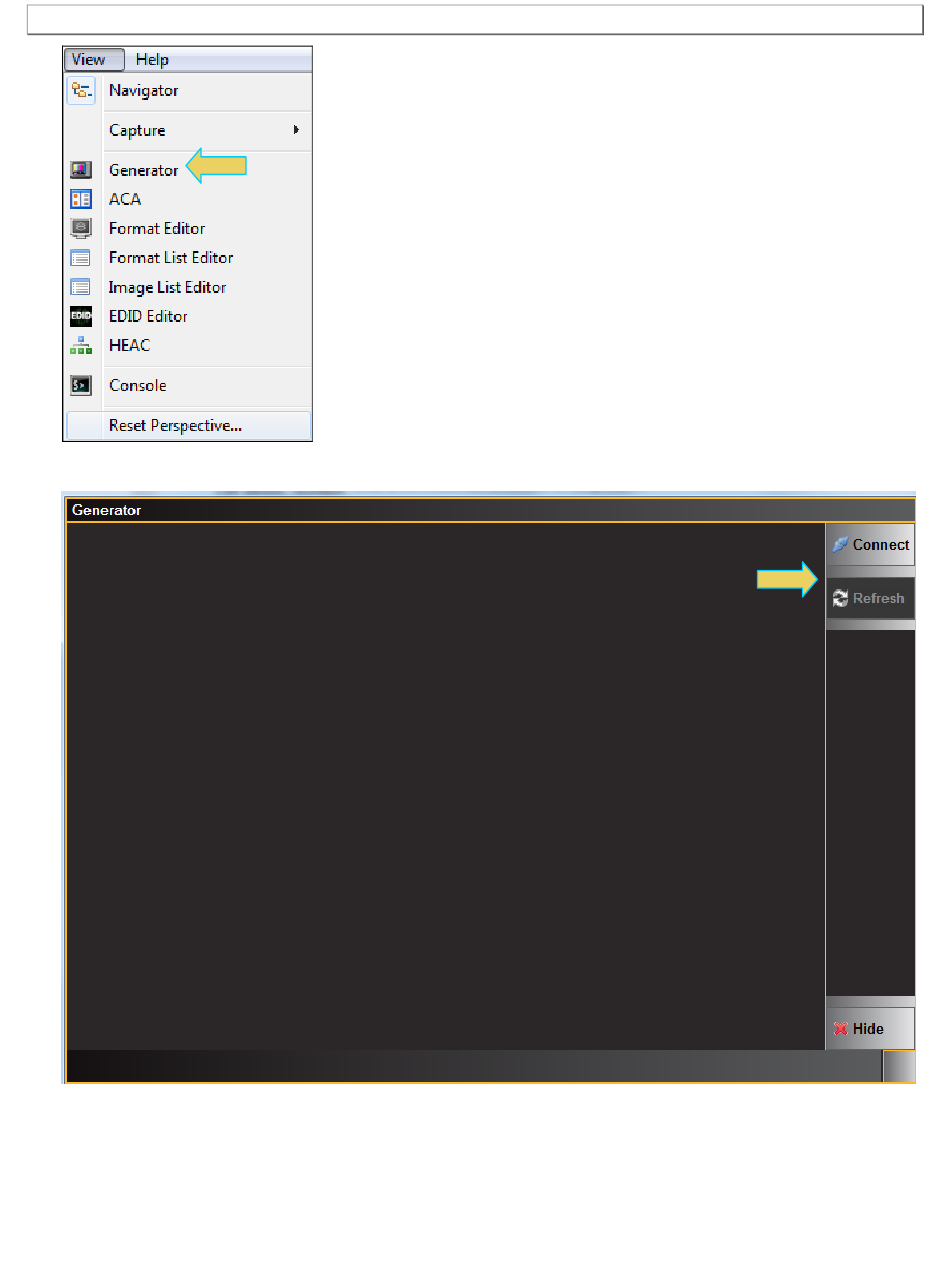

The Generator panel is shown below:
2. Connect to the 980 HDMI Protocol Analyzer using the Connect icon and button as indicated above. The 980
HDMI Protocol Analyzer will read its directories and present the list of captured files in the window under the
Playback tab as shown below. If there are no files the area will be blank.
Page 278
Rev. A1
December 19, 2012
