980 HDMI Protocol Analyzer User Guide

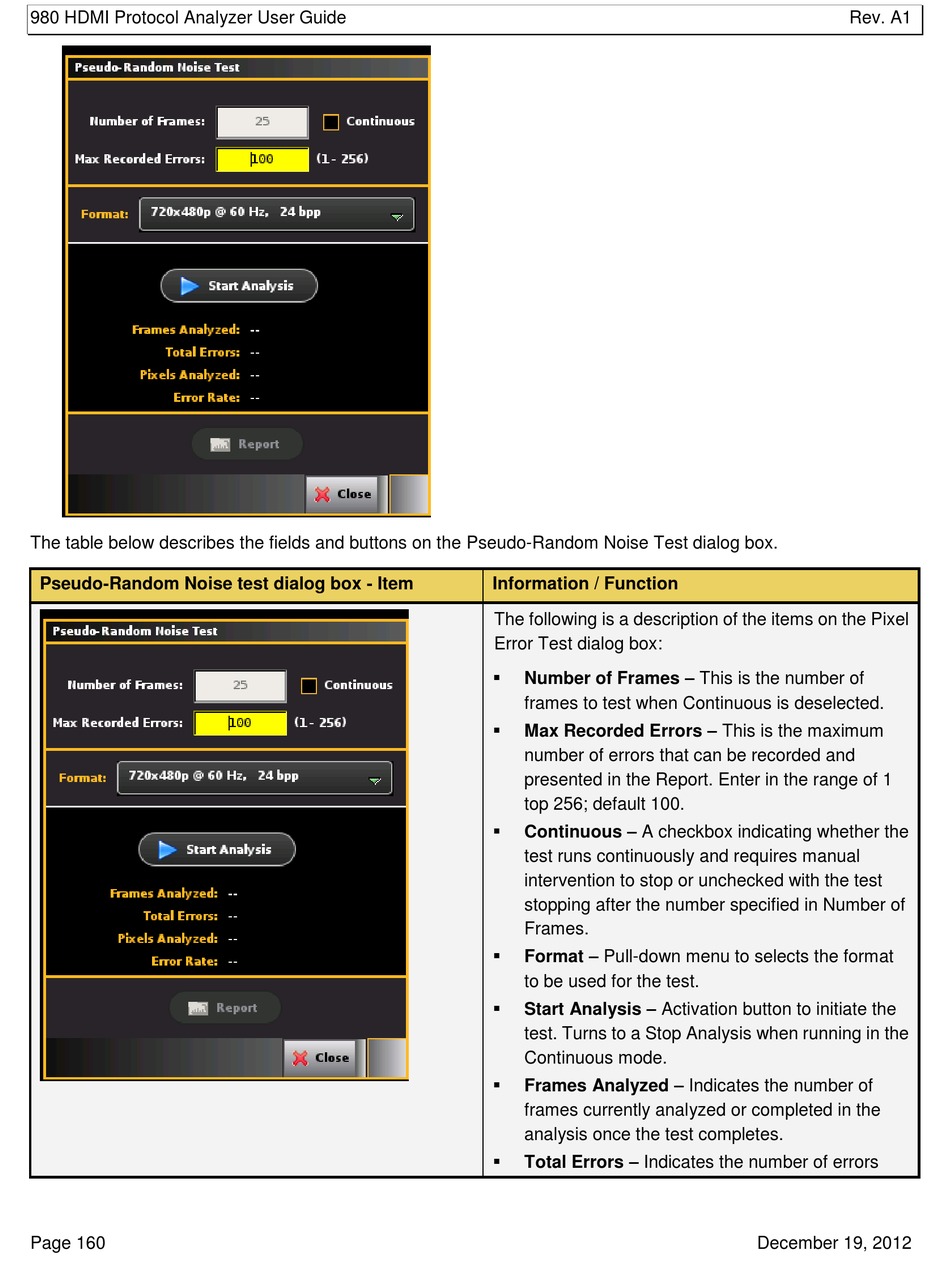

The table below describes the fields and buttons on the Pseudo-Random Noise Test dialog box.
Pseudo-Random Noise test dialog box - Item
Page 160
Information / Function
The following is a description of the items on the Pixel
Error Test dialog box:
 Number of Frames – This is the number of
frames to test when Continuous is deselected.
 Max Recorded Errors – This is the maximum
number of errors that can be recorded and
presented in the Report. Enter in the range of 1
top 256; default 100.
 Continuous – A checkbox indicating whether the
test runs continuously and requires manual
intervention to stop or unchecked with the test
stopping after the number specified in Number of
Frames.
 Format – Pull-down menu to selects the format
to be used for the test.
 Start Analysis – Activation button to initiate the
test. Turns to a Stop Analysis when running in the
Continuous mode.
 Frames Analyzed – Indicates the number of
frames currently analyzed or completed in the
analysis once the test completes.
Total Errors – Indicates the number of errors

