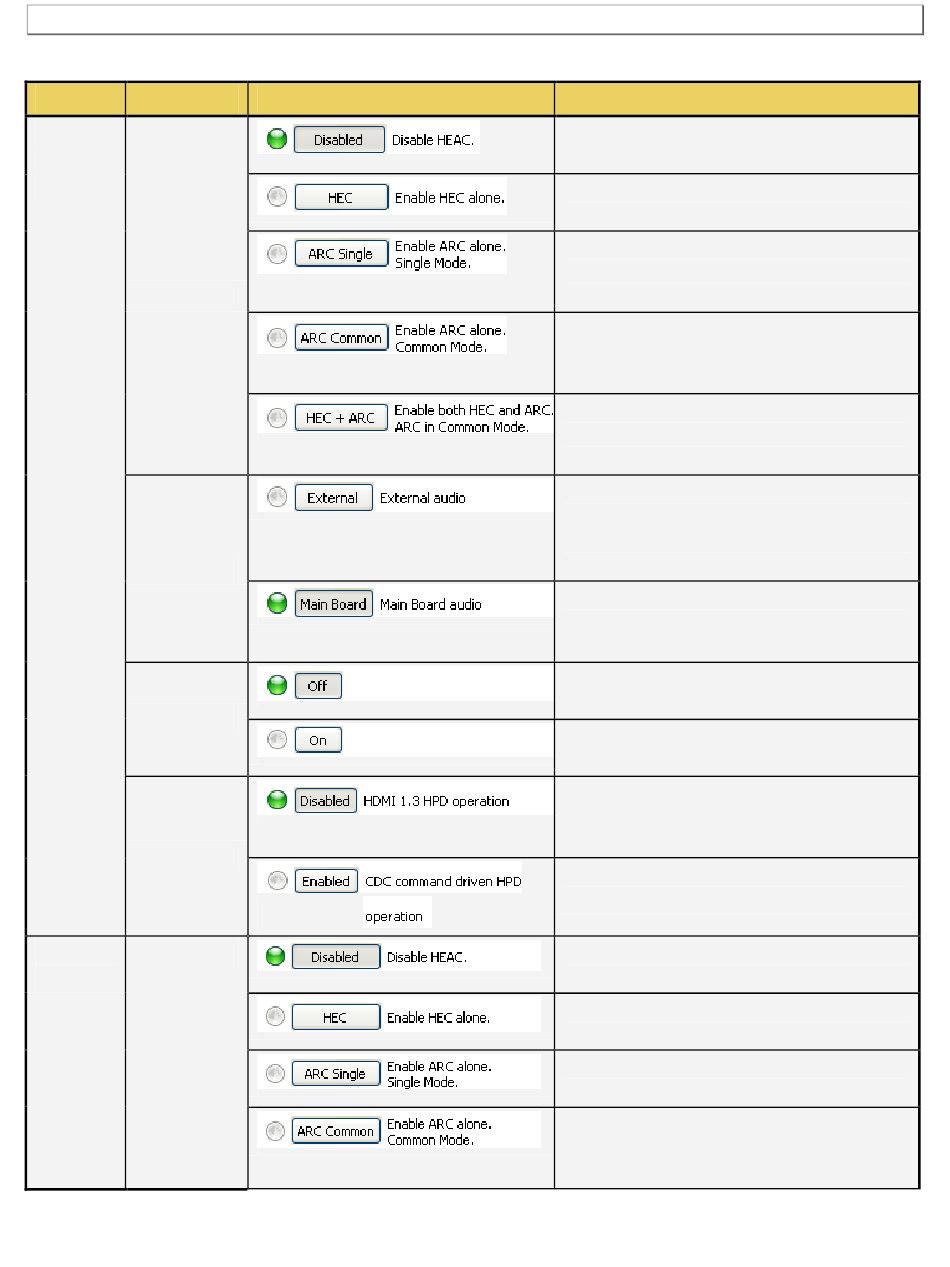

The following table describes the information on the HEAC Control panel.
Panel Section
RX HEAC
Control
HEAC Mode
ARC Source
MB Audio
CDC HPD
TX HEAC
HEAC Mode
Control
Page 259
Control Button Description
Disables HEAC mode on the 980 HDMI Rx
port.
Enables HEC without enabling ARC on the
980 HDMI Protocol Analyzer Rx port.
Enables ARC in Single Mode without
enabling HEC on the 980 HDMI Protocol
Analyzer Rx port.
Enables ARC in Common Mode without
enabling HEC on the 980 HDMI Protocol
Analyzer Rx port.
Enables both HEC and ARC in Common
Mode on the 980 HDMI Protocol Analyzer
Rx port.
Specifies that the source of the audio for the
ARC channel is from an external source
connected to the SPDIF In port on the 980
HDMI Protocol Analyzer.
Specifies that the source of the audio for the
ARC channel is from the internal audio
source on the 980 main board.
Turns off the audio from the main board that
is used as the ARC source.
Turns on the audio from the main board that
is used as the ARC source.
Specifies that the hot plug indication is the
physical hot plug voltage specified in HDMI
1.3 specification.
Specifies that the logical hot plug indication
specified in HDMI 1.4 specification is used.
Disables HEAC on 980 HDMI Protocol
Analyzer Tx port.
Enables HEC on 980 HDMI Protocol
Analyzer Tx port.
Enables ARC in Single Mode on the 980 Tx
port. Emulates an ARC Rx.
Enables both HEC and ARC in Common
Mode on the 980 HDMI Protocol Analyzer Tx
port. Emulates an ARC Rx.
