980 HDMI Protocol Analyzer User Guide
Ensure that you are sending video from your source device under test.
1.

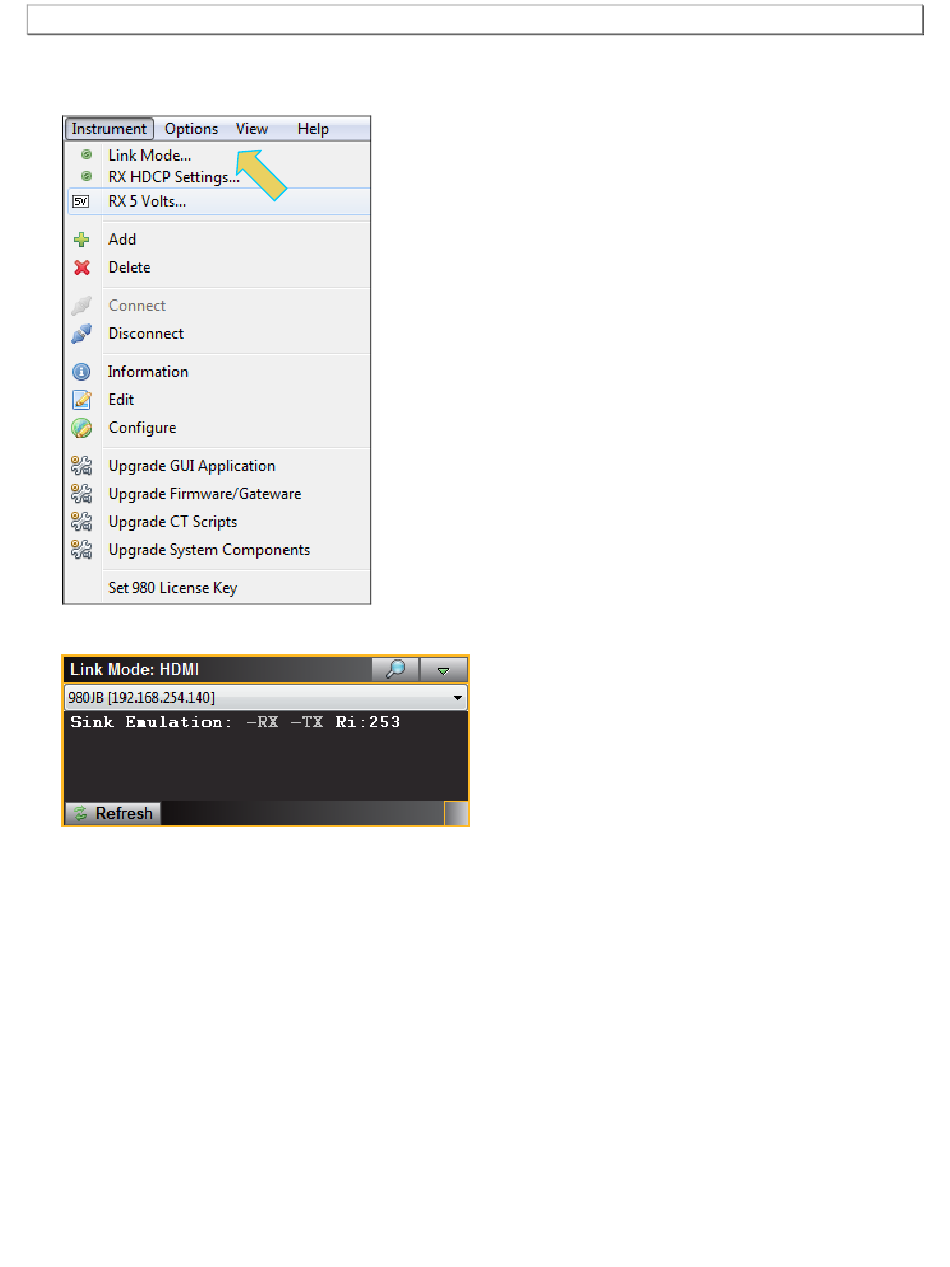

2. Select the Mode item from the Instrument pull-down menu on the built-in front panel as shown below.
The mode dialog box appears as shown below.
2. Select the Pass-Through Link Mode item from the pull-down menu on the built-in front panel as shown
below.
Page 204
Rev. A1
December 19, 2012
