980 HDMI Protocol Analyzer User Guide

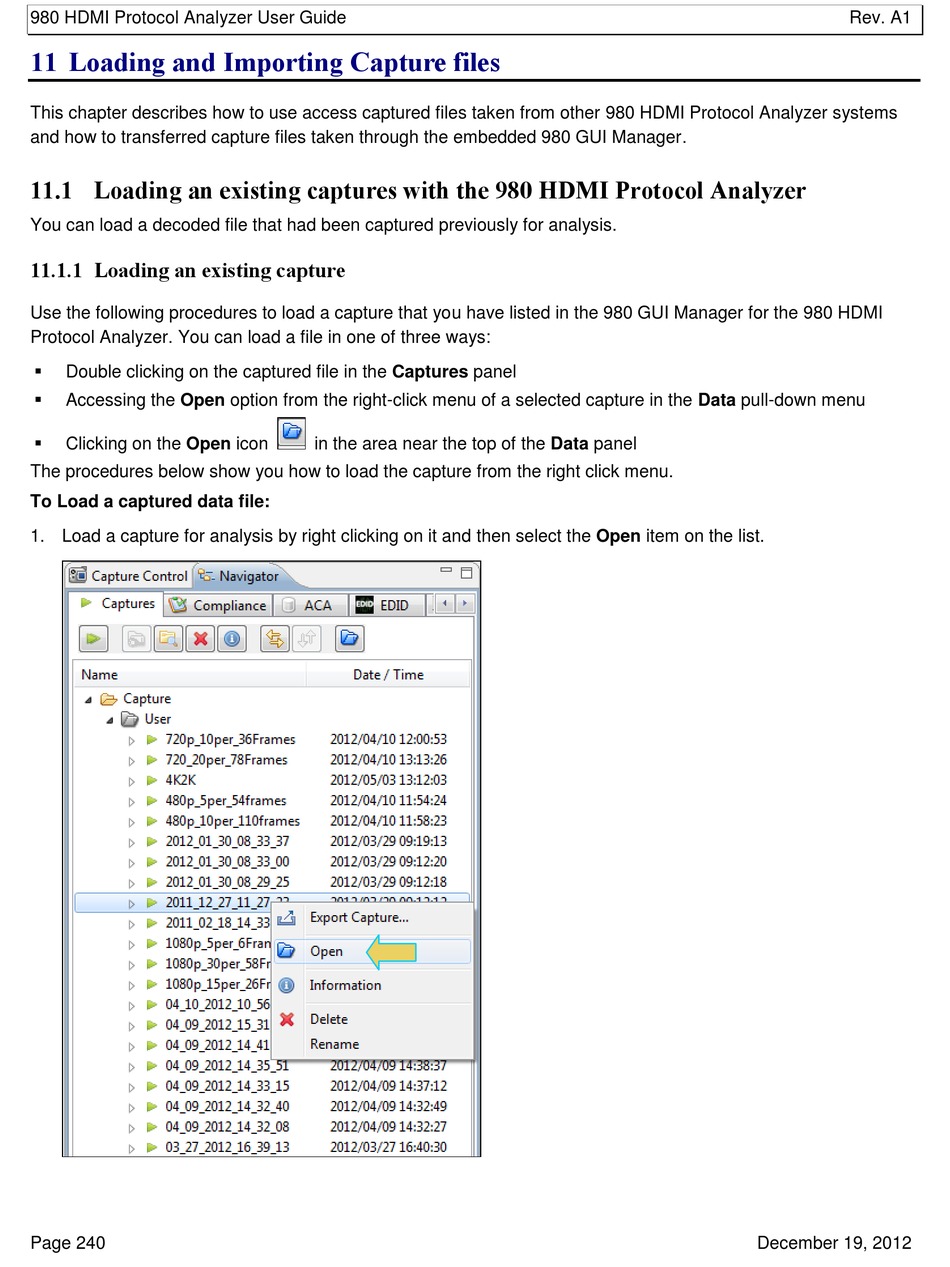

11 Loading and Importing Capture files

This chapter describes how to use access captured files taken from other 980 HDMI Protocol Analyzer systems
and how to transferred capture files taken through the embedded 980 GUI Manager.

11.1 Loading an existing captures with the 980 HDMI Protocol Analyzer

You can load a decoded file that had been captured previously for analysis.
11.1.1 Loading an existing capture
Use the following procedures to load a capture that you have listed in the 980 GUI Manager for the 980 HDMI
Protocol Analyzer. You can load a file in one of three ways:

Double clicking on the captured file in the Captures panel

Accessing the Open option from the right-click menu of a selected capture in the Data pull-down menu

Clicking on the Open icon
The procedures below show you how to load the capture from the right click menu.
To Load a captured data file:
1. Load a capture for analysis by right clicking on it and then select the Open item on the list.
Page 240
in the area near the top of the Data panel
Rev. A1
December 19, 2012
