980 HDMI Protocol Analyzer User Guide

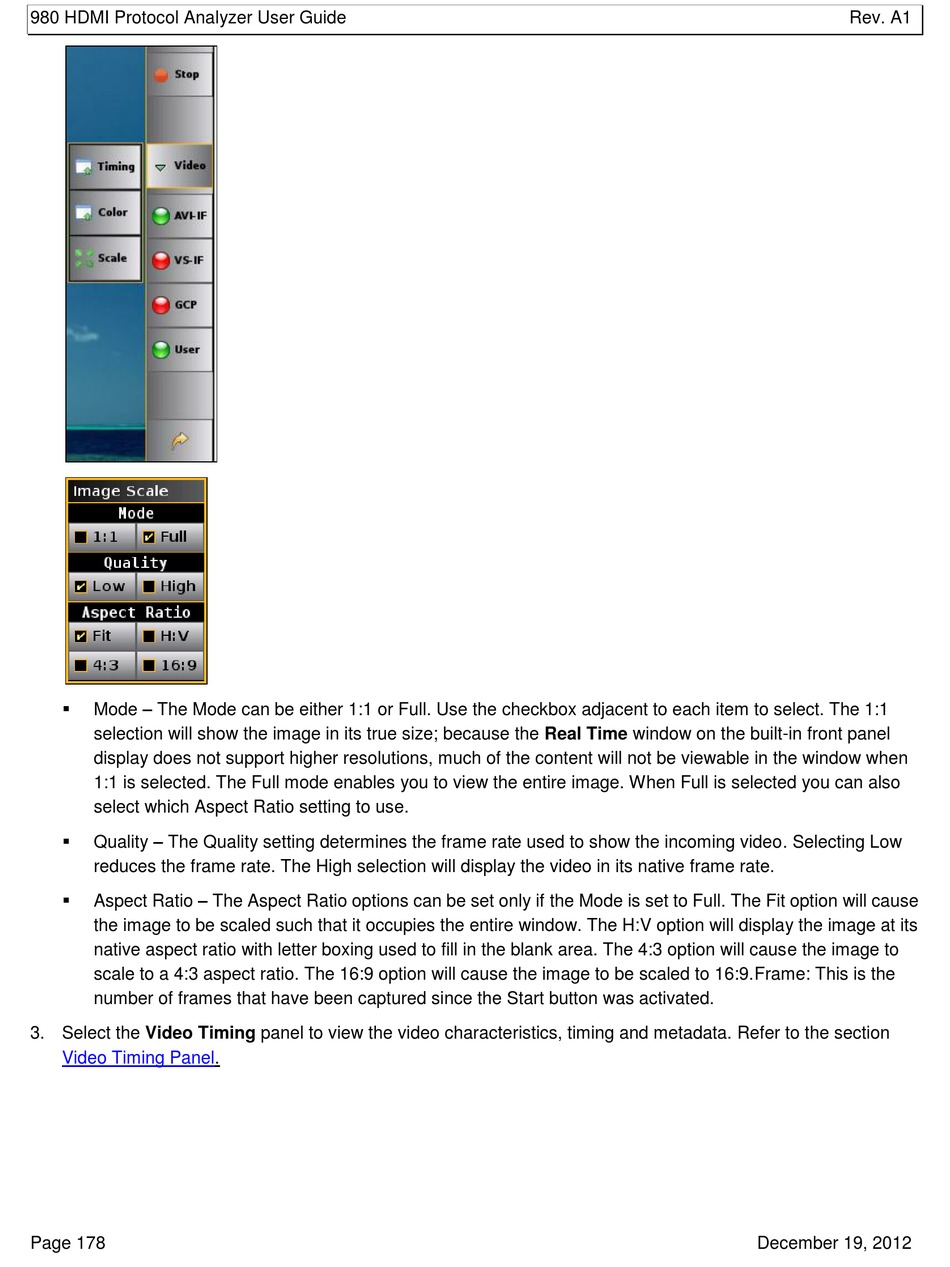

 Mode – The Mode can be either 1:1 or Full. Use the checkbox adjacent to each item to select. The 1:1
selection will show the image in its true size; because the Real Time window on the built-in front panel
display does not support higher resolutions, much of the content will not be viewable in the window when
1:1 is selected. The Full mode enables you to view the entire image. When Full is selected you can also
select which Aspect Ratio setting to use.
 Quality – The Quality setting determines the frame rate used to show the incoming video. Selecting Low
reduces the frame rate. The High selection will display the video in its native frame rate.
 Aspect Ratio – The Aspect Ratio options can be set only if the Mode is set to Full. The Fit option will cause
the image to be scaled such that it occupies the entire window. The H:V option will display the image at its
native aspect ratio with letter boxing used to fill in the blank area. The 4:3 option will cause the image to
scale to a 4:3 aspect ratio. The 16:9 option will cause the image to be scaled to 16:9.Frame: This is the
number of frames that have been captured since the Start button was activated.
3. Select the Video Timing panel to view the video characteristics, timing and metadata. Refer to the section
Video Timing Panel.
