980 HDMI Protocol Analyzer User Guide

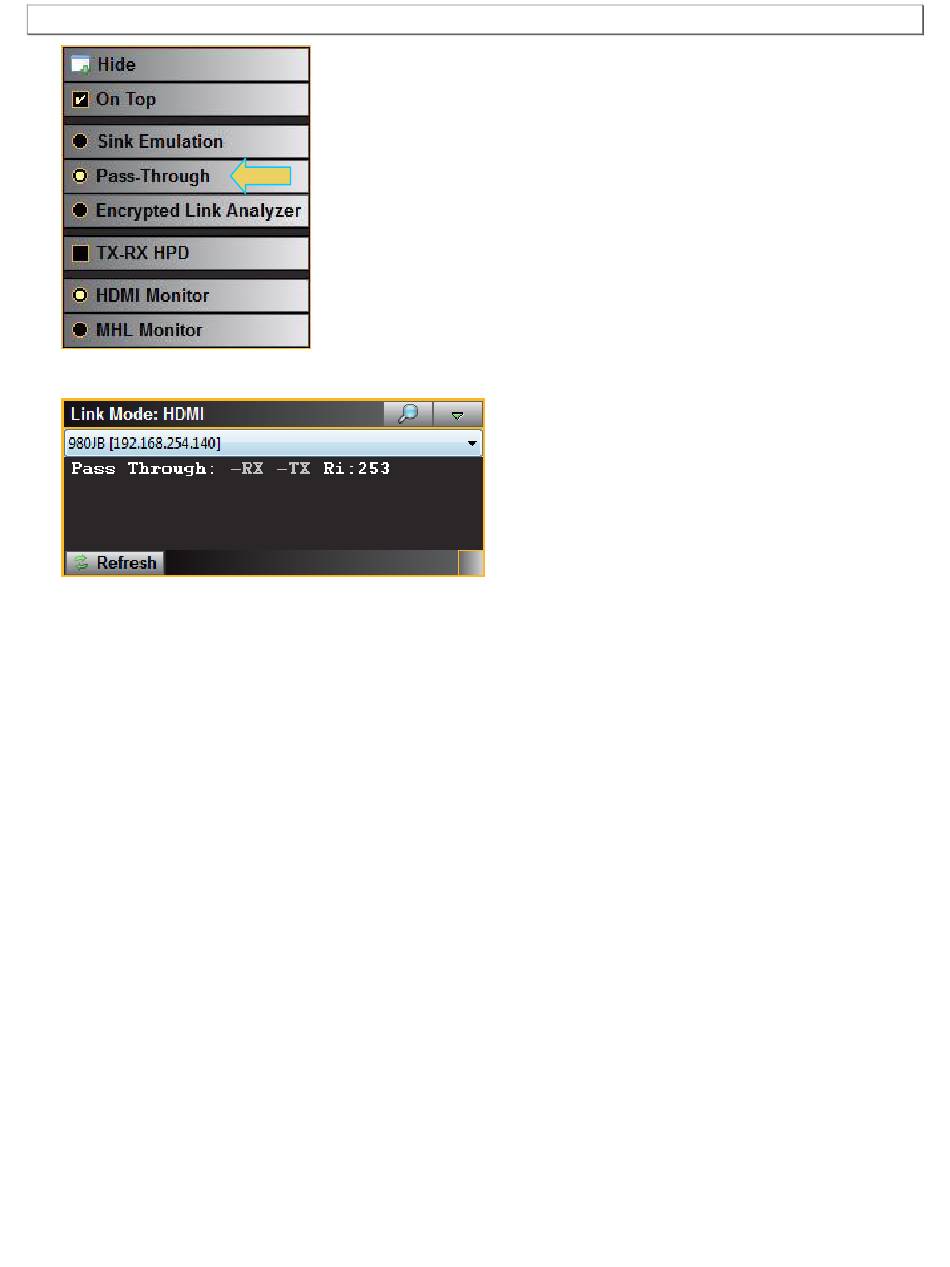

The Link Mode dialog box indicates that you have selected the Pass-Through mode:
Checking the TX-RX HPD checkbox will replicate the hot plug signal from the TX side (an attached sink
device) on the RX side (like a hot plug repeater).
9.2.3 Setting the 980 HDMI Protocol Analyzer mode to HDMI
Use the following procedures to set the 980 HDMI Protocol Analyzer to the HDMI mode.
To set the 980 HDMI Protocol Analyzer mode to HDMI:
2. From the Instrument menu, select the Link Mode.
