980 HDMI Protocol Analyzer User Guide

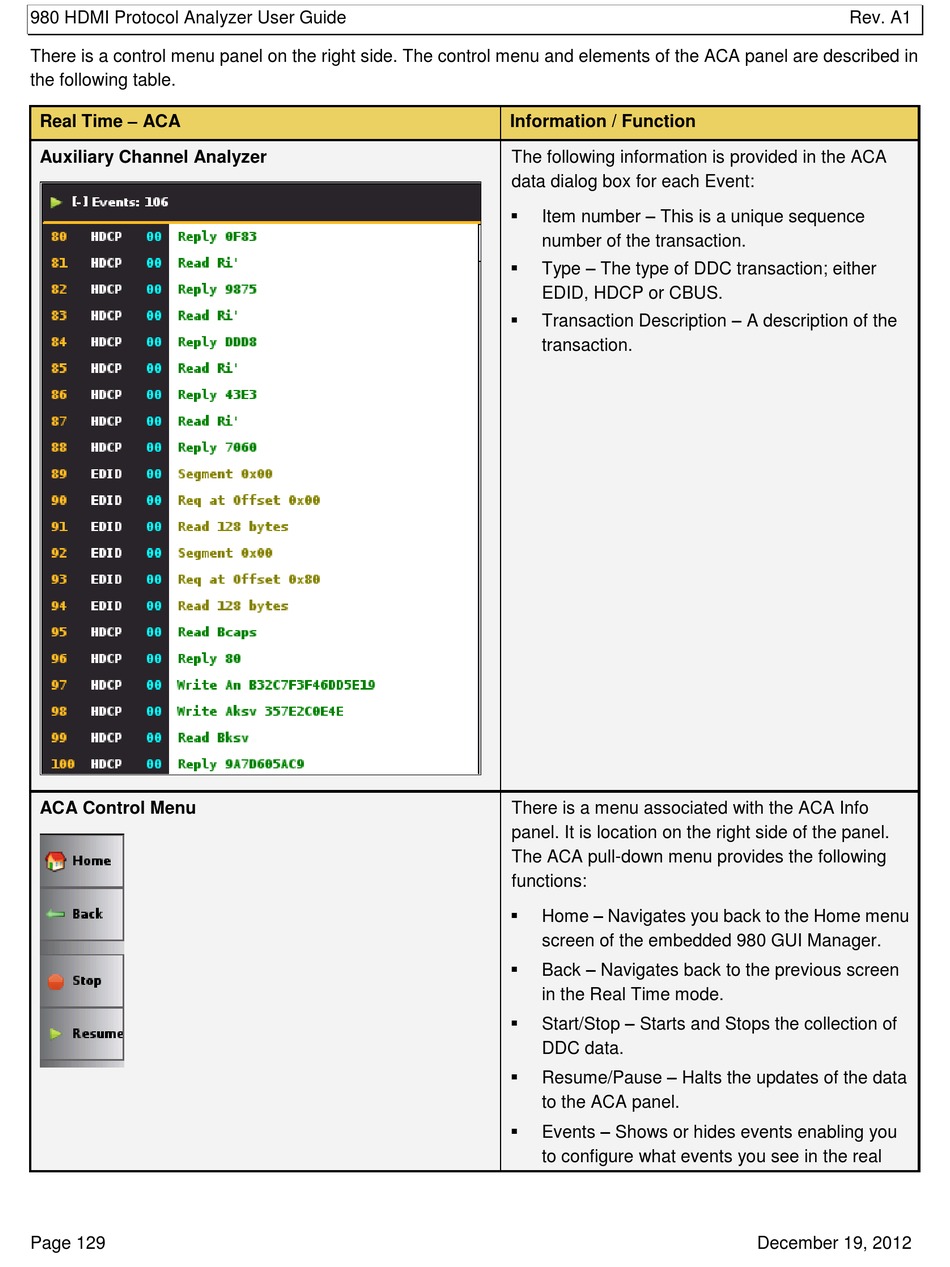

There is a control menu panel on the right side. The control menu and elements of the ACA panel are described in
the following table.
Real Time – ACA
Auxiliary Channel Analyzer
ACA Control Menu
Page 129
Information / Function
The following information is provided in the ACA
data dialog box for each Event:
 Item number – This is a unique sequence
number of the transaction.
 Type – The type of DDC transaction; either
EDID, HDCP or CBUS.
 Transaction Description – A description of the
transaction.
There is a menu associated with the ACA Info
panel. It is location on the right side of the panel.
The ACA pull-down menu provides the following
functions:
Home – Navigates you back to the Home menu

screen of the embedded 980 GUI Manager.
Back – Navigates back to the previous screen

in the Real Time mode.
Start/Stop – Starts and Stops the collection of

DDC data.
 Resume/Pause – Halts the updates of the data
to the ACA panel.
 Events – Shows or hides events enabling you
to configure what events you see in the real
Rev. A1
December 19, 2012
