980 HDMI Protocol Analyzer User Guide
8.13.4 Searching through the data in the Data Decode panel
The procedures below describe how to search through the data in the Data Decode panel.
To search through the data:

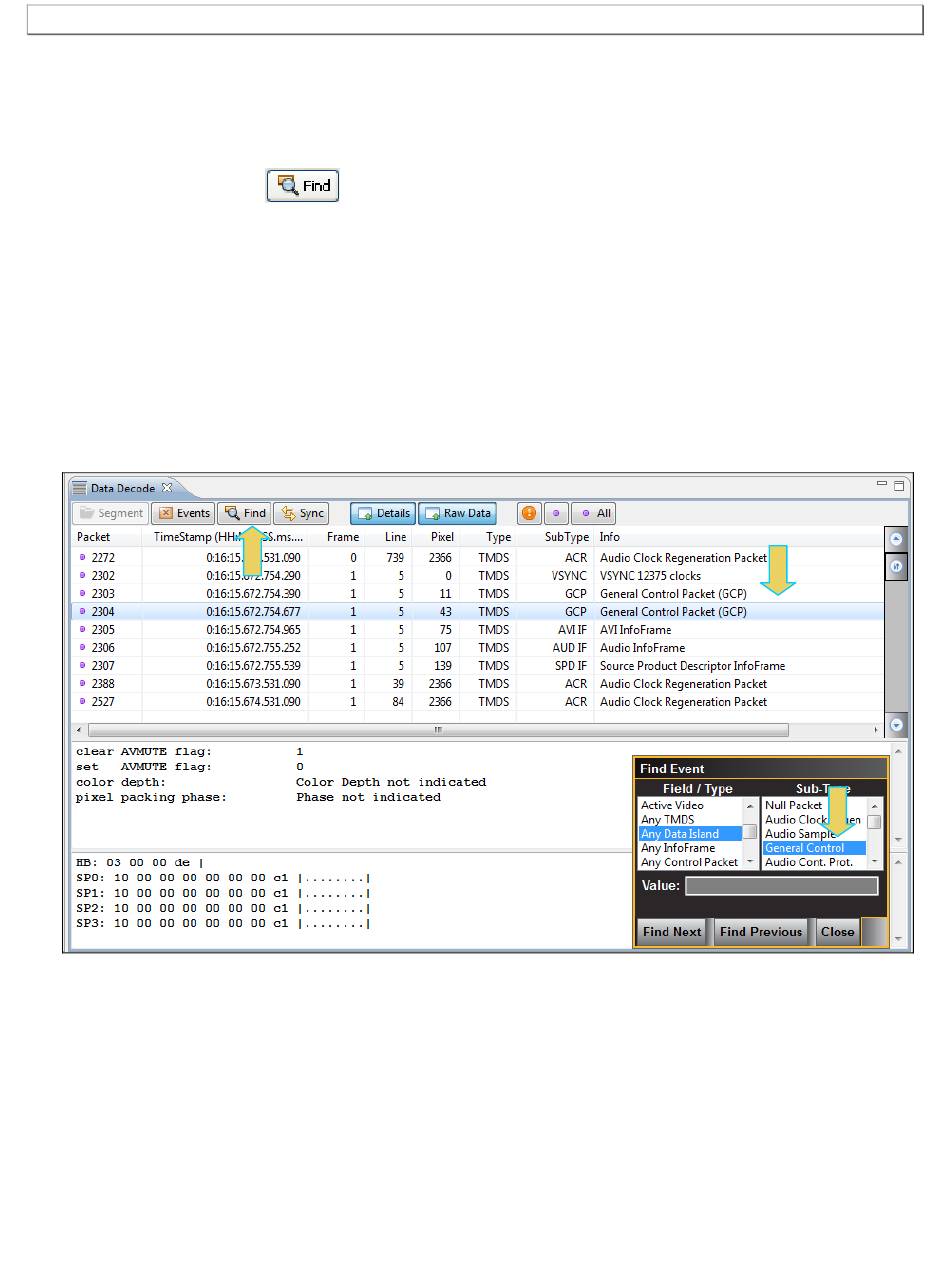

1. Click on the Search icon.
You can search on a variety of packet types and some of the fields in the Data Decode panel such as Packet,
Timestamp, Frame, Line and Pixel. You can also search for a variety of control events such as the occurrence
of Avmute in an ACR packet or a Vsync/Hsync.
The default is to search Forward which is a search for events that occur later in time. You can change that to
search backward by selecting associated radio button.
A dialog box appears that enables you can enter search criteria. In this example we will search for an Audio
Clock Regeneration packet. The Data Decode panel will then show the next General Control Packet (GCP)
packet. If you are searching for a specific packet number, timestamp or frame you will have to enter value in
the Find/Goto field.
