3 Overview of the 980 GUI Manager (External)

3.1

Overview

This chapter describes the 980 Manager panels. The 980 GUI Manager is an application that runs on your local PC.
It enables you to examine the data captured by the 980 HDMI Protocol Analyzer through a user friendly graphical
interface.
3.1.1 Main Window

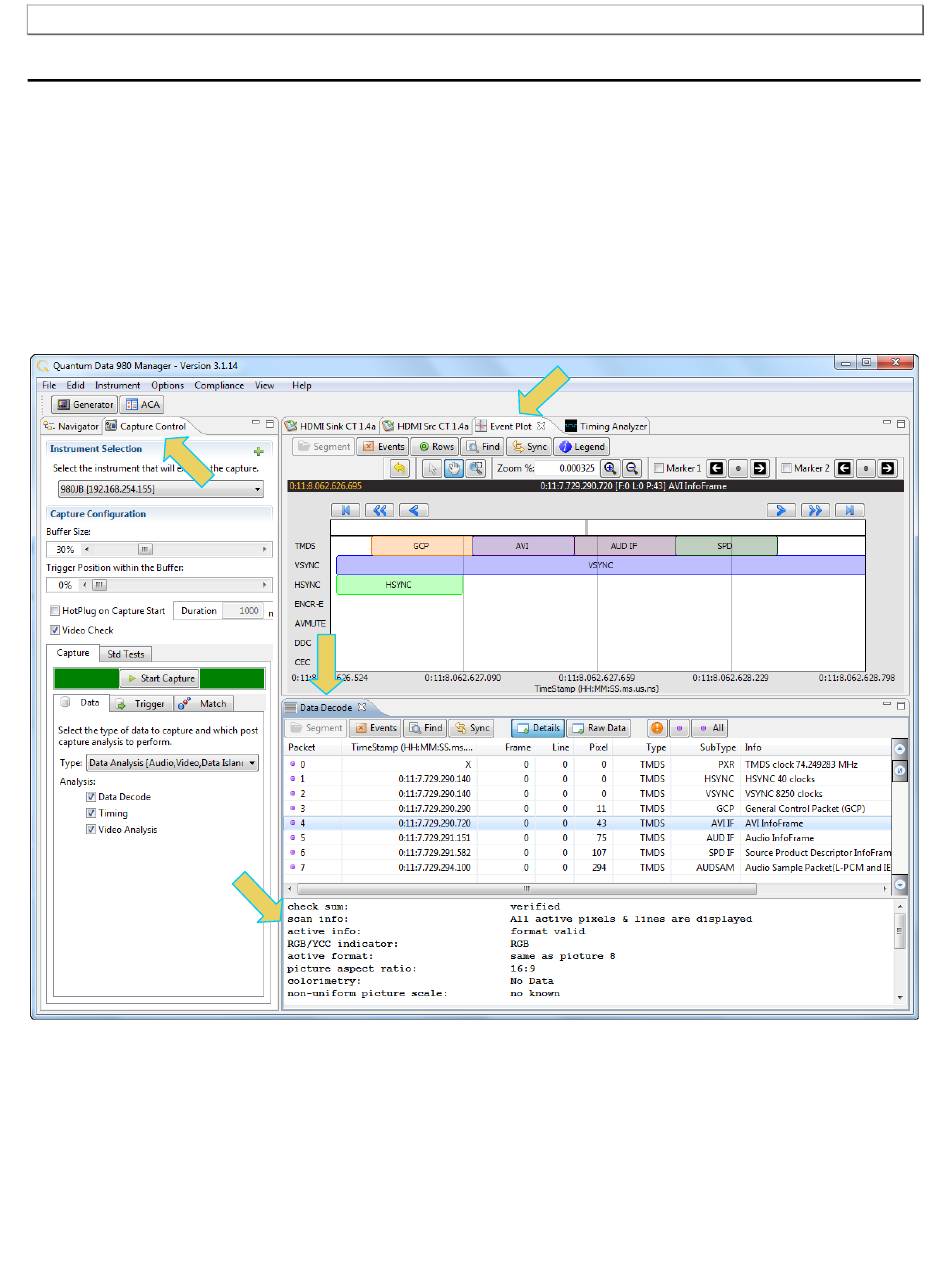

An example of the main window configuration of the 980 GUI Manager is shown in the figure below. The 980 HDMI
Protocol Analyzer panel can be rearranged and resized using standard windowing control techniques. You can
also double click on a panel to enlarge it such that it consumes the entire area of the application.
