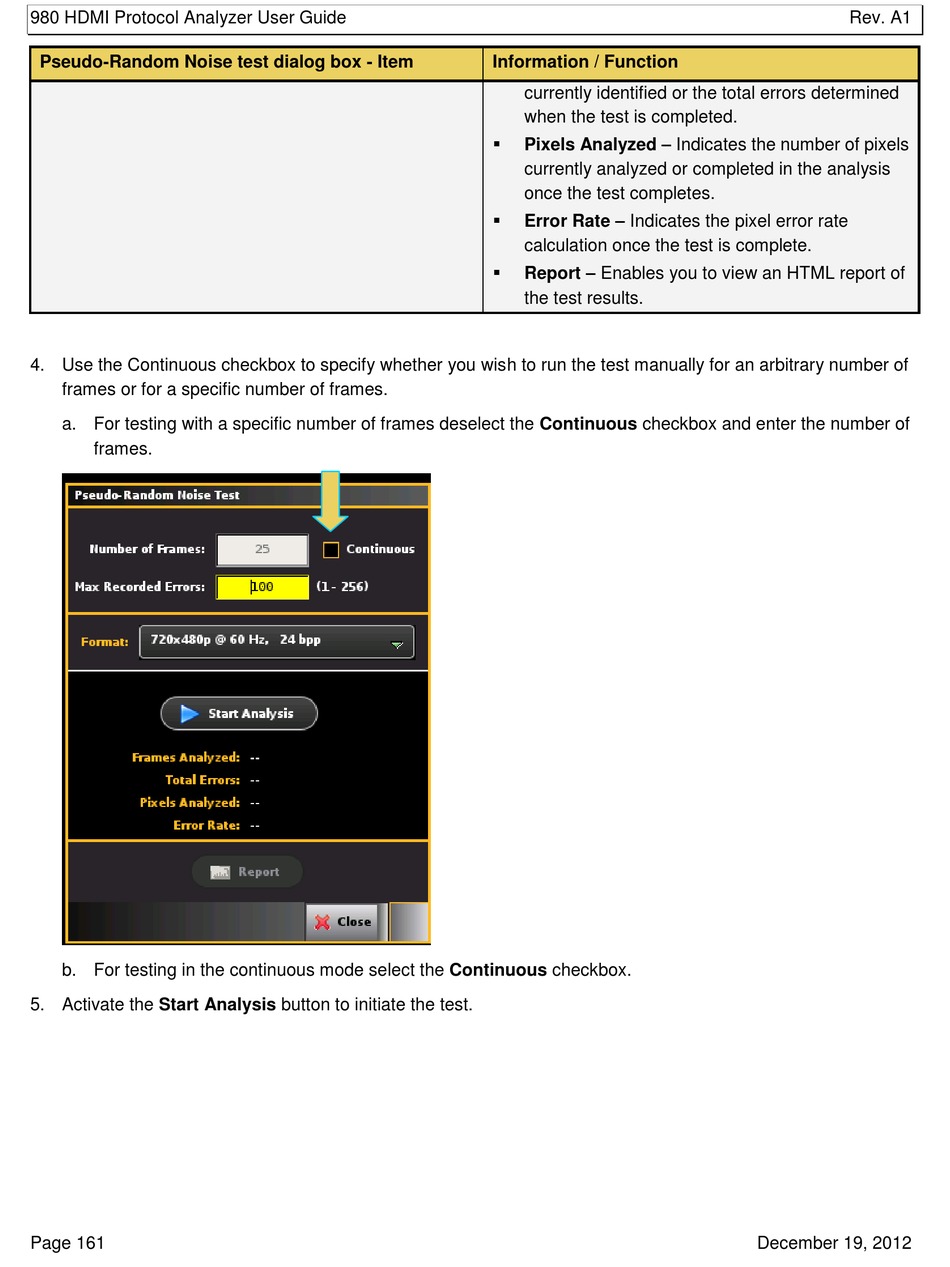

980 HDMI Protocol Analyzer User Guide
Pseudo-Random Noise test dialog box - Item
4. Use the Continuous checkbox to specify whether you wish to run the test manually for an arbitrary number of
frames or for a specific number of frames.
a. For testing with a specific number of frames deselect the Continuous checkbox and enter the number of
frames.
b. For testing in the continuous mode select the Continuous checkbox.
5. Activate the Start Analysis button to initiate the test.
Page 161
Information / Function
currently identified or the total errors determined
when the test is completed.
Pixels Analyzed – Indicates the number of pixels
currently analyzed or completed in the analysis
once the test completes.
Error Rate – Indicates the pixel error rate
calculation once the test is complete.
Report – Enables you to view an HTML report of
the test results.
Rev. A1
December 19, 2012
