3. Take the necessary action—such as a hot plug—to initiate EDID or HDCP transactions from the HDMI source
device. You will see the DDC transactions in the ACA panel as shown below.
4. Touch select the Start

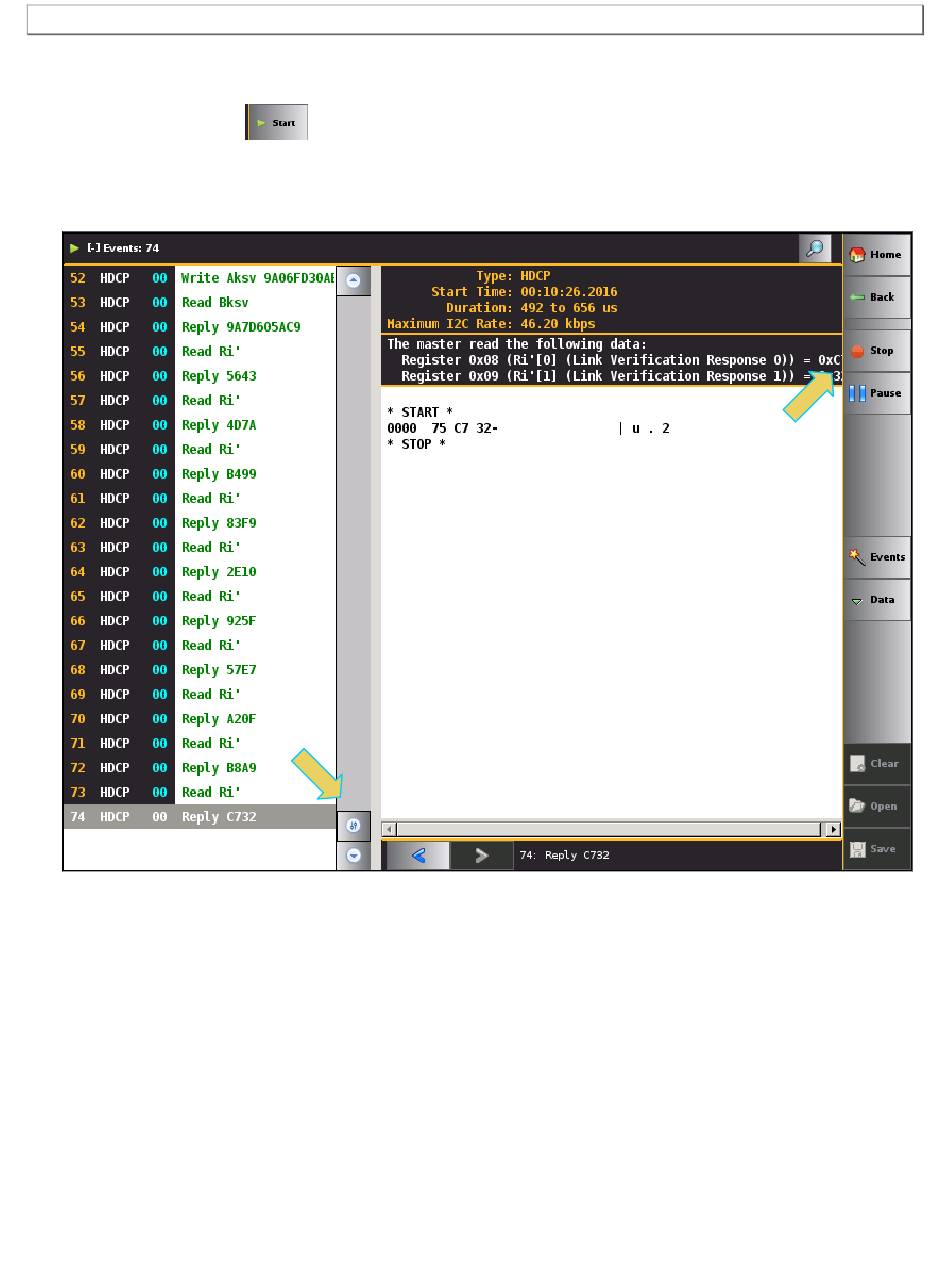

HDCP and EDID transactions. An example showing monitored data is shown below. You can stop or pause
the collection at any time using the buttons on the ACA menu panel on the right. These are indicated in the
screen example below.
