980 HDMI Protocol Analyzer User Guide
2. Launch the 980 GUI Manager.

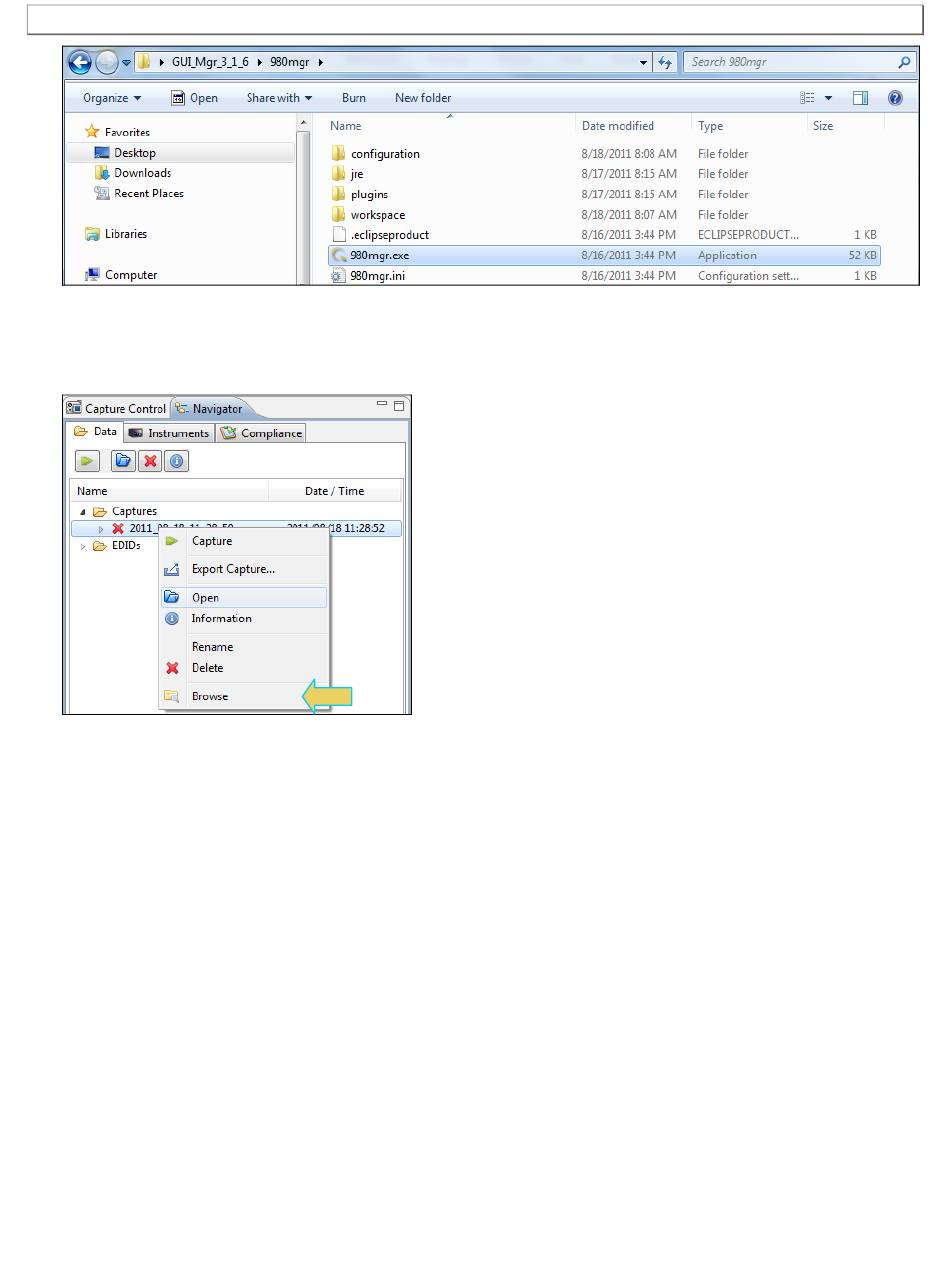

3. Locate the 980 GUI Manager captures directory by right clicking on an existing capture in the Navigator/Data
panel and then selecting Browse (below).
A Windows Explorer window will appear at the captured file. From there you can determine the location of the
captures directory.
4. Transfer the capture directory (from the file you unzipped) to the 980 GUI Manager captures directory using
standard Windows methods. The screen example below shows the resulting files stored in the captures
directory.
