980 HDMI Protocol Analyzer User Guide
device or you can monitor the transactions passively. Procedures for these applications are provided in this
subsection.
6.3.1 Setting the 980 HDMI Protocol Analyzer mode to HDMI
Use the following procedures to set the 980 HDMI Protocol Analyzer to the HDMI mode.
To set the 980 HDMI Protocol Analyzer mode to HDMI:

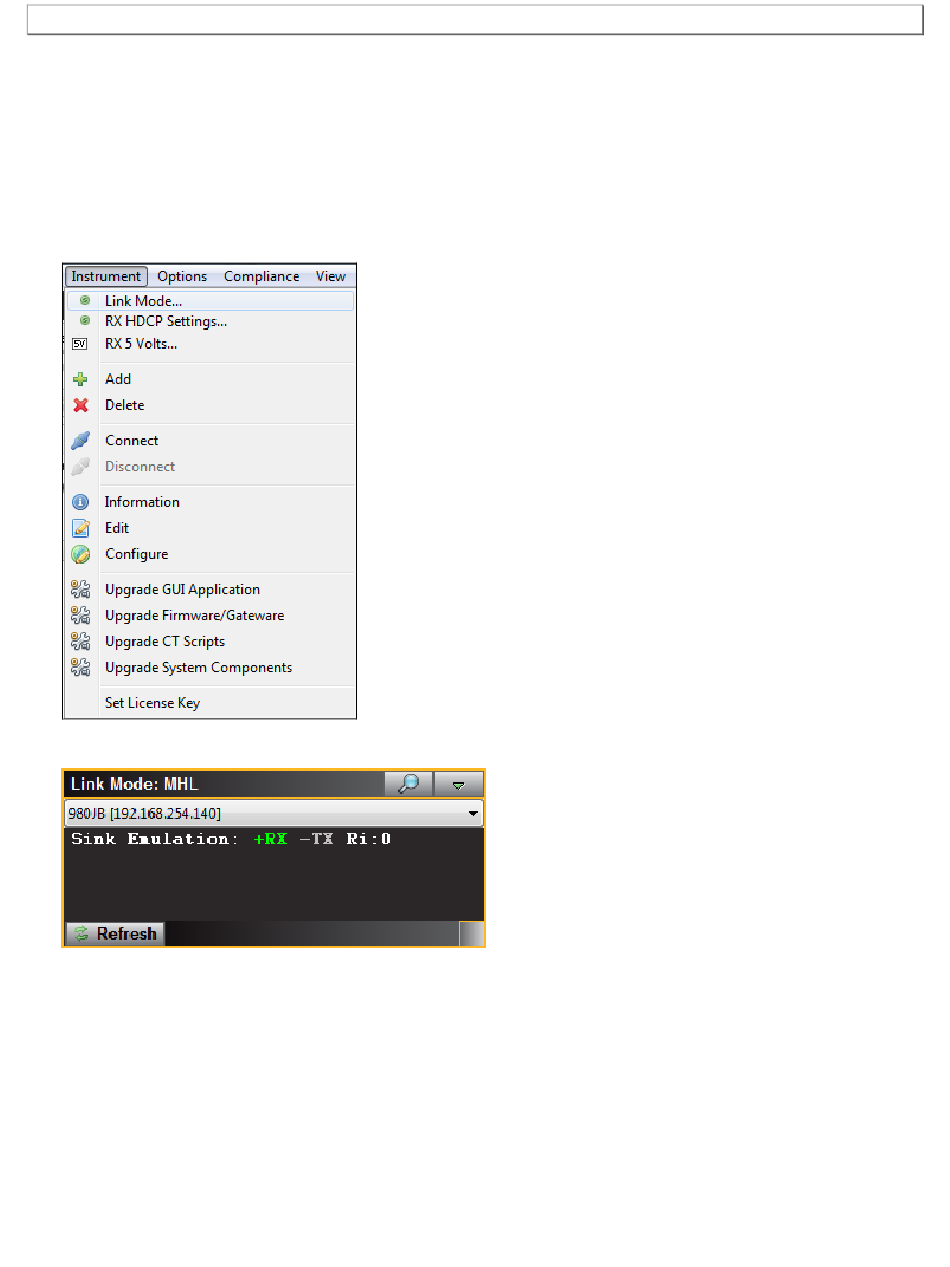

1. From the Instrument menu, select the Link Mode.
The following menu appears:
1. Select the pull-down menu as shown below and select the HDMI Monitor checkbox. The default mode is
HDMI.
