980 HDMI Protocol Analyzer User Guide

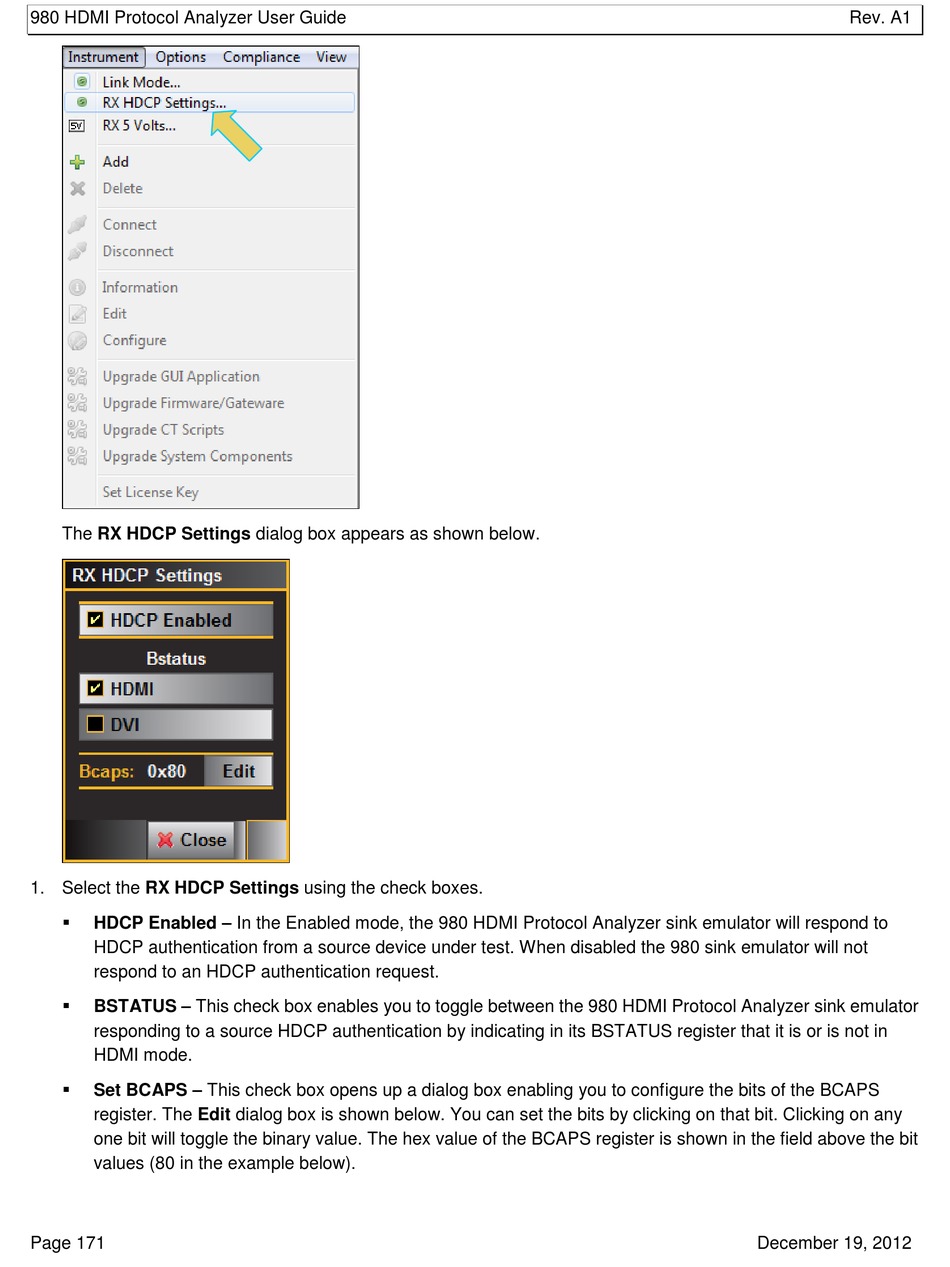

The RX HDCP Settings dialog box appears as shown below.
1. Select the RX HDCP Settings using the check boxes.
 HDCP Enabled – In the Enabled mode, the 980 HDMI Protocol Analyzer sink emulator will respond to
HDCP authentication from a source device under test. When disabled the 980 sink emulator will not
respond to an HDCP authentication request.
 BSTATUS – This check box enables you to toggle between the 980 HDMI Protocol Analyzer sink emulator
responding to a source HDCP authentication by indicating in its BSTATUS register that it is or is not in
HDMI mode.
Set BCAPS – This check box opens up a dialog box enabling you to configure the bits of the BCAPS

register. The Edit dialog box is shown below. You can set the bits by clicking on that bit. Clicking on any
one bit will toggle the binary value. The hex value of the BCAPS register is shown in the field above the bit
values (80 in the example below).
