980 HDMI Protocol Analyzer User Guide Rev. A1
4.2.1 Defining Precision Triggering and Pre-Capture Filtering
The 980 Capture Control function has an advanced triggering and pre-capture filtering function which enables you
to specify the triggering and pre-capture filtering with a greater degree of detail. These advanced features are

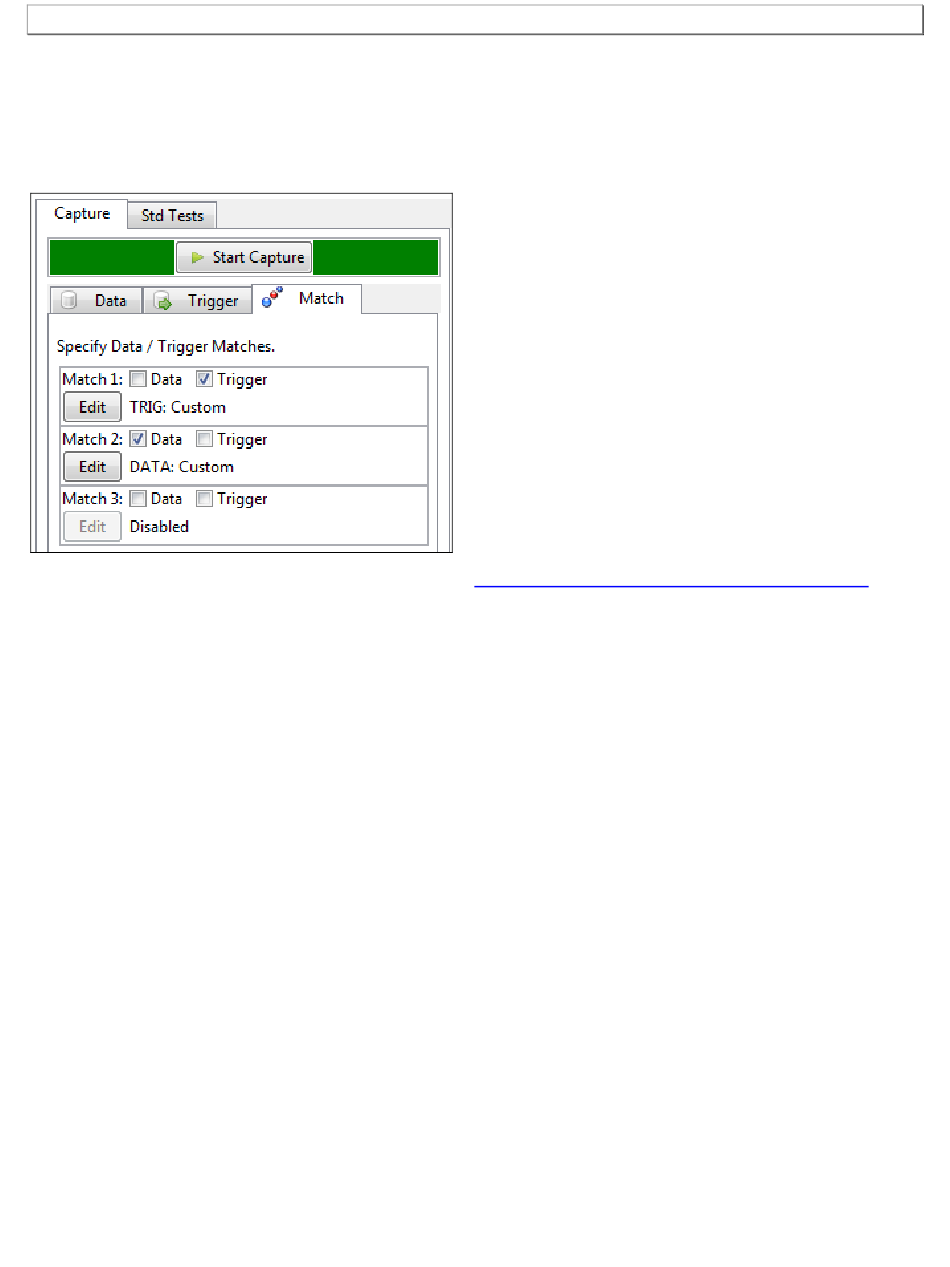

configured through the Match functional tab under the Capture tab shown below.
Use and operation of this feature is described in section: Using Precision Trigging and Pre-Capture Filtering.
