980 HDMI Protocol Analyzer User Guide

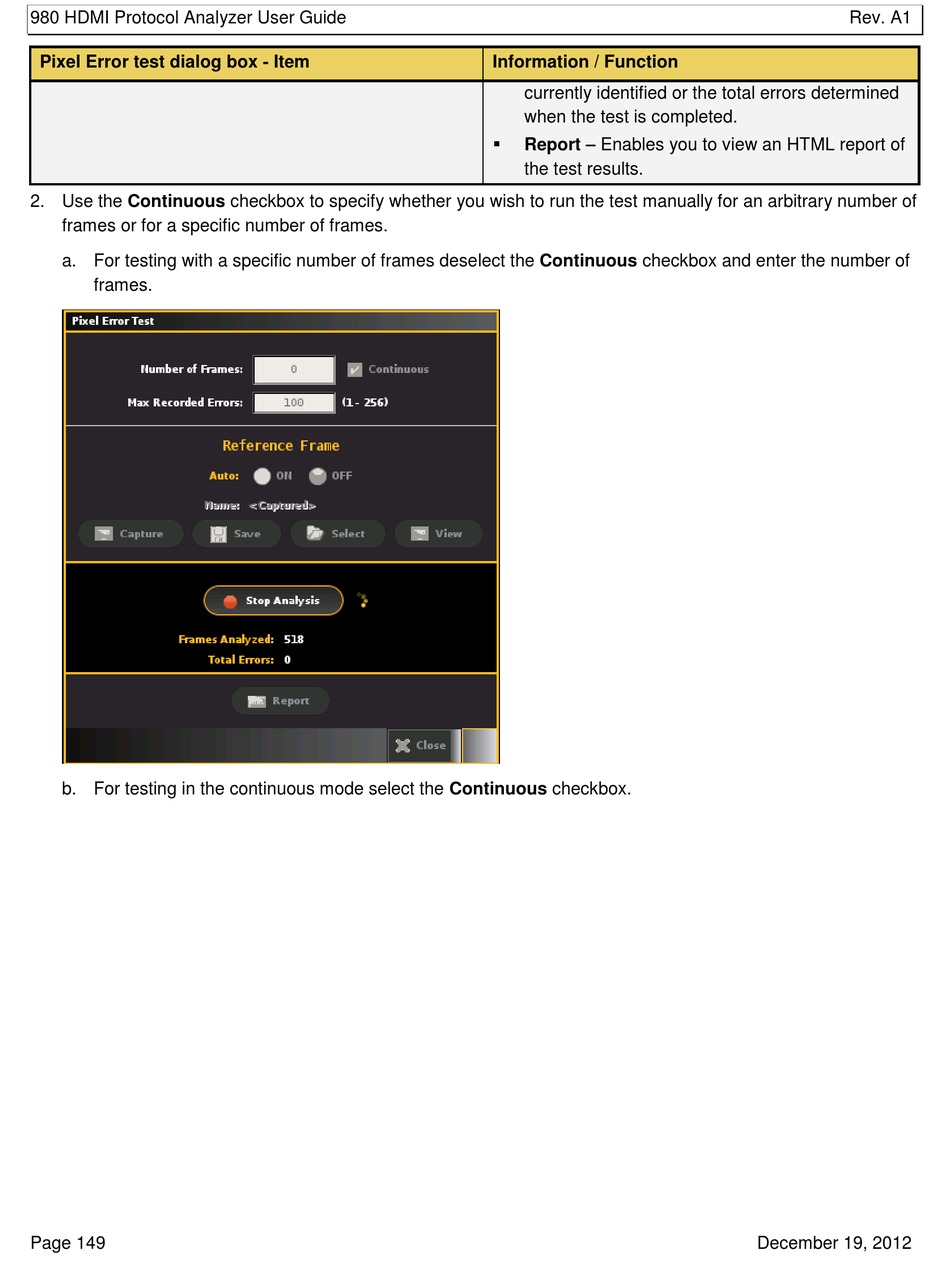

Pixel Error test dialog box - Item
2. Use the Continuous checkbox to specify whether you wish to run the test manually for an arbitrary number of
frames or for a specific number of frames.
a. For testing with a specific number of frames deselect the Continuous checkbox and enter the number of
frames.
b. For testing in the continuous mode select the Continuous checkbox.
Page 149
Information / Function
currently identified or the total errors determined
when the test is completed.
 Report – Enables you to view an HTML report of
the test results.
Rev. A1
December 19, 2012
