980 HDMI Protocol Analyzer User Guide
The Link Mode menu will show MHL (or HDMI) as the Link Mode.
8.4

Setting the Configuration of the Link Mode

Prior to a capturing or viewing video you will need to set the configuration of the Link Mode: 1) Sink Emulation, 2)
Pass-Through, 3) Encrypted Link Analyzer. If you are using the Pass-Through or Encrypted Link Analyzer
configuration you will connect an HDMI display device to the HDMI Tx port. If using the Sink Emulation mode you
do not need to connect any device to the HDMI Tx port. Use the following procedures to select the configuration
mode.
Note: The procedures in this subsection assume that you are capturing data in the Sink Emulation Mode. The
procedures for capturing data in the Pass-Through and Encrypted Link Analyzer mode are provided later in this
User Guide.
To set the 980 link configuration mode:
Ensure that you are sending video from your source device under test.
1.

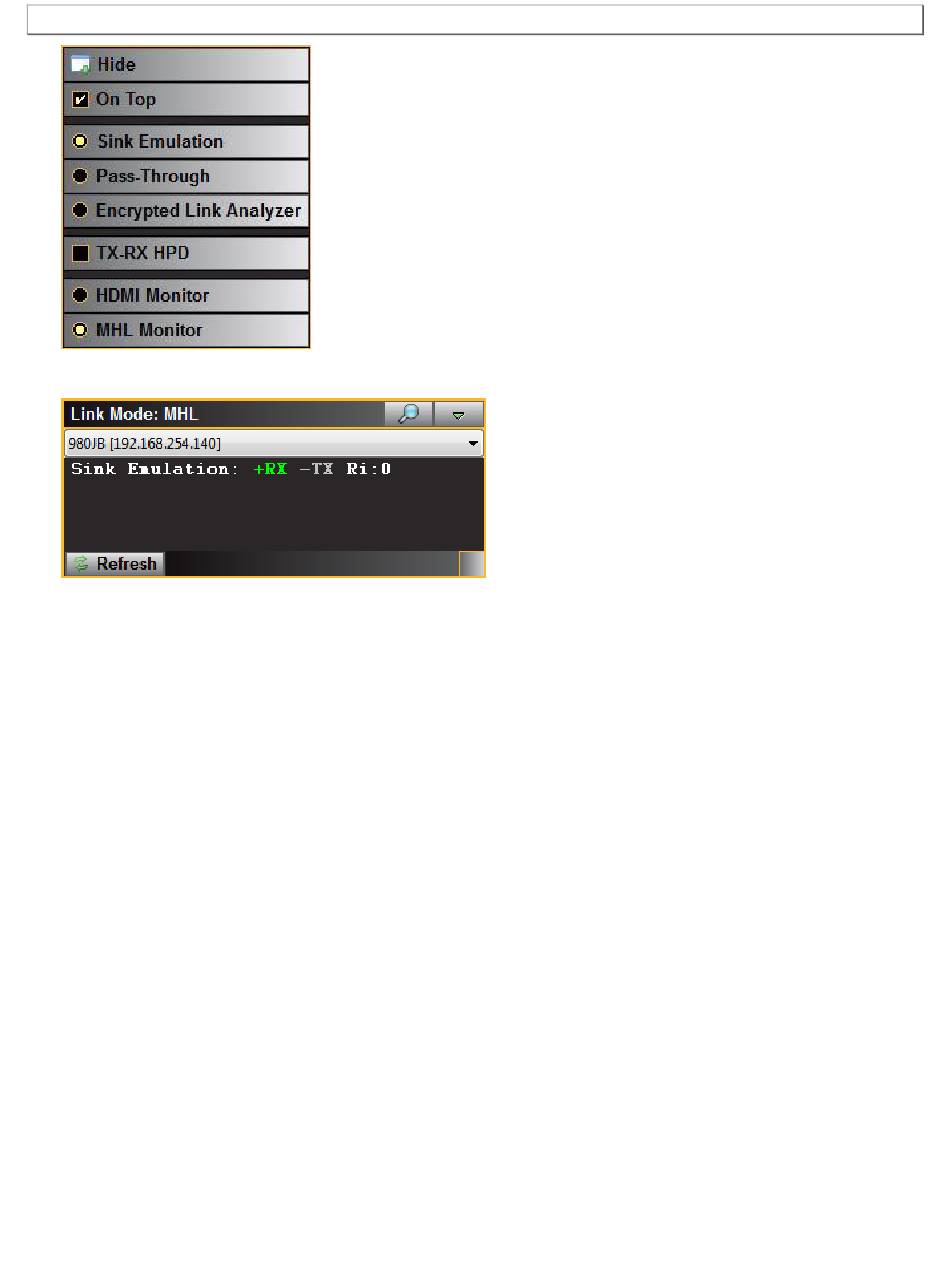

2. Select the configuration of the Link Mode item from the Instrument pull-down menu on the built-in front panel
as shown below.
Page 168
Rev. A1
December 19, 2012
