980 HDMI Protocol Analyzer User Guide

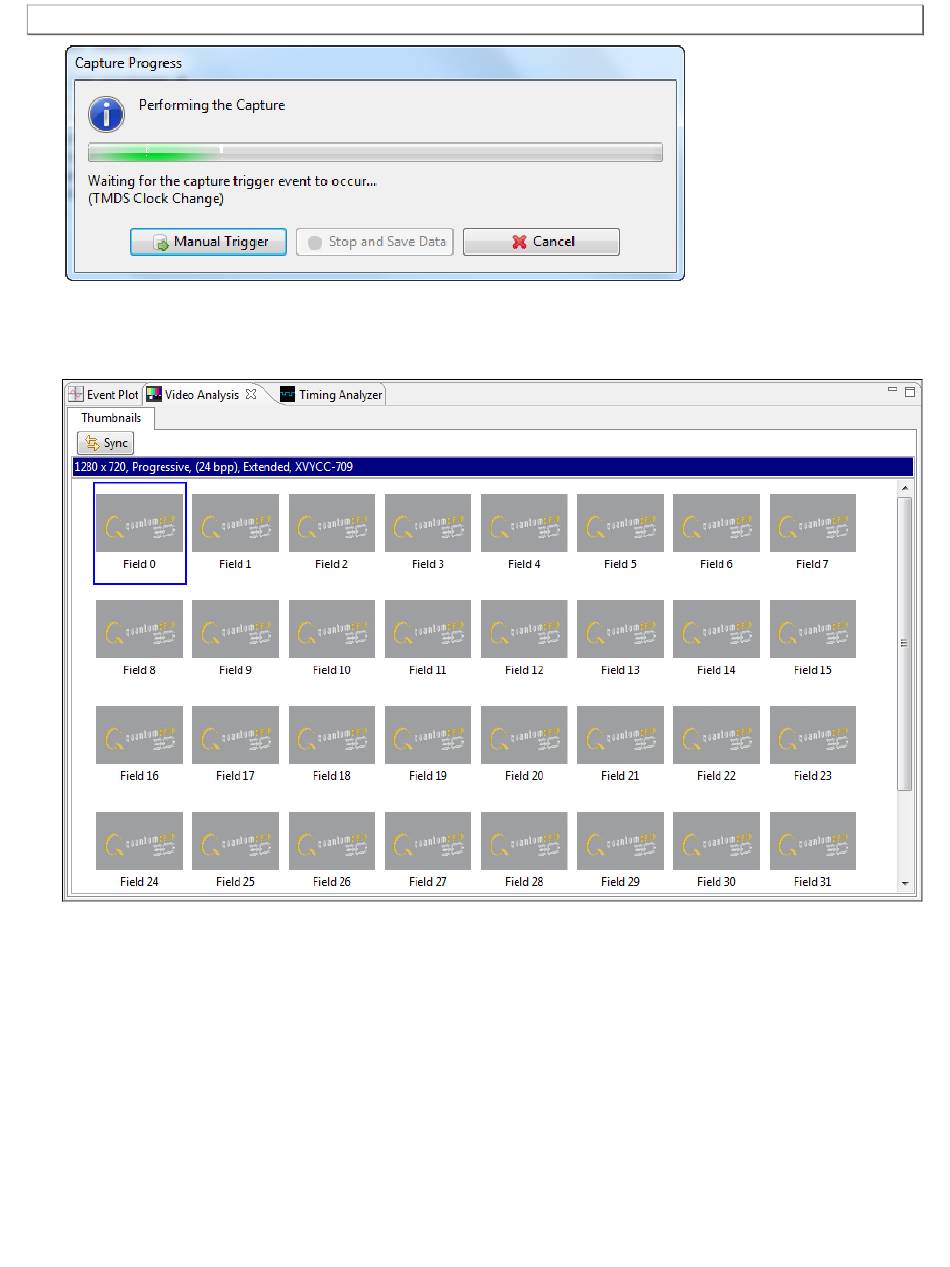

When the 980 Protocol Analyzer is done capturing data you can view the video thumbnails in the Video
Analysis panel. The Video Analysis panel enables you to view the captured video images. It provides
thumbnails of each captured frame.
Note: You cannot view video frames of video that is encrypted with HDCP. The Video Analysis will show blue
thumbnails and the word "Encrypted" will be shown in the upper left corner of the panel as shown below.
