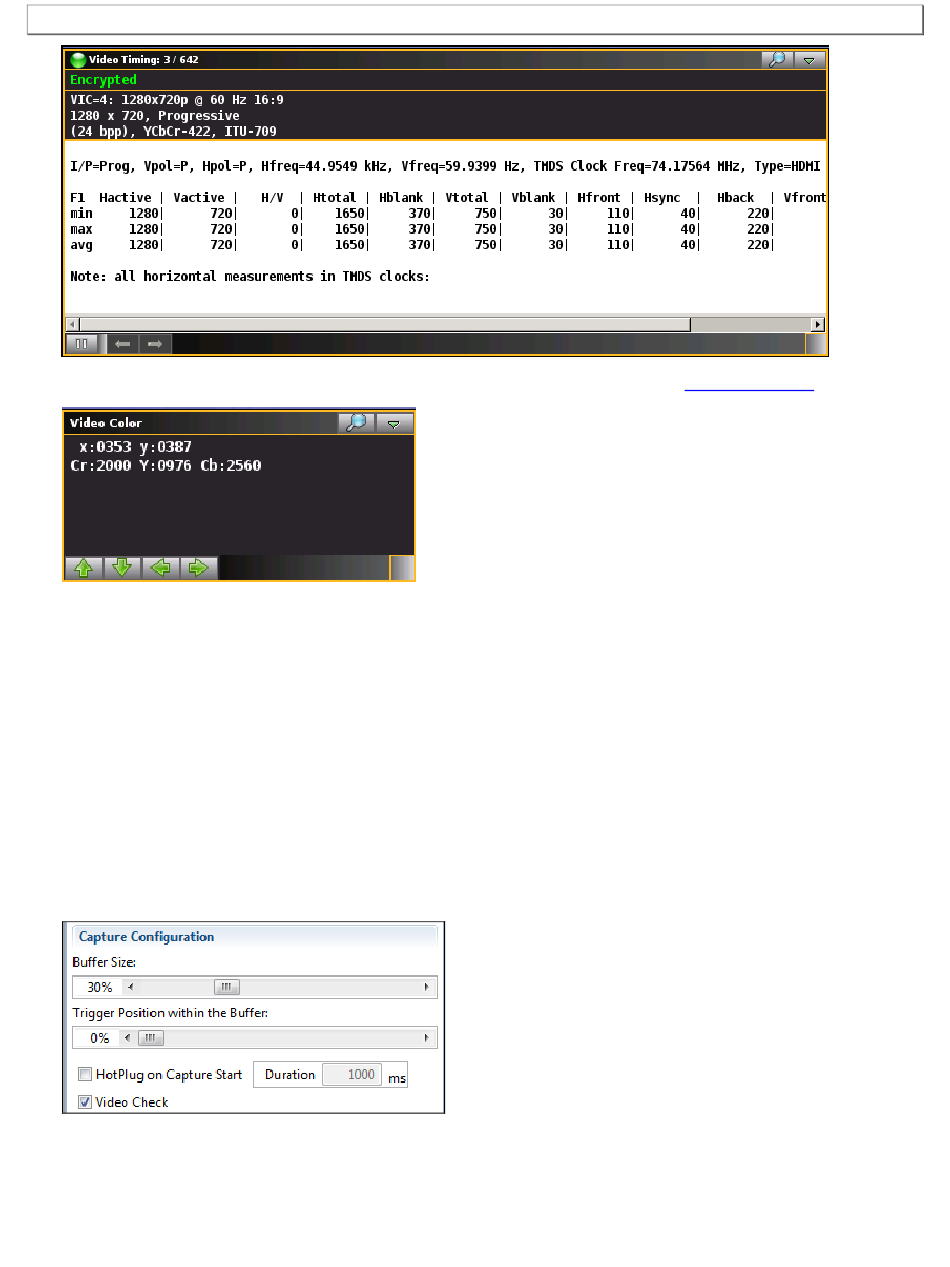

4. Select the Video Color panel to view the video color any pixel. Refer to section
5. Select other panels in accordance with the data you wish to view.
8.9

Using automatic triggering

The 980 provides a variety of automatic triggers available through Capture Control panel. The following procedures
describe how to capture data using these automatic triggers.
To capture data using automatic triggering:
1. (optional) If you are going to be taking some action on the device under test that will halt video, such as
unseating and reseating the HDMI cable, you will need to check the Video Check box in the Capture
Configuration section of the Capture Control dialog box.
2. Check the Generate Hot Plug on Capture Start button if you want the 980 to issue a hot plug to initiate HDCP
authentication. You also need to specify the duration of hot plug pulse in milliseconds.
3. Set the Capture Buffer Size slidebar to a percent value to meet your requirements. You can capture up to
about 2GB of data which is about 1150 frames at 576p/480p and about 204 frames at 1080p which includes
Page 179
Rev. A1
Video Info Panel.
