980 HDMI Protocol Analyzer User Guide

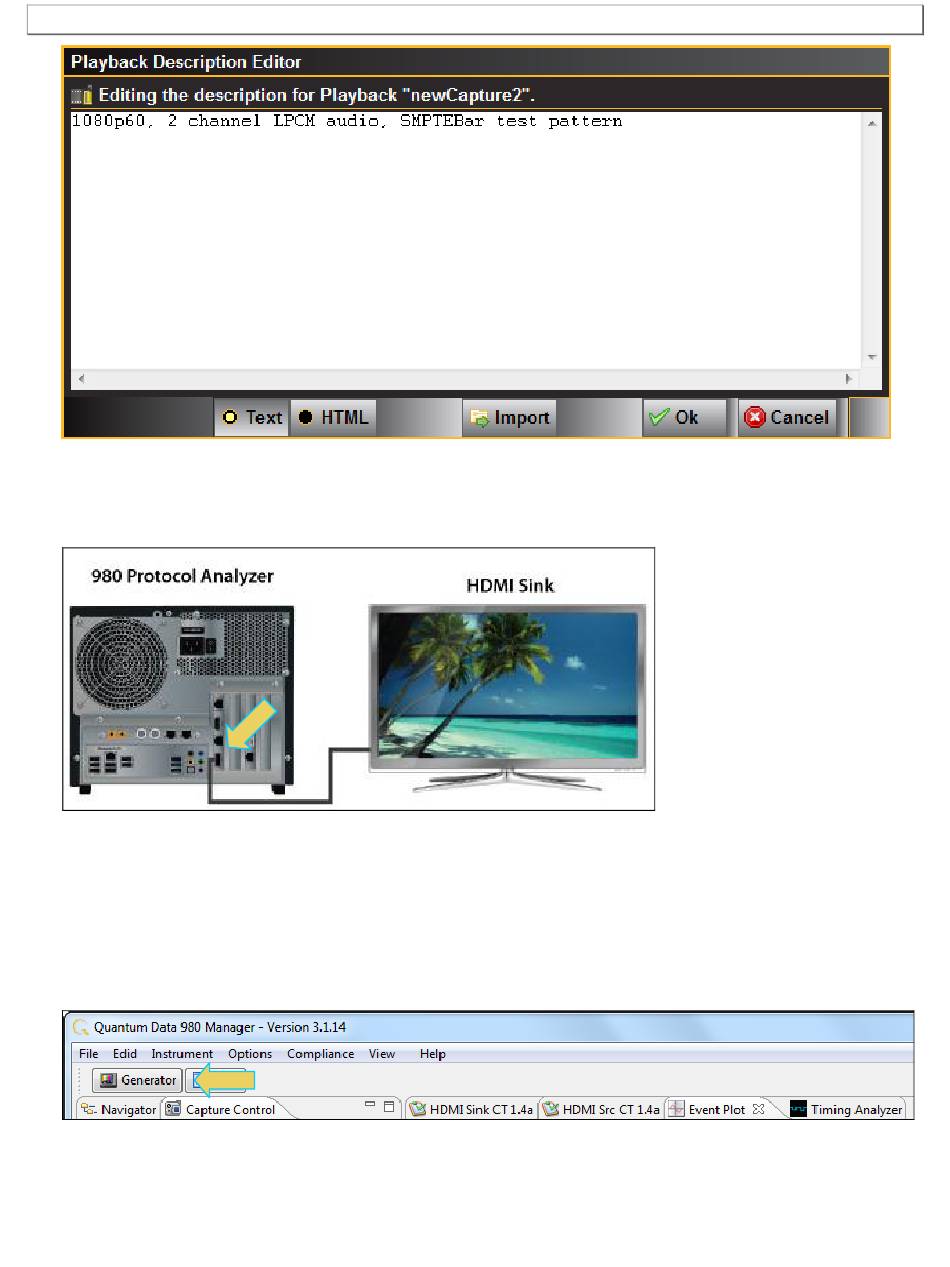

To make physical connections for HDMI playback:
1. Connect the HDMI-to-HDMI cable provided from your HDMI sink device under test to the bottommost HDMI
connector on the back of the 980 HDMI Protocol Analyzer. Refer to the illustration below.
Connection for HDMI Capture-Playback testing
To playback a captured file to an HDMI display:
1. Power up the 980 HDMI Protocol Analyzer using the power rocker switch on the back. Then press the power
on button on the front panel.
2. Access the Playback panel. You access the Generator Playback function through the main screen Generator
icon as indicated below:
You can also access the Generator Playback function through the View pull-down menu:
