980 HDMI Protocol Analyzer User Guide

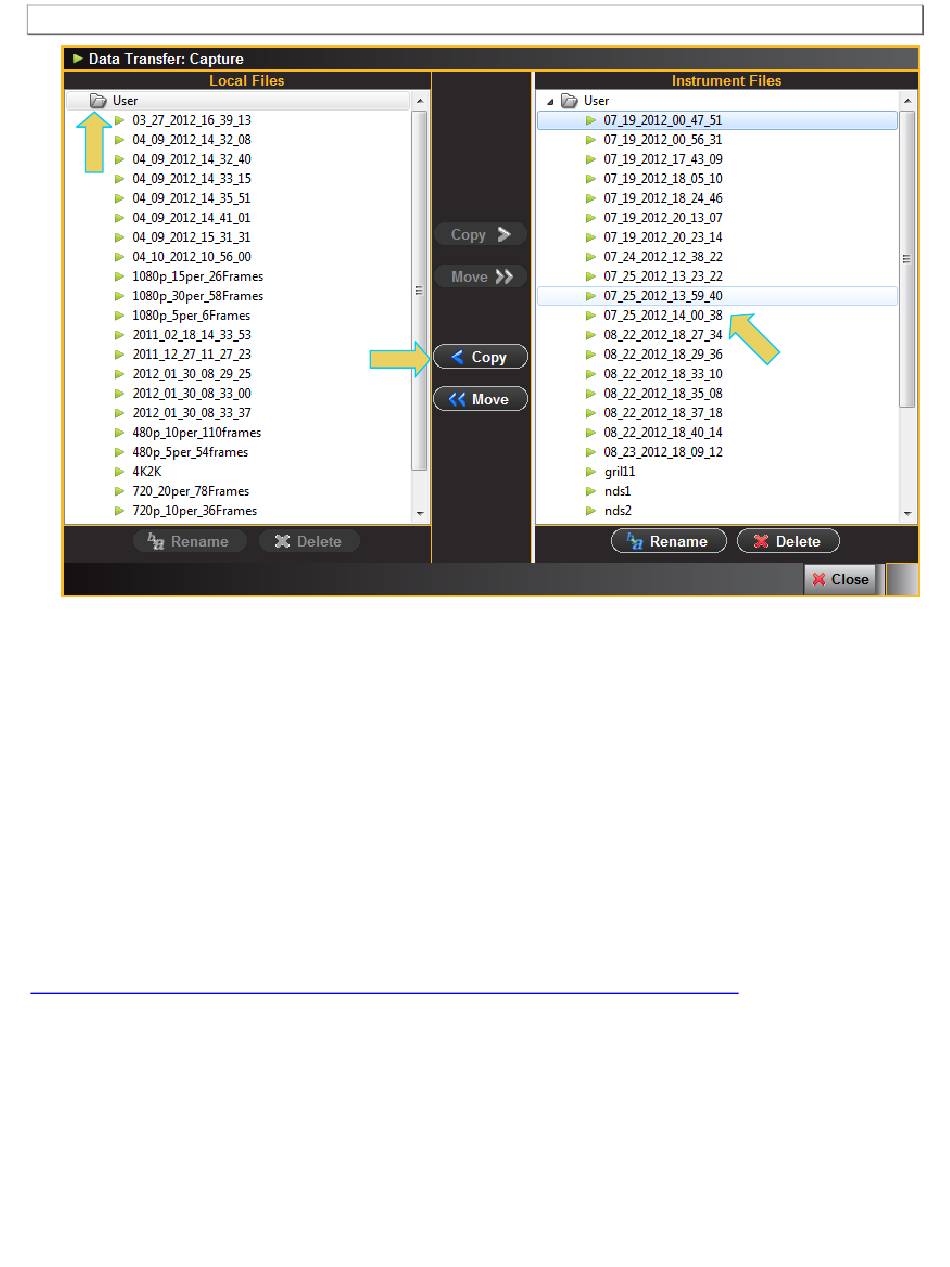

3. Highlight a directory on the Local Files side (host PC) and then initiate a Copy or Move.
The file appears on the PC host Local Files.

12.2 Transferring Capture Files using the command line

If you have initiated captures through the embedded 980 GUI Manager through the built-in touch screen, you can
transfer these capture files to your PC where the external 980 GUI Manager is installed. This enables you to view
the captured data on the external 980 GUI Manager and to disseminate these captures to other colleagues for
additional analysis.
There are three ways you can transfer files from the 980 to the PC. 1) using an FTP utility, 2) using the FTP
command, or 3) saving the files to a USB drive connected to the 980.
Instructions for transferring files using the command line FTP and saving to a USB are provided. Procedures for
transferring the captured files using an FTP utility such as FileZilla are not provided. Please refer to the user
documentation provided with FileZilla. You can download FileZilla at:
https://www.ohloh.net/projects/filezilla/download?filename=FileZilla_3.3.2_win32-setup.exe.
You will need to use the username of qd and the password of qd to login to the 980 in each case.
To transfer capture files using the FTP command:
1. Open up the DOS utility window on your PC.
2. Enter the following command at the prompt:
ftp 192.168.254.237 // where 192.168.254.237 is the IP address of the 980
