3.1.2 Top level menus

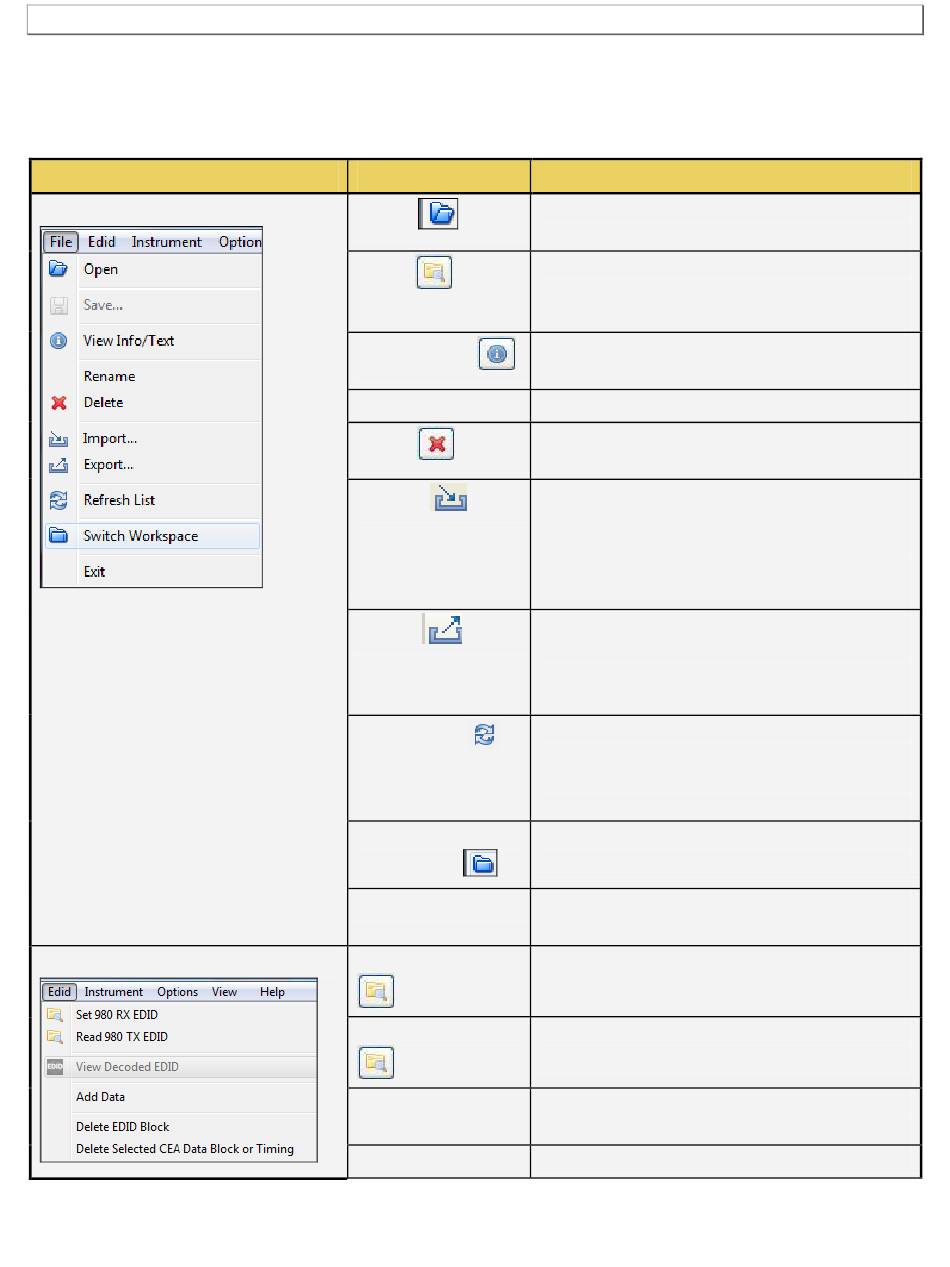

There are a series of top level menus on the 980 GUI Manager. These are described in the following image and
table:
Top Level Menu Items
File
EDID
Page 38
Selection
Open...
Save...
View Info/Text
Rename
Delete
Import...
Export...
Refresh List...
Switch
Workspace...
Exit
Set 980 RX EDID
Read 980 TX EDID
View Decoded EDID
Add Data
Function
Opens a capture in the GUI. You must select a
capture for this option to be available.
Saves the EDID that you have created or
modified using the EDID Management Editor to
the host PC.
Enables you to view the information related to a
capture or EDID in the Navigator/Data view.
Enables you to rename a capture or EDID file.
Enables you to delete a capture or EDID file
from the 980 Manager application.
Enables you to import a file that resides on the
980 Manager host into the 980 Manager
application. This can be a capture, ACA data,
EDID, or any compliance result. The file must
be a zip file.
Enables you to export a file that you have
highlighted in the 980 Manager. The file is
compressed to a zip file. This can be a capture,
ACA data, EDID, or any compliance result.
Enables you to refreshes the list of captures to
remove captures that you have marked for
deletion. Also resets the list to the default
unexploded view.
Browse to store captures in a different capture
directory other than the default.
Enables you to exit out of the 980 Manager
application.
Configures the 980 Rx port with the specified
EDID.
Loads an EDID from the HDMI sink device
connected to the 980 Tx port.
Enables you to view the human readable text of
the selected EDID
Enables you to add an EDID data element such
