Real Time Mode – Dashboard Items

HDCP Status. The next item is HDCP status which could either be Encrypted or Not Encrypted
.

TMDS Mode. The next item is TMDS mode which is either HDMI, DVI

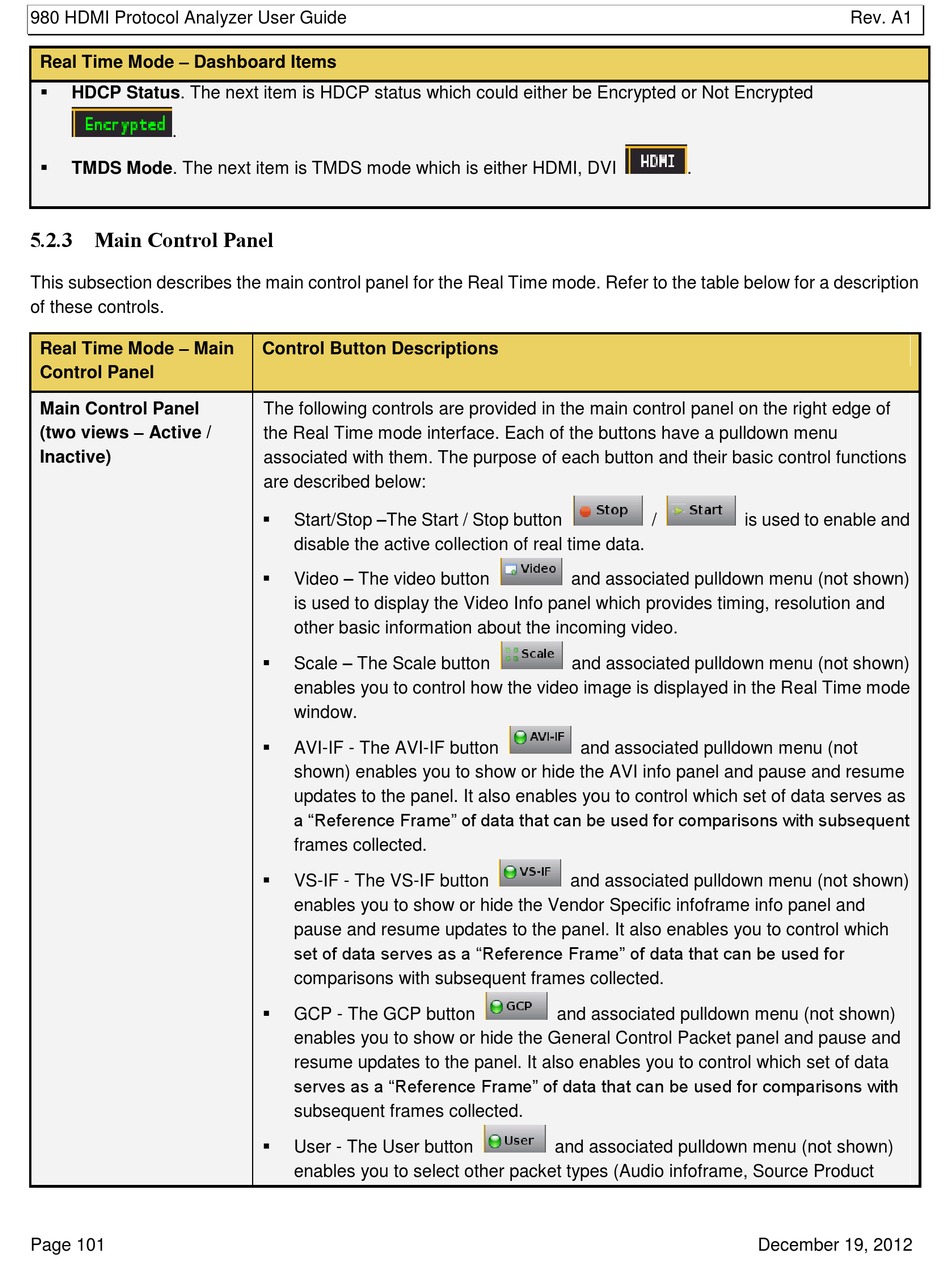

5.2.3 Main Control Panel
This subsection describes the main control panel for the Real Time mode. Refer to the table below for a description
of these controls.
Real Time Mode – Main
Control Panel
Main Control Panel
(two views – Active /
Inactive)
Page 101
Control Button Descriptions
The following controls are provided in the main control panel on the right edge of
the Real Time mode interface. Each of the buttons have a pulldown menu
associated with them. The purpose of each button and their basic control functions
are described below:
 Start/Stop –The Start / Stop button
disable the active collection of real time data.
 Video – The video button
is used to display the Video Info panel which provides timing, resolution and
other basic information about the incoming video.
 Scale – The Scale button
enables you to control how the video image is displayed in the Real Time mode
window.

AVI-IF - The AVI-IF button
shown) enables you to show or hide the AVI info panel and pause and resume
updates to the panel. It also enables you to control which set of data serves as
a "Reference Frame" of data that can be used for comparisons with subsequent
frames collected.

VS-IF - The VS-IF button
enables you to show or hide the Vendor Specific infoframe info panel and
pause and resume updates to the panel. It also enables you to control which
set of data serves as a "Reference Frame" of data that can be used for
comparisons with subsequent frames collected.

GCP - The GCP button
enables you to show or hide the General Control Packet panel and pause and
resume updates to the panel. It also enables you to control which set of data
serves as a "Reference Frame" of data that can be used for comparisons with
subsequent frames collected.

User - The User button
enables you to select other packet types (Audio infoframe, Source Product
.
/
and associated pulldown menu (not shown)
and associated pulldown menu (not shown)
and associated pulldown menu (not
and associated pulldown menu (not shown)
and associated pulldown menu (not shown)
and associated pulldown menu (not shown)
