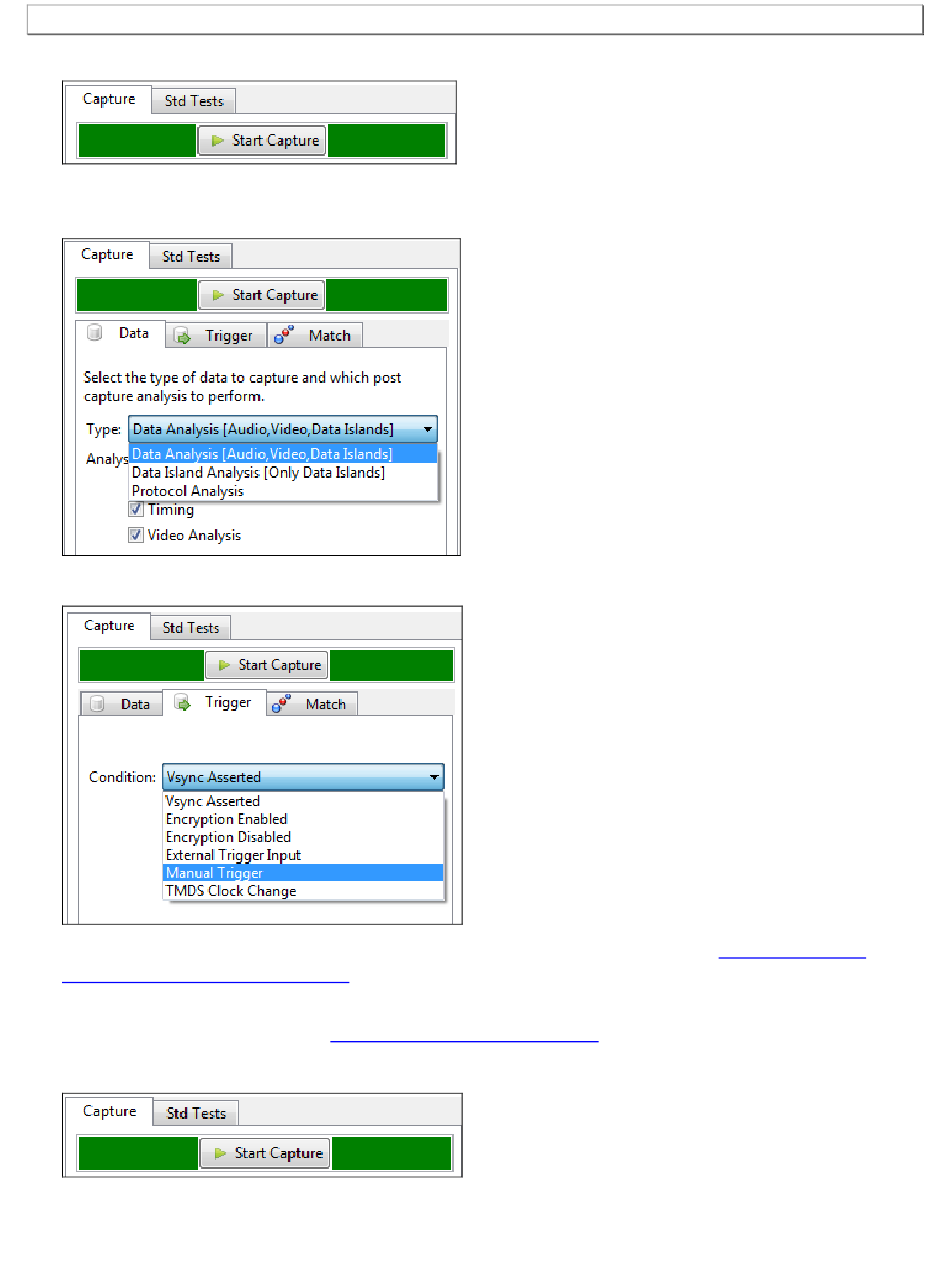

5. Select the Capture tab.
6. Select the Data Selection Type from the pull-down menu provided. Refer to the table above to learn what
each option does.
7. Select the Trigger selection Condition.
Note: If you wish to define a precise trigger using the Match feature, refer to section
Triggering and Pre-Capture Filtering.
8. (optional) Specify the Data Island Match for advanced triggering and pre-capture filtering. Refer to the Panel
Descriptions section in Chapter 2:
9. Click on the Execute Capture button.
