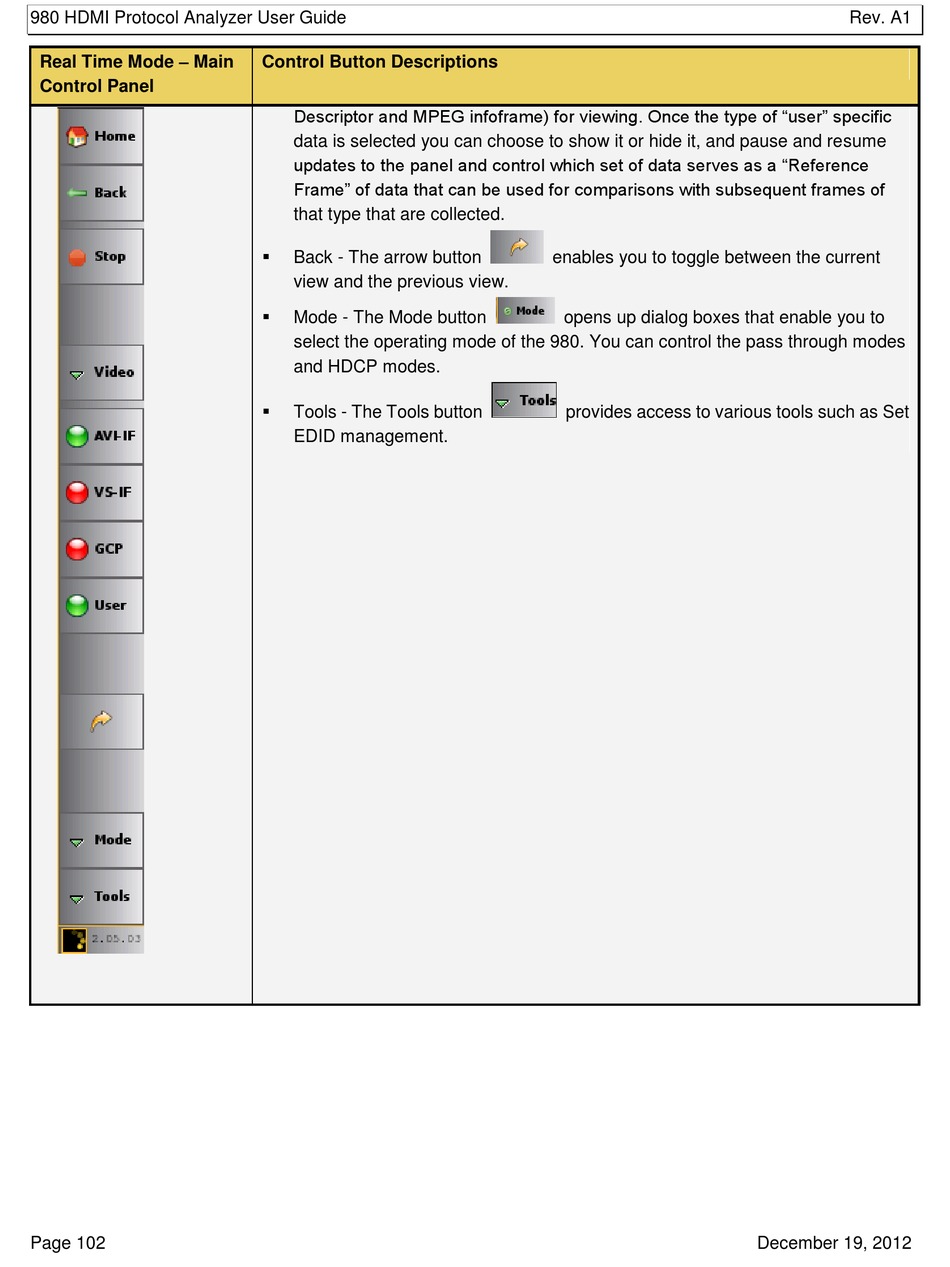

Quantum Data Gen 2 980 User Manual page 102

980 HDMI Protocol Analyzer User Guide
Real Time Mode – Main
Control Panel
Page 102
Control Button Descriptions
Descriptor and MPEG infoframe) for viewing. Once the type of "user" specific
data is selected you can choose to show it or hide it, and pause and resume
updates to the panel and control which set of data serves as a "Reference
Frame" of data that can be used for comparisons with subsequent frames of
that type that are collected.

Back - The arrow button
view and the previous view.

Mode - The Mode button
select the operating mode of the 980. You can control the pass through modes
and HDCP modes.

Tools - The Tools button
EDID management.
enables you to toggle between the current
opens up dialog boxes that enable you to
provides access to various tools such as Set
Rev. A1
December 19, 2012
