980 HDMI Protocol Analyzer User Guide
1. If the Windows-based 980 Manager GUI and the embedded firmware are both being upgraded, you will
need to upgrade the 980 Manager first, and then upgrade the embedded firmware.
2. Be sure to check the release notes associated with the download files. Any special installation instructions
will be noted in the release notes.
3. In some cases if your 980 is not at the most recent version, you may have to first upgrade to the most
current version and then to the new version.
16.1 Workflow for Upgrading 980 Firmware/Gateware
This section describes the workflow of the upgrade process. It is not intended to be a detailed procedure. Please
refer to the Release Notes for detailed upgrade procedures.
Please note that you have to upgrade the 980 GUI Manager before using the GUI Manager to upgrade the 980
firmware and gateware.

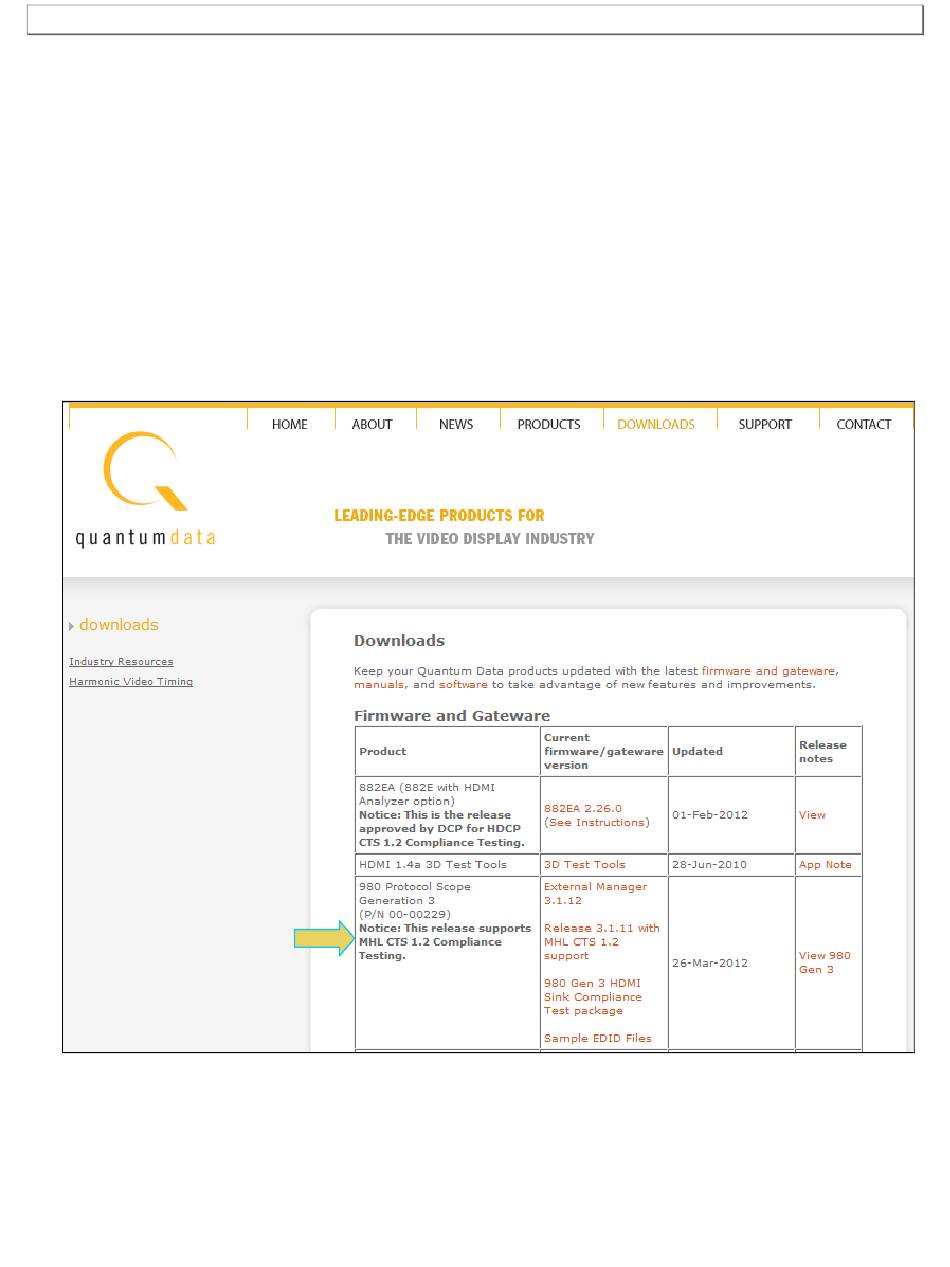

1. Download the GUI Manager and 980 Firmware/Gateware files from the Quantum Data website downloads
page:
2. Upgrade the 980 GUI Manager and restart.
Note: You may receive the following error indicating that you must update the 980 firmware/gateware.
Page 304
Rev. A1
December 19, 2012
