Electra Elite IPK II
___________________________________________________________________________________
___________________________________________________________________________________
System Hardware Manual

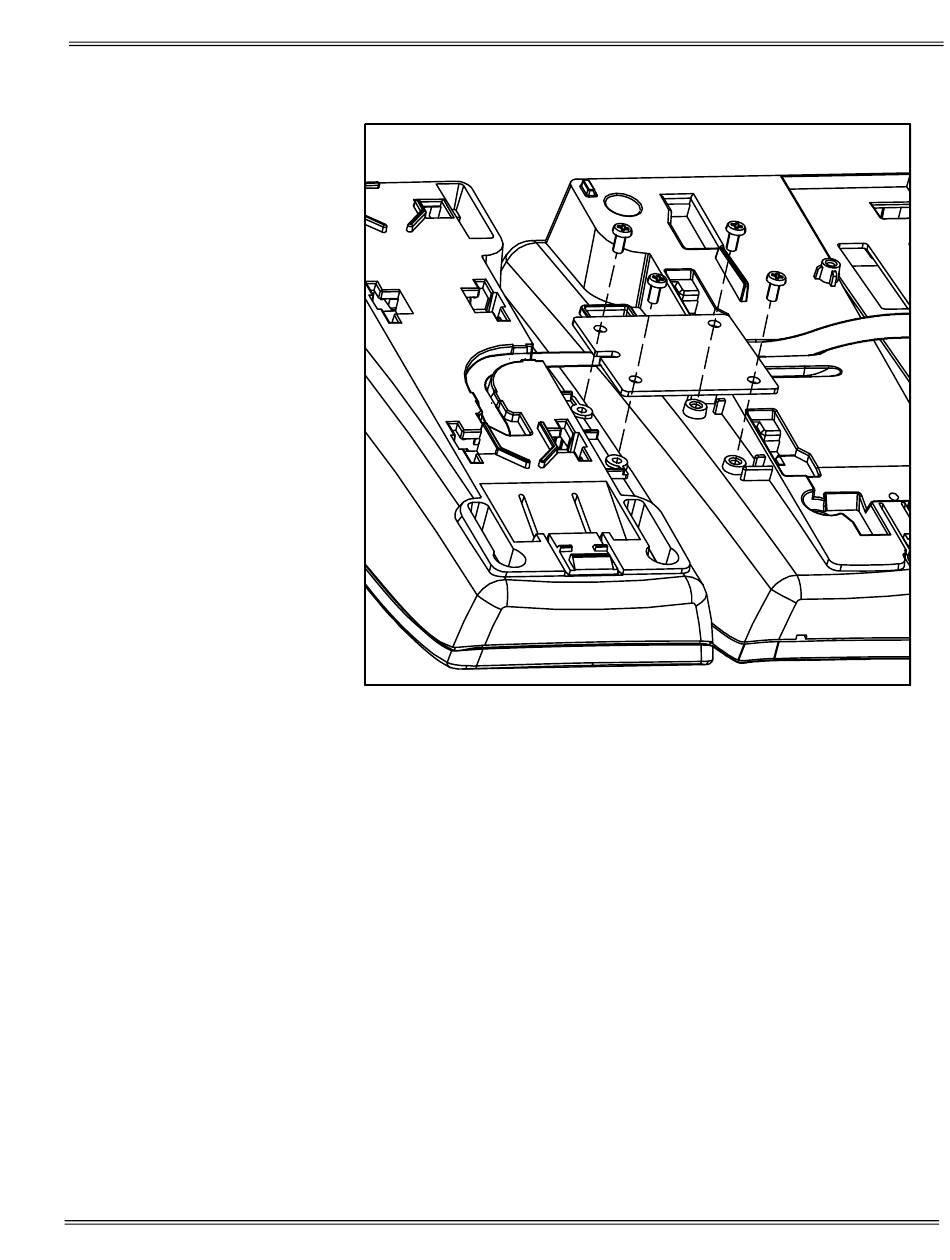

Figure 9-64 Installing the Connector Plate
6. Replace the base units as shown in
Multiline Terminal with Base Covers
3.10.2

Wall Mounting ADM and Multiline Terminal

1. Remove both Base Units.
2. Remove the Multiline Terminal Base Unit cutout shown in
Figure 9-65 Installing Base Units on the
3. Install the base units on the wall using the eight screws.
4. Install the ADM and Multiline Terminal as shown on
ADM and Multiline Terminal with Base Covers
Document Revision 3
Figure 9-63 ADM and
Removed.
Wall.
Figure 9-63
Removed.
9 - 63
