9 - 44
5.
Hook tabs A and B of the PS(A)-R Unit in the grooves and
press down until it seats.
6.
Line up the four tabs of the base stand with the corresponding
slots on the terminal, and slide the stand in the direction of the
arrows until it clicks in place.
Installing Electra Elite IPK II Optional Terminal Equipment

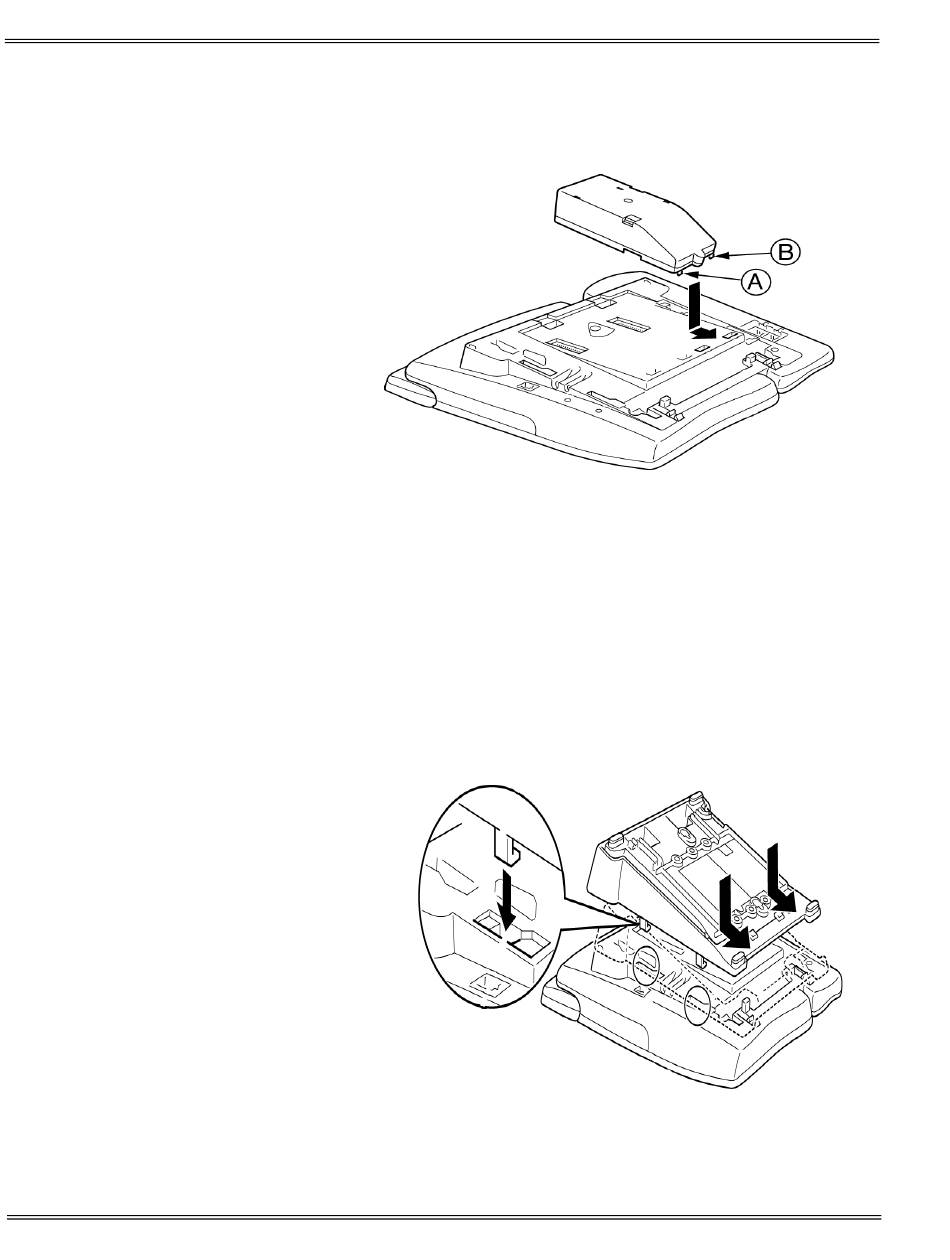

Figure 9-43 Install PS(A)-R Unit
Figure 9-44 Replace Base Stand
Electra Elite IPK II
