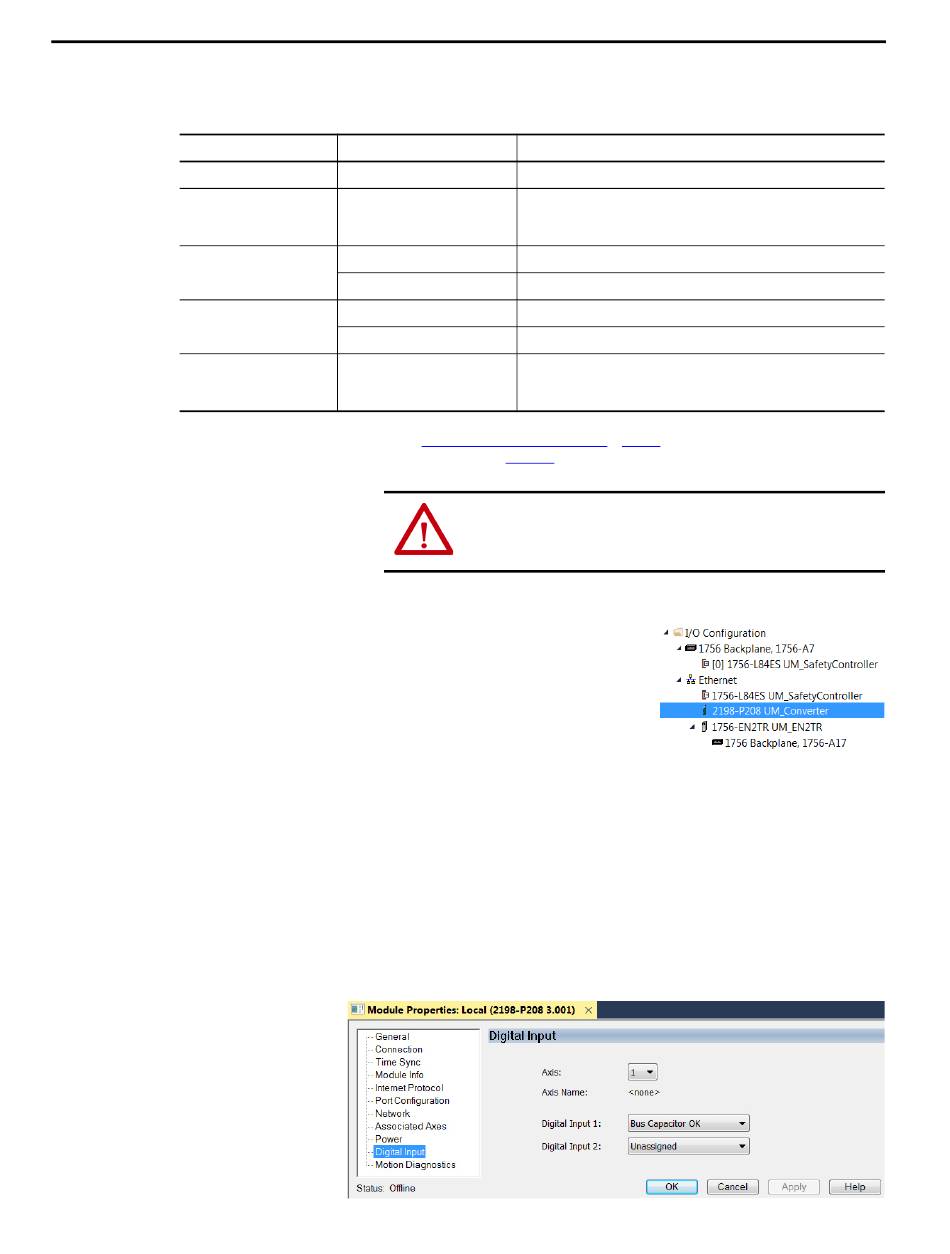

Allen-Bradley Kinetix 5700 User Manual page 205

Attribute Menu
Bus Configuration Shared AC/DC
• Group1
(2)
Bus Sharing Group • Group2
• Group3...
Disabled
Bus Regulator Action
Shunt Regulator
Internal
Shunt Regulator Resistor Type
External
• None
(3)
External Shunt • 2198-R004, 2198-R014
• 2198-R031, 2198-R127
(1) Shared AC/DC bus configuration is the default selection for DC-bus power supplies.
(2) For more information on bus-sharing groups, refer to
(3) Refer to the Kinetix Servo Drives Specifications Technical Data, publication KNX-TD003, for more information on the Bulletin 2198 external passive shunt resistors.
10. Right-click the DC-bus power supply you just created in the Controller
11. Click the Digital Input category.
Rockwell Automation Publication 2198-UM002G-EN-P - February 2019
6. From the pull-down menus, choose the power options appropriate for
your hardware configuration.
Description
(1)
Applies to 2198-Pxxx DC-bus power supply (converter) modules.
Applies to any bus-sharing configuration.
Disables the internal shunt resistor and external shunt option.
Enables the internal and external shunt options.
Enables the internal shunt (external shunt option is disabled).
Enables the external shunt (internal shunt option is disabled).
Selects external shunt option. Only the shunt catalog number intended for
the specific DC-bus power supply is shown.
Understand Bus-sharing Group Configuration
ATTENTION: To avoid damage to equipment all modules physically
connected to the same shared-bus connection system must be part
of the same Bus Sharing Group in the Logix Designer application.
7. Click OK to close the New Module dialog box.
8. Your 2198-Pxxx DC-bus power
supply appears in the Controller
Organizer under the Ethernet
network in the I/O Configuration
folder.
9. Click Close to close the Select Module Type dialog box.
Organizer and choose Properties.
The Module Properties dialog box appears.
TIP To configure the remaining DC-bus power supply properties, you
must close the New Module dialog box and reopen it as the Module
Properties dialog box.
Configure and Start the Kinetix 5700 Drive System
on page 263.
