15.9.1 Automatic Page Switching
Using a VispageSwitch element, you can configure automatic VisTool page changes. For example, to show
parameters for the source in ACCESS in response to the function buttons on a console surface (INP, EQ, DYN,
etc).
There are numerous applications, but they all are programmed in a similar manner:
·
First, using VisTool Editor, design the page or pages which you want to appear on the VisTool displays.
For our example, you could design a page to show input parameters, a page to show EQ parameters,
and so on.
·
Then, using the ON-AIR Designer, configure a "Logic -> VispageSwitch"element to handle the page
switching. Each element may switch any VisTool Editor page (from index 1 to 32) to any screen with a
matching Station Id.
·
Finally, use the VisAdmin "Session Management" window to assign the Station Id to the correct VisTool
screen.

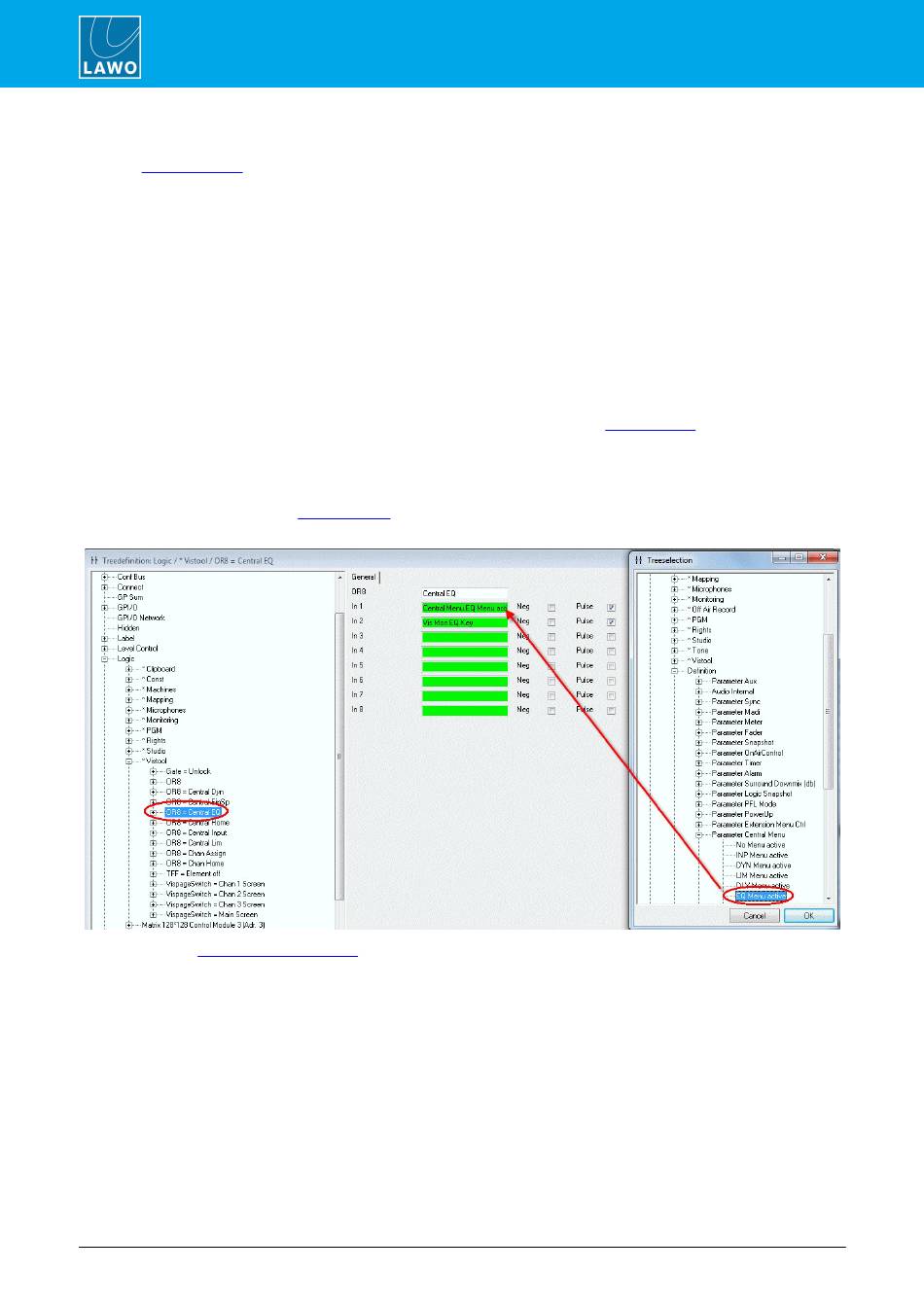

Below is an example of the ON-AIR Designer configuration steps. By using a
be switched either automatically, in response to the function button mode, or manually, when the operator
presses an MF Key:
1. Name the MF Key you wish to use for the manual operation.
2. Create and configure a
EQ) and the operator's MF Key:
3. Create a Logic -> VispageSwitch
unique number.
You will need to enter the Station Id into the VisAdmin -> Session Management window in order to define the
VisTool screen.
