value, linear speed, AC input current. P07.05 and P07.06 can select the parameter to be
displayed or not by bit and 》 /SHIFT can shift the parameters form left to right,
QUICK/JOG(P07.02=2) can shift the parameters from right to left.

5.3.3 Displayed state of fault

If the inverter detects the fault signal, it will enter into the fault pre-alarm displaying state. The
keypad will display the fault code by flicking. The TRIP LED on the keypad is on, and the
fault reset can be operated by theSTOP/RST on the keypad, control terminals or
communication commands.

5.3.4 Displayed state of function codes editing

In the state of stopping, running or fault, press PRG/ESC
there is a password, see P07.00 ).The editing state is displayed on two classes of menu, and
the order is: function code group/function code number→function code parameter, press
DATA/ENT into the displayed state of function parameter. On this state, you can press
DATA/ENT to save the parameters or press PRG/ESC to retreat.

5.4 Keypad operation

Operate the inverter via operation panel. See the detailed structure description of function
codes in the brief diagram of function codes.

5.4.1 How to modify the function codes of the inverter

The inverter has three levels menu, which are:
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)

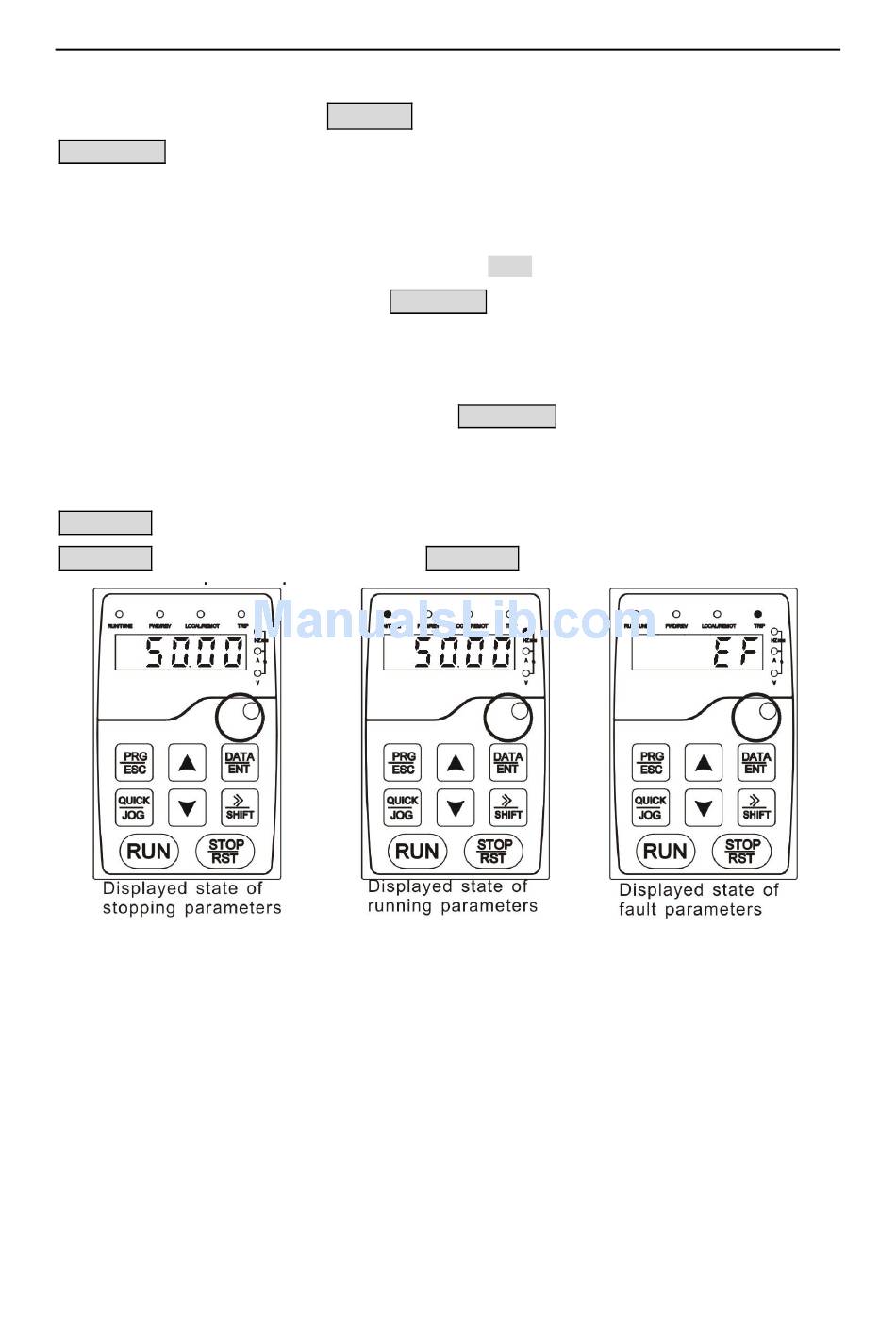

Fig 5-2 Displayed state
44
Keypad operation procedure
to enter into the editing state (if
