inverters
Goodrive300

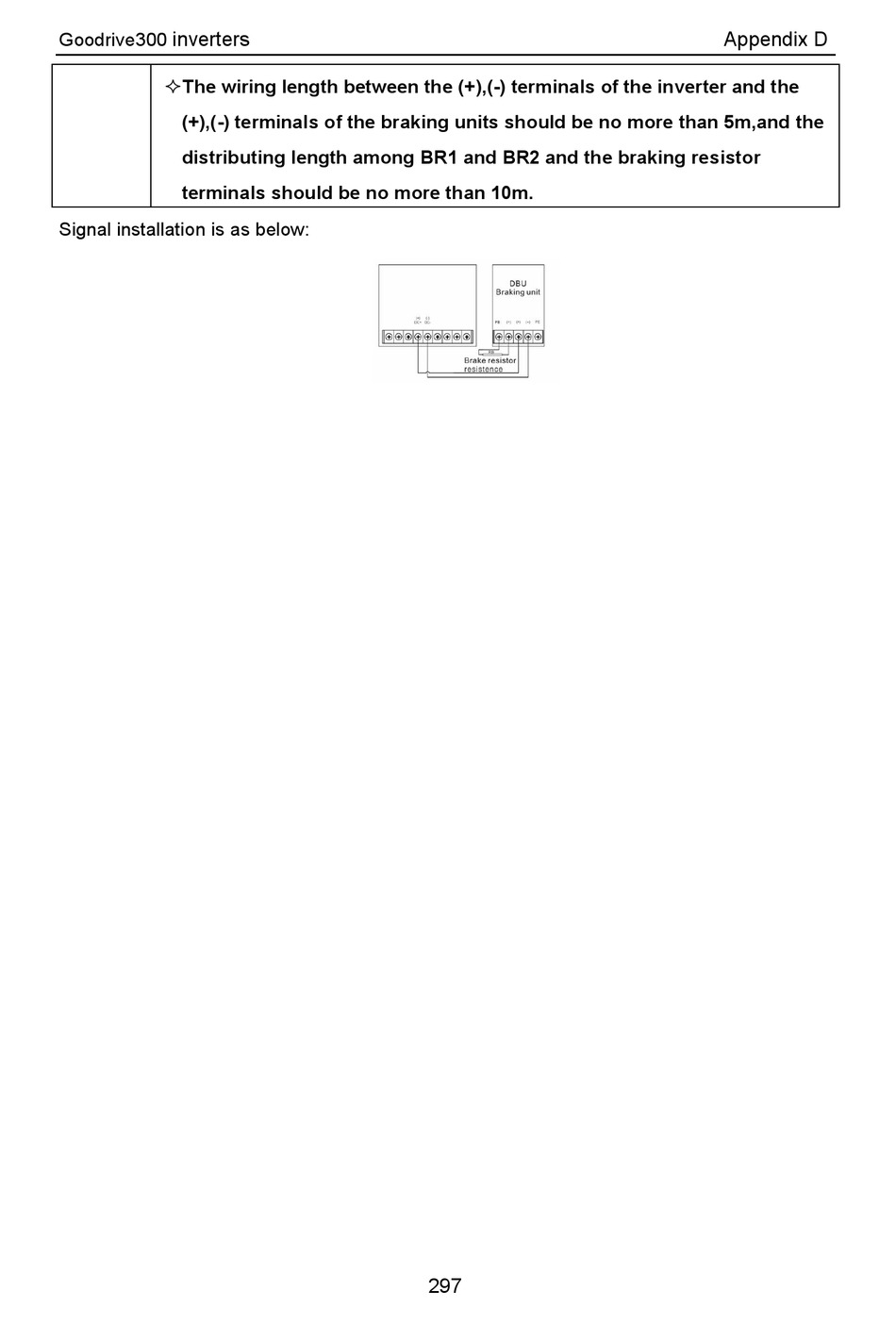

The wiring length between the (+),(-) terminals of the inverter and the
(+),(-) terminals of the braking units should be no more than 5m,and the
distributing length among BR1 and BR2 and the braking resistor
terminals should be no more than 10m.
Signal installation is as below:
297
Appendix D
