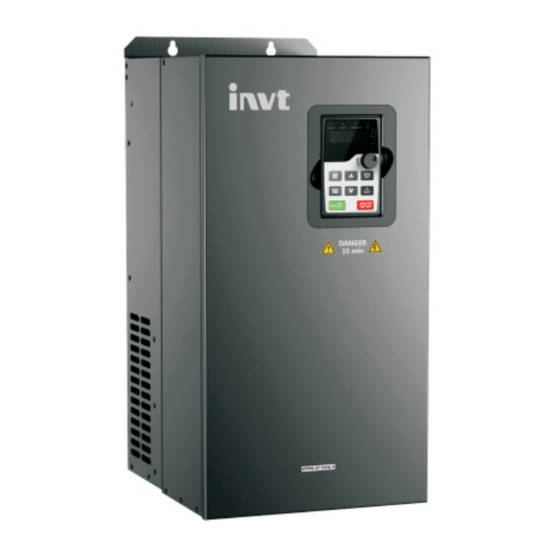

INVT GD300-01-7R5G-4 Operation Manual

Goodrive 300-01 series inver ter for air compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Goodrive 300-01
Series
Inver ter for Air Compressor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD300-01-7R5G-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INVT GD300-01-7R5G-4

Summary of Contents for INVT GD300-01-7R5G-4

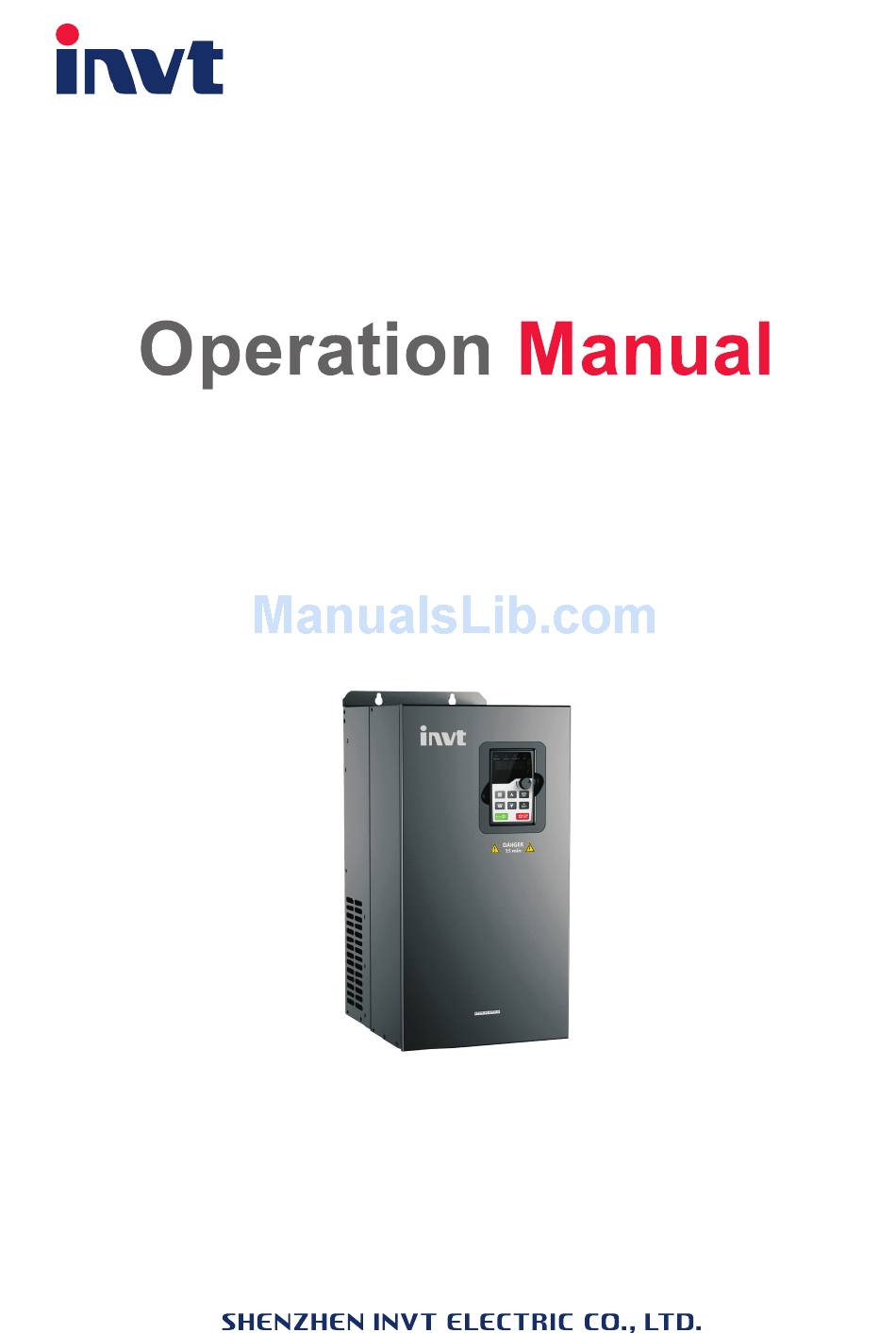

  • Page 1 Goodrive 300-01 Series Inver ter for Air Compressor...

  • Page 2: Preface

    Goodrive300-01 inverter for air compressor Preface Preface Goodrive300-01 series inverter for air compressor is developed based on Goodrive300 hardware platform and can be widely applied in air compressor industry. The inverter is equipped with terminal board to provide abundant external terminals for multiple control modes and support PT100 temperature signal detection.

  • Page 3: Table Of Contents

    Goodrive300-01 inverter for air compressor Content Content Preface ............................1 Content ............................2 Chapter 1 Safety Precautions ......................3 1.1 Contents of this chapter ....................3 1.2 Safety definition ........................ 3 1.3 Warning symbols ......................3 1.4 Safety guidelines ......................4 1.4.1 Delivery and installation ..................

  • Page 4: Chapter 1 Safety Precautions

    Goodrive300-01 inverter for air compressor Safety precautions Chapter 1 Safety Precautions 1.1 Contents of this chapter Please read this manual carefully and follow all safety precautions before moving, installing, operating and servicing the inverter. If ignored, physical injury or death may occur, or damage may occur to the devices.

  • Page 5: Safety Guidelines

    Goodrive300-01 inverter for air compressor Safety precautions 1.4 Safety guidelines  Only qualified electricians are allowed to operate on the inverter.  Do not carry out any wiring, inspection or component replacement when the power supply is applied. Ensure all input power supplies are disconnected before wiring and inspection and always wait for at least the time designated on the inverter or until the DC bus voltage is less than 36V.

  • Page 6: Commissioning And Running

    Goodrive300-01 inverter for air compressor Safety precautions grounding conductor is the same as that of the phase conductor (with the same cross sectional area).  R, S and T are power input terminals, while U, V and W are output motor terminals. Please connect the input power cables and motor cables correctly;...

  • Page 7: Chapter 2 Product Overview

    Goodrive300-01 inverter for air compressor Product overview Chapter 2 Product overview 2.1 Product specification Function Specification Input voltage (V) AC 3PH 380V (-15%)~440V (+10%) Power Input current (A) Refer to the rated value input Input frequency (Hz) 50Hz or 60Hz, allowed range: 47~63Hz Output voltage (V) 0~input voltage Output current (A)

  • Page 8: Nameplate

    Goodrive300-01 inverter for air compressor Product overview Function Specification Provide more than 30 fault protection functions: overcurrent, Fault protection overvoltage, undervoltage, overheating, phase loss and overload, etc. Restart after rotating Smooth starting of the rotating motor speed tracking Terminal analog input <...

  • Page 9: Type Designation Key

    Power range + Load type G—Constant torque load ③ Voltage degree Voltage degree 4: AC 3PH 380V (-15%)~440V (+10%) 2.4 Rated specifications Model Rated output power (kW) Rated input current (A) Rated output current (A) GD300-01-7R5G-4 18.5 GD300-01-011G-4 GD300-01-015G-4 GD300-01-018G-4 18.5 GD300-01-022G-4 GD300-01-030G-4 GD300-01-037G-4...

  • Page 10: Wiring Diagram

    Goodrive300-01 inverter for air compressor Product overview 2.5 Wiring diagram 2.5.1 Terminal arrangement 2.5.2 Terminal instruction Name Instruction RO1A RO1 relay output, RO1A NO, RO1C common terminal Contact capacity: 3A/AC250V, 1A/DC30V RO1C RO2A RO2 relay output, RO2A NO, RO2C common terminal Contact capacity: 3A/AC250V, 1A/DC30V RO2C RO3A...
  • Page 11 Goodrive300-01 inverter for air compressor Product overview Name Instruction Grounding terminal, PE can be short circuited with GND by J6. Please note that PE is not short circuited with GND by default. Provide the input switch working power supply from external to internal Voltage range: 12~24V The inverter provides the power supply for users with a maximum output current 200mA...
  • Page 12 Goodrive300-01 inverter for air compressor Product overview 2.5.3 Wiring diagram -11-...

  • Page 13: Chapter 3 Function Parameters

    Goodrive300-01 inverter for air compressor Function parameters Chapter 3 Function parameters For the convenience of function codes setting, the function group number corresponds to the first level menu, the function code corresponds to the second level menu and the function code corresponds to the third level menu.
  • Page 14 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Note: AM-Asynchronous motor SM-Synchronous motor Select the run command channel of the inverter. The control command of the inverter includes: start-up, stop, forward, reverse, jogging and fault reset.
  • Page 15 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value The setting range: P00.05~P00.03 (Max. output frequency) The lower limit of running frequency is the lower limit of output frequency of the inverter. If the set frequency is lower than the lower limit, the Lower limit of inverter runs at the lower limit.
  • Page 16 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value corresponds to the maximum frequency (P00.03) in reverse direction. Note: The pulse setting can only be input by multi-function input terminals HDI. Set P05.00 (HDI input selection) to high-speed pulse input, and set P05.49 (HDI high-speed pulse input function selection) to frequency setting input.
  • Page 17 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 1: A frequency command 100% of B frequency setting corresponds to the maximum output frequency. Select this setting if it needs to adjust on the base of A frequency command.
  • Page 18 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value the reverse direction. FWD/REV indicator is on. Modify the function code to shift the rotation direction of the motor. This effect equals to the shifting the rotation direction by adjusting either two of the motor lines (U, V and W).
  • Page 19 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value above, too low carrier frequency will cause unstable running, torque decreasing and surge. The manufacturer has set a reasonable carrier frequency when the inverter is in factory. In general, users do not need to change the parameter.
  • Page 20 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value starting frequency after DC braking (set the parameter P01.03 and P01.04). It is suitable in the cases where reverse rotation may occur to the low inertia load during starting.
  • Page 21 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value the inverter. The setting range of P01.03: 0.0~100.0% The setting range of P01.04: 0.00~50.00s The changing mode of the frequency during start-up and running. 0: Linear type The output frequency increases or decreases linearly.
  • Page 22 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value The setting range of P01.09: 0.00Hz~P00.03 (Max. output frequency) The setting range of P01.10: 0.00~50.00s The setting range of P01.11: 0.0~100.0% The setting range of P01.12: 0.00~50.00s During the procedure of switching FWD/REV rotation, set the threshold by P01.14, which is shown as the table below:...
  • Page 23 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value The setting range: 0.00~100.00 (only valid when P01.16=1) When the run commands are controlled by the terminal, the system will detect the state of the running terminal during powering on.
  • Page 24 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value When the set frequency is above the lower limit one again and it lasts for the time set by P01.20, the inverter will run automatically. setting range: 0.0~3600.0s...
  • Page 25 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 1: Output with voltage 2: Output at DC braking current at stopping P02 Group Motor 1 0:Asynchronous motor 1:Synchronous motor ◎ P02.00 Motor type 1 Note: Switch the current motor by the switching channel of P08.31.
  • Page 26 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ Mutual inductance impact on the control Depend P02.09 0.1~6553.5mH of AM1 performance. on model Note: Users should not ○ Non-load current Depend change the parameters of P02.10 0.1~6553.5A...
  • Page 27 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value motor parameters on the name plate. To guarantee the control performance, configure the motor as the standard motor. If the motor power has a Rated current of Depend ◎...
  • Page 28 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value designates the EMF constant E’(V/1000r/min), then: E=E’*n /1000 3. If the name plate does not designate the above parameters, then: E=P/√3*I In the above formulas: is the rated rotation speed, P is the rated power and I is the...
  • Page 29 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value protection coefficient. So, the bigger the value of K is, the smaller the value of M is. When M=116%, the fault will be reported after 1 hour;...
  • Page 30 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value PI参数 (P03.00,P03.01) (P03.03,P03.04) 输出频率f P03.02 P03.05 Setting the proportional coefficient and integral time of the adjustor can change the dynamic response performance of vector control speed loop. Increasing the proportional gain and decreasing the integral time can speed up the dynamic response of the speed loop.
  • Page 31 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value coefficient P parameter of the current loop which affects the dynamic response speed and control accuracy directly. Generally, users do not need to change the default value.
  • Page 32 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value source of REV 6:MODBUS communication rotation in torque 7: Reserved control 8: Reserved 9: Reserved Note: Setting mode 1~9, 100% corresponds to the maximum frequency. Keypad setting for ○...
  • Page 33 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value in constant power zone Flux weakening coefficient of motor Min. flux weakening limit of motor Function code P03.22 and P03.23 are effective at constant power.
  • Page 34 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 0: Straight line V/F curve; apply to the constant torque load 1: Multi-dots V/F curve 2: Torque-stepdown V/F curve (1.3 order) 3: Torque-stepdown V/F curve (1.7 order) 4: Torque-stepdown V/F curve (2.0 order) Curves 2~4 apply to the torque loads such as fans and water pumps.
  • Page 35 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value torque boost is invalid. The setting range of P04.01: 0.0%: (automatic) 0.1%~10.0% The setting range of P04.02: 0.0%~50.0% When P04.00 =1, the user can set V/F curve through ○...
  • Page 36 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value compensation change of the rotation speed caused by load during gain of motor 1 SVPWM control compensation to improve the rigidity of the motor. It can be set to the rated slip frequency of the motor which is counted as below: △f=f -n*p/60...
  • Page 37 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ V/F voltage 3 of P04.21 00.0% motor 2 V/F slip ○ P04.22 compensation 100.0% gain of motor 2 Vibration control ○ factor at low In SVPWM control mode, current fluctuation may P04.23 frequency of motor...
  • Page 38 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ Voltage Voltage increasing time is the time when the inverter P04.29 5.0s increasing time accelerates from the output minimum voltage to the output maximum voltage.
  • Page 39 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 2: Reverse rotation operation (REV) S2 terminals ◎ P05.02 3: 3-wire control operation (Sln) function selection 4: Forward jogging S3 terminals 5: Reverse jogging ◎...
  • Page 40 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 43: Oil filter blockage signal 44: Separator blockage signal 45: Precision separator signal 46: External fault 1 47: External fault 2 48~63: Reserved The function code is used to set the polarity of the input terminals.
  • Page 41 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 1:2-wire control 2; Separate the enable from the direction. FWD defined by this mode is the enabling ones. The direction depends on the state of the defined REV.
  • Page 42 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Direction Forward OFF→ON Reverse Forward OFF→ON Reverse Decelerate ON→OFF to stop Note: for the 2-wire running mode, when FWD/REV terminal is valid, the inverter stop because of the stopping command from other sources, even the control terminal FWD/REV keeps valid;...
  • Page 43 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ Switch-on delay P05.22 0.000s of S5 terminal ○ Switch-off delay P05.23 0.000s of S5 terminal ○ Switch-on delay P05.24 0.000s of S6 terminal ○...
  • Page 44 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ AI2 input filter Input filter time: The parameter is used to adjust the P05.41 0.100s time sensitivity of the analog input. Increasing the value ○...
  • Page 45 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 8: Frequency arrival 9: Zero speed running 10: Upper limit frequency arrival 11: Lower limit frequency arrival 12: Ready for operation 13: Pre-magnetizing 14: Overload pre-alarm 15: Underload pre-alarm 16: Completion of simple PLC stage...
  • Page 46 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ RO4 switch-on P06.08 0.000s delay time ○ RO4 switch-off P06.09 0.000s delay time The setting range: 0.000~50.000s ○ RO1 switch-on P06.10 0.000s delay time ○...
  • Page 47 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Corresponding output. When the output value exceeds the range of ○ P06.18 AO1 output of set maximum or minimum output, it will count 0.00V lower limit according to the low-limit or upper-limit output.
  • Page 48 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value parameter menu. Only correct password can make the user check or modify the parameters. Please remember all user passwords. Retreat the editing state of the function codes and the password protection will become valid in a minute.
  • Page 49 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value clear the set value of UP/DOWN. 5: Coast to stop. Press QUICK/JOG to coast to stop. 6: Shift the reference manner of run commands. Press QUICK/JOG to shift the reference manner.
  • Page 50 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value BIT13: pulse counter value BIT14: length value BIT15: PLC and the current step in multi-step speed 0x0000~0xFFFF BIT0: AI1 (V on) BIT1: AI2 (V on) BIT2: AI3 (V on) Parameters BIT3: HDI frequency...
  • Page 51 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value module temperature ● Converter module P07.12 -20.0~120.0° C temperature ● P07.13 Software version 1.00~655.35 Local ● P07.14 accumulative 0~65535h running time ● High bit of power Display the power used by the inverter P07.15 consumption...
  • Page 52 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ● Previous 3 fault 5: OC2 P07.30 type 6: OC3 ● 7: OV1 Previous 4 fault P07.31 8: OV2 type 9: OV3 10: UV 11: Motor overload (OL1) 12: Inverter overload (OL2) 13: Input side phase loss (SPI)
  • Page 53 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ● P07.40 Output terminals state at current fault ● P07.41 Running frequency at previous fault 0.00Hz ● P07.42 Ramp reference frequency at previous fault 0.00Hz ●...
  • Page 54 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value inverter goes from P0.03 to 0Hz. on model Setting range: 0.0~3600.0s ○ Jumping When the set frequency is in the range of jumping P08.09 0.00Hz frequency 1...
  • Page 55 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value time-out period Maintenance time-out function will be ineffective if it is set to “0” ● Range of display: 0~120℃ PT100 on the terminal board is used for detecting P08.24 Motor temp motor temp value.
  • Page 56 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 0x00~0x14 FDT1 electrical When output frequency exceeds ○ P08.32 level detection corresponding frequency of FDT electrical level, the 50.00Hz value multi-function digital output terminals will output the signal of “frequency degree test FDT”...
  • Page 57 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value This parameter is used to control the internal braking pipe inside the inverter. ○ Energy braking P08.37 0: Disabled enable 1: Enabled Note: Only apply to internal braking pipe. After setting the original bus voltage to brake the 380V energy, adjust the voltage appropriately to brake the...
  • Page 58 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 1: Only ∧/∨ keys adjustment is valid 2: Only digital potentiometer adjustment is valid 3: Neither ∧/∨ keys nor digital potentiometer adjustment is valid LED tens: frequency control selection 0: Only valid when P00.06=0 or P00.07=0 1: Valid for all frequency setting manners...
  • Page 59 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value frequency changing ratio 0x000~0x111 LED ones: action selection when power off in digital setting 0: Save when power off 1: Clear when power off LED tens: action selection when power off in ○...
  • Page 60 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value flux braking, while the cooling of the stator is more effective than the rotor. This function code is used to adjust the displayed ○...
  • Page 61 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 5: Reserved 6: Reserved 7: Reserved 8: Special pressure feedback for air compressor Note: The reference and feedback channels cannot coincide; otherwise, PID cannot control effectively.
  • Page 62 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value the adjustment of integral adjustor (ignoring the proportional and differential effect) is the maximum output frequency (P00.03) or the maximum voltage (P04.31). Longer the integral time, stronger the adjustment.
  • Page 63 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Setting range of P09.11: 0.0~100.0% Setting range of P09.12: 0.0~3600.0s 0x00~0x11 LED ones: 0: Keep on integral adjustment when the frequency reaches the upper and low limit; the integration shows the change between the reference and feedback unless it reaches the internal integral limit.
  • Page 64 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 0: Input phase loss protection disabled 1: Input phase loss protection enabled LED tens: 0: Output phase loss protection disabled 1: Output phase loss protection enabled LED hundreds: 0: Input phase loss hardware protection disabled 1: Input phase loss hardware protection enabled...
  • Page 65 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ 120~150% (standard bus voltage) (220V) 120% Voltage protection P11.04 of overvoltage 120~150% (standard bus voltage) (380V) 130% stall 120~150% (standard bus voltage) (660V) 120% The actual increasing ratio of motor speed is lower than that of output frequency because of the big load...
  • Page 66 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Setting range of P11.06: 50.0~200.0% Setting range of P11.07: 0.00~50.00Hz/s Overload The output current of the inverter or the motor is ○ P11.08 pre-alarm of above P11.09 and the lasting time is beyond P11.10, 0x000...
  • Page 67 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value detection level inverter will output underload pre-alarm. Setting range of P11.11: 0~P11.09 Underload ○ Setting range of P11.12: 0.1~3600.0s P11.12 pre-alarm 1.0s detection time Select the action of fault output terminals during undervoltage and automatic reset.
  • Page 68 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value P12.01~P12.05 correctly on model according to the name plate Rated voltage of Depend ◎ P12.04 0~1200V of the motor. on model The accuracy of parameter autotuning for Goodrive300-01 inverters depends on correct setting of...
  • Page 69 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value AM2 iron core Magnetic saturation ◎ P12.13 0.0~100.0% 57.0% coefficient 3 of AM2 iron core Magnetic saturation ◎ P12.14 0.0~100.0% 40.0% coefficient 4 of AM2 iron core Rated power of Set the parameters of the...
  • Page 70 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value ○ Quadrature axis performance vector control, Depend P12.22 0.01~655.35mH inductance of SM2 the parameters have a direct on model impact on the control When P00.15=2, the performance.
  • Page 71 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value current of SM2 0:No protection Motor 2 overload 1: Common motor (with low speed compensation) ◎ P12.26 protection 2: Variable frequency motor (without low speed compensation) Times of motor overload M=Iout/(In*K) In is the rated current of the motor, Iout is the output...
  • Page 72 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Source current is the positioning current of the magnetic pole position. Source current 1 is valid ○ under the frequency point of current shifting. P13.02 Source current 1 20.0% Increasing the value can raise the starting torque.
  • Page 73 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Braking retention circuit braking. ○ P13.14 time before When the running frequency is lower than P01.09 0.00s starting during the stopping of the inverter, set 13.15 to a non-zero value to enter into stopping short circuited braking and then carry out the DC braking at the time set by P01.12 (refer to the instruction of...
  • Page 74 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 0: No check (N, 8, 1) for RTU 1: Even check (E, 8, 1) for RTU 2: Odd check (O, 8, 1) for RTU 3: No check (N, 8, 2) for RTU 4: Even check (E, 8, 2) for RTU 5: Odd check(O, 8, 2) for RTU...
  • Page 75 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value LED tens: 0: Communication encrypting invalid 1: Communication encrypting valid P17 Group Monitoring function ● Display current set frequency of the inverter P17.00 Set frequency 0.00Hz Range: 0.00Hz~P00.03...
  • Page 76 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Display current switch input terminals state of the ● Digital input P17.12 inverter terminals state Range: 0000~00FF Display current switch output terminals state of the ●...

  • Page 77: Specific Function Parameters

    Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value The percentage of the rated torque of the relative ● ASR controller P17.28 motor, display ASR controller output 0.0% output Range: -300.0%~300.0% (motor rated current) ●...
  • Page 78 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value 0: Invalid ◎ P18.01 Sleep function 1: Sleep mode 1 2: Sleep mode 2 0X00~0X11 LED ones: 0: Automatic 1: Manual In manual mode, the air compressor is loaded and Load and unload ◎...
  • Page 79 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value stable running. P18.12~P00.04 (upper limit of running frequency) Lower limit of ○ During adjusting, allow to output the minimum P18.11 loading running 40.00Hz running frequency when the pressure is above the frequency set pressure and below the unloading pressure.
  • Page 80 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value Counting period of ○ P18.23 PID temperature 0.0~10.0s 2.0s (Ts) ○ Gain coefficient 18.0 P18.24 0.0~100.0 (Kp) ○ Convergence 0.12 P18.25 0.00~1.00 coefficient (K) ○...
  • Page 81 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value maintenance of Pre-alarm when the accumulated service time of component 4 component 4 exceeds the set value; pre-alarm is invalid when the set value=0. 0~65535h Set time for ●...
  • Page 82 Goodrive300-01 inverter for air compressor Function parameters Function Default Modif Name Detailed instruction of parameters code value alarm, 0: normal BIT12: pressure signal, 1: pressure signal fault, 0: normal BIT13: temperature signal, 1: temperature signal fault, 0: normal BIT14: low temperature protection, 1: low temperature alarm, 0: normal BIT15: master state, 1: run, 0: stop BIT0: tip for maintenance of component 1, 1: need...

  • Page 83: Chapter 4 Commissioning Guidelines

    Goodrive300-01 inverter for air compressor Commissioning guidelines Chapter 4 Commissioning guidelines 4.1 Commissioning procedures for integrated system 4.1.1 Master inverter commissioning 1. Connect the wires according to the wiring diagram of the system. Before commissioning, disconnect 24V power of the touch screen. Then ensure that the wiring is correct and the ground wires are in good connection (including the grounding of the inverter and the cover).
  • Page 84 Goodrive300-01 inverter for air compressor Commissioning guidelines temperature sensor and whether the fan variable frequency starts, and press “one-click setting parameters”. The system will finish related configuration automatically. 3. Refer to the touch screen manual, adjust the parameters of the user, factory and maintenance for following running.
  • Page 85 Goodrive300-01 inverter for air compressor Commissioning guidelines E-stop Air filter blocked Fan inverter RO1A Master inverter Oil filter blocked Auxiliary power module GD10/GD100 RO1C GD300-01 Separator blocked PP100 Fine separator blocked External fault signal Voltage phase sequence detection signal Master inverter 485+ 485+...

  • Page 86: Appendix A Communication Protocol

    Goodrive300-01 inverter for air compressor Communication protocol Appendix A Communication protocol A.1 Application mode of the inverter The Modbus protocol adopted by this inverter is RTU mode and the network line is RS485. A.1.1 RS485 RS485 interface works on semiduplex and its data signal applies differential transmission which is called balance transmission, too.
  • Page 87 Goodrive300-01 inverter for air compressor Communication protocol The address of function code occupies 2 bytes with the high bit is in the front and the low bit in behind. The range of high and low byte is: high byte—00~ffH; low byte—00~ffH. The high byte is the group number before the radix point of the function code and the low byte is the number after the radix point.
  • Page 88 Goodrive300-01 inverter for air compressor Communication protocol Address Function instruction Data meaning instruction definition characteristic 100.0% of the rated current of the motor) Special control command word Bit0~1:=00:motor 1 =01:motor 2 =10:motor 3 =11:motor 4 Bit2:=1 torque control =0: speed control Bit3: =1 power consumption clear 2009H =0: do not clear power...
  • Page 89 Goodrive300-01 inverter for air compressor Communication protocol Address Function instruction Data meaning instruction definition characteristic =0: invalid BIT6=1 Solenoid valve loading =0: Solenoid valve unloading The set time for maintenance on part 1; 2010H range: 0~65535 The set time for maintenance on part 2; 2011H range: 0~65535 The set time for maintenance on part 3;...

  • Page 90: A.2.5 Fault Message Response

    Goodrive300-01 inverter for air compressor Communication protocol Address Function instruction Data meaning instruction definition characteristic inverter Operation frequency 3000H Setting frequency 3001H Bus voltage 3002H Output voltage 3003H Output current 3004H Operation speed 3005H Output power 3006H Output torque 3007H Close loop setting 3008H Close loop feedback...
  • Page 91 Goodrive300-01 inverter for air compressor Communication protocol Code Name Meaning slave. Note: This error code does not indicate the data value to write exceed the range, but indicate the message frame is an illegal frame. The parameter setting in parameter writing is invalid. For example, Operation failed the function input terminal cannot be set repeatedly.

  • Page 92: Appendix B Common Emc Problems And Remedies

    Goodrive300-01 inverter for air compressor Common EMC problems and remedies Appendix B Common EMC problems and remedies B.1 Interference problems of meter switches and sensors Interference phenomena: The sensor signal (pressure, temperature, displacement, etc) is collected and displayed via HMI device, the sensor value displayed after inverter starts is wrong, the common errors are listed as below: ...

  • Page 93: B.3 Unable To Stop Or Indicator Shimmering Caused By Coupling Of Motor Cable

    Goodrive300-01 inverter for air compressor Common EMC problems and remedies  In multi-machine application, the connection of inverter communication cables should adopt chrysanthemum mode to improve anti-interference ability;  In multi-machine application, it is necessary to confirm that the drive capacity of the master is strong enough;...

  • Page 94: B.5 Problem Of Charged Device Shell

    Goodrive300-01 inverter for air compressor Common EMC problems and remedies How to select RCD: Due to the specialty of inverter system, it is required that the rated residual operating current should be above 200mA for regular RCDs at all levels, and the inverter must be grounded with proper technics.
  • Page 95 Goodrive300-01 inverter for air compressor Common EMC problems and remedies Solution: If there is distribution grounding or ground pile on site, grounding the shell of inverter cabinet by power GND or ground pile; If there is no ground connection on site, it is necessary to electrically connect the motor shell with grounding terminal PE of the inverter and confirm that the jumper in “EMC/J10”...
